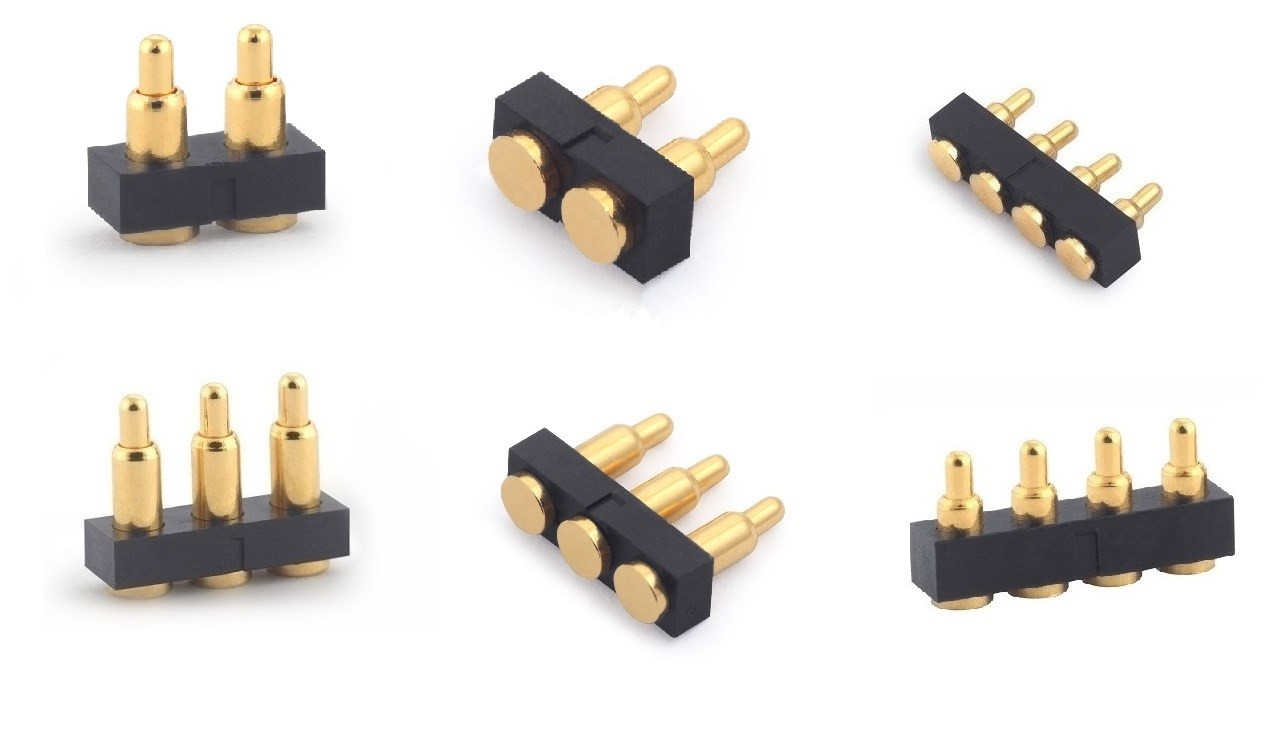

Dab tsi yog qhov zoo ntawm pogopin pogo pin connectors?
Lub pogopin connector tau loj dua thiab loj dua hauv kev ua lag luam, thiab kev sib tw hnyav. Nws tuaj yeem pom tias pogopin connector yog nrov heev. Nws yog ib qho khoom siv me me, tab sis nws ua lub luag haujlwm zoo thiab siv dav. Txawm li cas los xij, muaj ob peb hom ntawm nws, thiab txhua hom muaj nws tus kheej zoo. Tom ntej no, tus editor los ntawm Jingcheng Kev Lag Luam yuav qhia koj seb hom pogopin connectors tuaj yeem muab faib ua li cas thiab lawv cov txiaj ntsig zoo li cas:
1. FPC pogo pin connector
FPC pogo pin connector yog siv rau kev sib txuas ntawm LCD zaub screen thiab tsav tsheb (PCB). Tam sim no, {{0}}.4mm suab cov khoom siv feem ntau yog siv, thiab 0.3mm suab khoom kuj tau siv dav. Nrog rau cov qauv tsis ntev los no ntawm LCD tsav tsheb tau muab tso rau hauv cov khoom siv LCD, tus naj npawb ntawm cov pins ntawm FPC yuav raug txo kom raws li, thiab cov khoom muaj feem xyuam tau tshwm sim hauv khw. Los ntawm qhov kev xav ntev ntev, yav tom ntej, FPC pogo pin connector yuav tsum tau ua ke nrog lwm lub xov tooj ntawm tes ntawm tus ncej ntawm lub xov tooj ntawm tes lossis nws cov LCD module.
2. Board-to-board pogo pin connector
Txoj kev loj hlob ntawm board-to-board pogo pin connectors nyob rau hauv lub xov tooj ntawm tes yog hais tias tus pin suab thiab qhov siab tau txais me thiab me. Tam sim no, lub suab tseem ceeb yog 0.4mm, thiab nws yuav maj mam nce mus rau 0.35mm los yog me dua. Cov kev xav tau tom ntej yog qhov siab qis dua thiab tiv thaiv qhov cuam tshuam. Tib lub sijhawm, qhov siab ntawm BTB (board-to-board pogo pin connector) maj mam txo mus rau 0.9mm.
3. I/O pogo pin connector
I/O pogo pin connector yog ib qho tseem ceeb tshaj plaws hauv thiab tawm hauv xov tooj ntawm tes, suav nrog kev sib txuas ntawm cov khoom siv hluav taws xob thiab teeb liab. Kev txo cov ntim thiab cov khoom tsim qauv yuav yog cov lus qhia tseem ceeb ntawm kev txhim kho yav tom ntej. Tam sim no, ncig thiab MiniUSB pogo pin connectors tau siv ntau dua. Micro USB pogo pin connectors rau cov xov tooj ntawm tes tau maj mam dhau los ua qauv thiab tsim nyob rau hauv kev txhawb nqa ntawm European Union thiab GSM Association. Lub lag luam tseem ceeb tam sim no yog 5pin vim tias txhua lub tuam txhab xov tooj ntawm tes muaj nws tus kheej Hauv xyoo 2012, cov teb chaws txawv teb chaws feem ntau yuav siv MicroUSB ua tus qauv sib txuas rau kev them nyiaj, Nokia, Moto Thiab cov tuam txhab xov tooj ntawm tes xws li SEMC tau pib ua ntau yam. Tom qab ntawd, lub connector yuav tsum tau thinner, nrog rau kev pom kev thiab dej tsis zoo.
4. daim npav pogo pin connector
Daim npav hom pogo pin connectors yog 6pin SIM card pogo pin connectors thiab T-flash pogo pin connectors. Cov kev taw qhia kev loj hlob yav tom ntej yog tsuas yog los txhim kho cov kev tiv thaiv kev ua haujlwm thiab thickness ntawm SIM daim npav pogo pin connectors, ncav cuag qhov tsawg kawg nkaus ntawm 0.50 Lub thickness ultra-low ntawm mm, thiab daim card pogo pin connector khoom yog taw qhia rau ntau yam. -kev txhim kho kev ua haujlwm, thiab kev sib txuas ntawm SIM daim npav pogo tus pin txuas ntxiv rau T-flash pogo tus pin connector tau tshwm sim hauv khw.
5. Roj teeb pogo pin connector
Roj teeb pogo pin connectors tuaj yeem muab faib ua hom shrapnel thiab hom guillotine. Cov kev sib txawv ntawm cov roj teeb pogo pin connectors feem ntau yog miniaturization, lub roj teeb tshiab interface, tsis tshua muaj kev sib cuag, thiab kev sib txuas siab.
6. Lub koob yees duab Socket pogo pin connector
Lub koob yees duab Socket pogo pin connectors yog dav siv nyob rau hauv txawv teb chaws manufacturers xws li Nokia. Lub koob yees duab Socket pogo pin connectors tuaj yeem muab cov khoom siv hluav taws xob zoo rau lub koob yees duab module, uas yooj yim rau kev saib xyuas lub koob yees duab module. Standardization thiab customization yuav coexist rau ib lub sij hawm. Nyob rau tib lub sijhawm, nyob rau hauv cov txheej txheem ntawm kev tsim khoom thiab kev soj ntsuam ntawm lub xov tooj ntawm tes pogo pin connectors, cov kev cai rau ntsaws tsis kam thiab electromagnetic compatibility ntawm cov khoom txuas tau raug txhim kho.
