Reflow Soldering thiab Wave Soldering hauv Pogo Pin Project
Feem ntau, Pogo Pin connectors siv ob txoj kev soldering: reflow soldering thiab yoj soldering.
Reflow soldering yog hais txog kev txhuam cov nplaum nplaum rau ntawm qhov chaw ntawm cov ntaub (hu rau cov ntaub qhwv) ntawm PCB board. Tom qab txuas ib lossis ntau cov khoom siv hluav taws xob, cov khoom siv hluav taws xob yog ua los ntawm cua sov hauv qhov cub ntau qhov kub thiab txias kom ua tiav kev sib txuas ruaj khov.
Niaj hnub no cov khoom siv hluav taws xob digital tau txhim kho nyob rau hauv kev coj ntawm ultra-me, ultra-nplua, thiab ultra-nyias. Qhov chaw tsim qauv sab hauv tau dhau los ua ntau thiab ntau dua, PCB board tsim layout yog ntau thiab ntau compact, cov khoom siv davhlau ya nyob twg tau hloov kho sai thiab sai dua, thiab cov khoom muag tau nce. Nws tau nce siab dua, thiab yoj soldering thiab tes soldering tsis tuaj yeem ua tau raws li nws txoj kev loj hlob. Tsuas yog los ntawm kev siv thev naus laus zis reflow soldering tuaj yeem ua tau siab-precision, high-efficiency, thiab zoo SMT thaj ntau lawm. Pogo Pin connectors yog dav siv nyob rau hauv cov neeg siv khoom siv hluav taws xob cov khoom siv hluav taws xob thiab cov khoom siv hluav taws xob vim lawv qhov me me, lub neej siab, loj tam sim no, zoo nkauj tsos, thiab yooj yim qauv tsim rau engineers tsim.
Pogo Pin connectors muaj nyob rau hauv ob txoj kev:

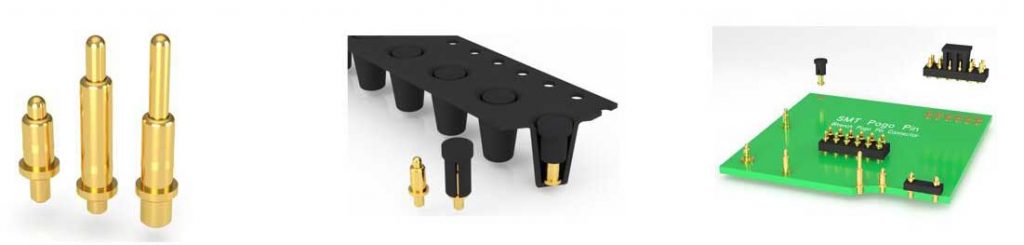

Thawj yog hom tiaj tiaj-hauv qab, uas yog mounted rau saum npoo ntawm PCB ncoo. Peb hu nws SMT nto mount technology, raws li qhia hauv qab no:

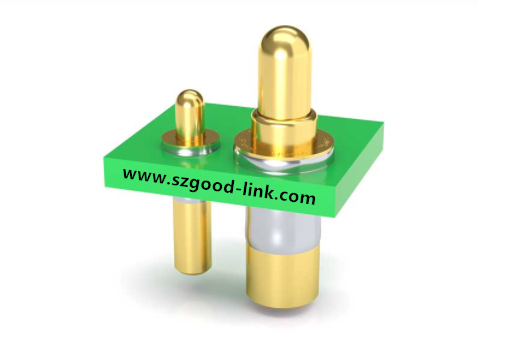

Qhov thib ob yog tus pin nrog tus Tsov tus tw ntxig rau hauv PCB board qhov thaj vuam, peb hu nws plug-in SMT thaj vuam, uas kuj yog hom reflow soldering. Lub hom phiaj ntawm kev siv txoj kev no yog los txhim kho lub zog tuav ntawm cov khoom. Nws yog ruaj khov dua rau PCB pawg thawj coj saib. Raws li qhia hauv qab no:
2. Wave soldering
Wave soldering yog txheej txheem ntawm cov khoom sib txuas nrog cov molten solder tsim cov yoj yoj crests. Qhov no txoj kev ntawm soldering yuav tsum xub muab cov pins ntawm cov khoom rau hauv lub qhov ntawm PCB. Wave soldering yog tsim rau hnyav-lub luag hauj lwm plug-in pin hluav taws xob Cheebtsam, tab sis tsis yog rau nws tus kheej-qhov hnyav hluav taws xob Cheebtsam. Lub teeb heev thiab pinless soldering ntawm SMD cov khoom siv hluav taws xob.
