Nov yog tsab xov xwm hais txog pogo pin connectors:
Pogo Pin Connectors: Ib qho kev daws teeb meem rau kev sib txuas hluav taws xob
Pogo pin connectors, tseem hu ua lub caij nplooj ntoos hlav-loaded connectors, yog ib hom hluav taws xob txuas uas siv lub caij nplooj ntoos hlav-loaded pins los ua kev sib cuag thiab ua tiav ib lub voj voog. Lawv feem ntau yog siv rau hauv cov khoom siv hluav taws xob thiab cov khoom siv sim uas xav tau kev sib txuas kom ntseeg tau uas tuaj yeem sib txuas tau yooj yim thiab tsis sib haum.
Yuav Ua Li Cas Pogo Pins Ua Haujlwm

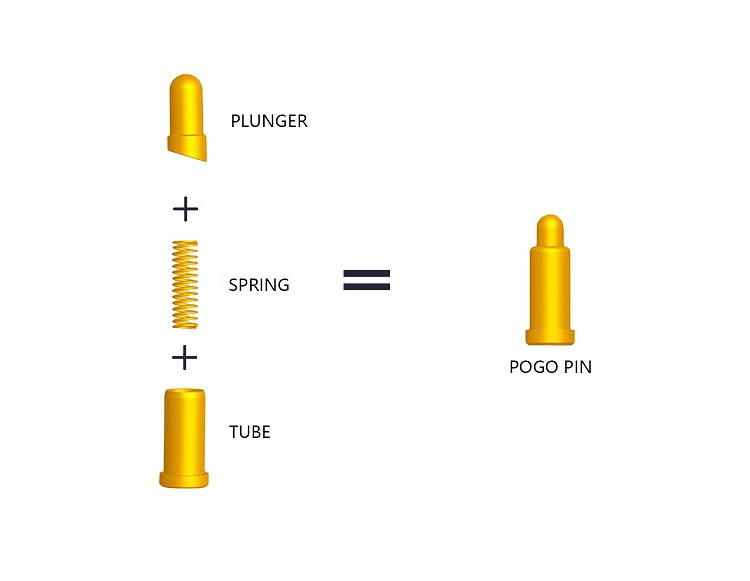

Ib tug pogo pin muaj ib tug conductive ncej nrog lub caij nplooj ntoos hlav nyob rau hauv. Lub taub hau yog plated nrog cov khoom siv hluav taws xob zoo li kub tshaj npib tsib xee los tiv thaiv corrosion thiab txhim kho conductivity. Lub caij nplooj ntoos hlav muab lub "thaws" uas muab pogo pins lawv lub npe, muab los ntawm Pogo tus cwj pwm tas luav uas dhia ntawm pogo stick.
Thaum tus pin pogo nias rau ntawm lub ncoo lossis tus pin ntawm lub rooj tsav xwm hauv Circuit Court, lub caij nplooj ntoos hlav compresses, thiab cov lus qhia ua rau kev sib cuag. Lub caij nplooj ntoos hlav tawm dag zog tas li kom muaj kev sib txuas txhim khu kev qha thaum tseem tso cai rau qee qhov kev hloov pauv hauv kev ua phooj ywg qhov siab lossis kev sib luag. Thaum unmated, lub caij nplooj ntoos hlav retracts thiab rub lub ntsis kom zoo zoo rov qab rau hauv tus pin vaj tse.
Cov txiaj ntsig ntawm Pogo Pins
Pogo pins muaj ntau yam zoo dua lwm hom connector:
- Tsawg tiv thaiv vim kub plating thiab lub caij nplooj ntoos hlav siab
- Tsis tas yuav manually ua phooj ywg / tsis sib txuas
- Ua siab ntev ntawm av, roj, thiab lwm yam kab mob
- Muaj peev xwm them rau me ntsis misalignment ntawm mating nto
- Lub neej ua haujlwm ntev nrog kev hnav tsawg heev tom qab rov ua dua mating
- Kev tsim qauv yooj yim uas tsis muaj qhov sib cais los yog cov txheej txheem kaw
Daim ntawv thov
Qee cov ntawv thov uas siv pogo pin connectors suav nrog:
- Kev sim cov khoom siv uas yuav tsum tau ua kom muaj kev sib txuas ib ntus rau cov rooj sib tham hauv Circuit Court
- Programmers rau prototyping thiab tsawg-ntim ntau lawm
- Roj teeb tiv tauj hauv cov neeg siv khoom siv
- Cov kev sojntsuam siv rau kev kuaj hauv Circuit Court thiab debugging

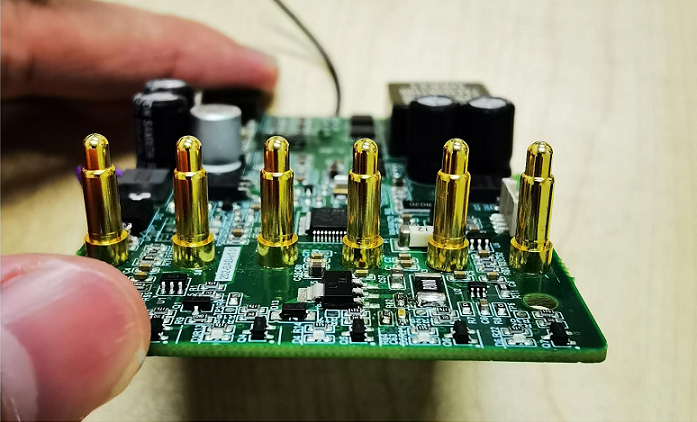

- Kev sib txuas ntawm PCBs hauv cov khoom siv hluav taws xob uas cov boards yuav tsum tau hloov pauv hloov kho lossis kho dua tshiab
Pogo pins muab ntau yam kev daws teeb meem thiab txhim khu kev qha rau ob qho tib si kev sib txuas hluav taws xob ib ntus thiab ib nrab mus tas li thoob plaws ntau yam kev siv. Lawv lub caij nplooj ntoos hlav-loaded tsim absorbs variation thiab withstands rov mating cycles, ua rau lawv zoo haum rau prototyping, kuaj, thiab kev pab cuam daim ntawv thov.
