The Basic Design concept,Plunger design, thiabUa haujlwm siab ntawm Pogo Pin
Lub tswv yim tsim qauv ntawm Pogo Pin (lub caij nplooj ntoos hlav-loaded connector):
Cov yam ntxwv ntawm hluav taws xob yuav nquag nrhiav txoj hauv kev nrog qhov tsawg kawg nkaus tiv thaiv kev ua haujlwm tam sim no, qhov xwm txheej zoo tshaj plaws
Tam sim no yuav ua los ntawm rab koob mus rau phab ntsa ntawm lub raj sab nraud thiab tom qab ntawd mus rau PCB. Lub sijhawm no, tus nqi kuj yog qhov tsawg tshaj plaws.

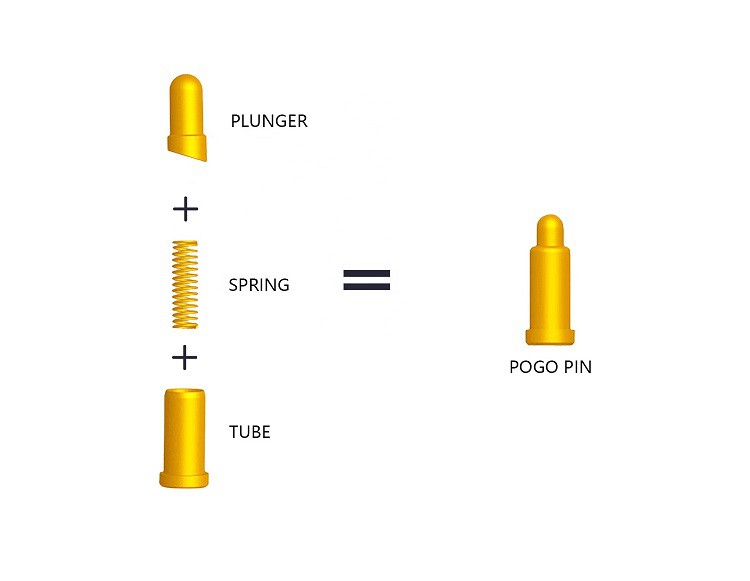

Qhov yooj yim plunger tsim ntawm Pogo Pin (Spring-loaded connector):
Bias Tail
Bias Tail tsim yog qhov ntau tshaj plaws thiab pheej yig tshaj plaws los tsim nrog qhov sib npaug zoo ntawm kev ua tau zoo, tus nqi, thiab qhov loj me. Qhov kev tsim no tuaj yeem lav qhov ruaj khov hauv qab impedance.
Advantage: Tsawg thiab ruaj khov tsis kam
Back Drill
Kev xyaum rov qab feem ntau yog siv nyob rau hauv ib puag ncig nrog cov khoom sib txuas me me, xws li wireless earbuds, smartphones, lossis IoT me me. qhov me me tuaj yeem ua tau raws li qhov xav tau ntawm elasticity ntawm cov neeg siv khoom vim tias lub caij nplooj ntoos hlav ntev ntawm qhov tsim no tuaj yeem tshaj qhov ntev ntawm rab koob raj. Qee zaum qhov chaw txwv.
Cone Tsim
Hom kev tsim no yog qhov kev xaiv zoo tshaj plaws rau cov khoom sib txuas nrog cov kev xav tau siab concentricity vim tias lub caij nplooj ntoos hlav tuaj yeem tsim tau zoo tshaj plaws ntawm tus pin tapered tus pin ntawm tus pin qag ncaj qha. tapered tail nyob rau hauv qab ntawm tus pin qag yog muab tso rau hauv sab hauv ntawm lub caij nplooj ntoos hlav, kom txo tau qhov co ntawm tus pin qag. Advantage: Yooj yim tig, me ntsis skewness, Tsawg nqi.
Pob tsim
Lub pob tsim yog qhov kev xaiv zoo tshaj plaws rau kev sib tw ib puag ncig xws li lub tshuab ua haujlwm hnyav, kev them nyiaj, thiab kev siv kho mob, kev sib cuag tau ruaj khov dua, thiab qhov tam sim no tseem ceeb heev.
Advantage: ruaj khov tsis kam, tuaj yeem hla dhau tam sim no
Qhov yooj yim ua hauj lwm qhov siab ntawm Pogo Pin (lub caij nplooj ntoos hlav-loaded connector):
Feem ntau, tus nqi ntawm compression thaum lub sijhawm ua haujlwm yog 2/3 ntawm tag nrho cov kev mus ncig, yog tias qhov compression txaus txaus, lub zog zoo yog tsawg dhau, yog li qhov impedance tsis ruaj khov.
Kev siv tus pin pogo ntawm qhov siab ua haujlwm yuav ua rau kom muaj zog thiab kev ua haujlwm ntawm cov khoom txuas ntxiv.
Lub roj teeb tiv tauj phaj lossis tus ntiv tes golden uas txuas lub pogo tus pin yuav tsum tsis muaj av, oxidation, thiab lwm yam.

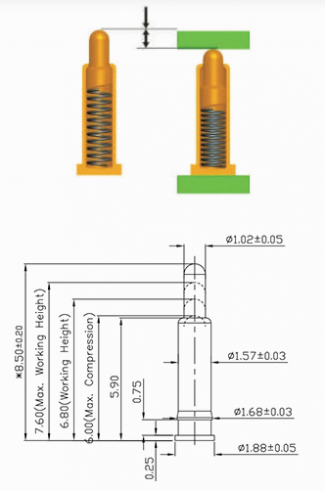

Thov txwv tsis pub siv nyob rau hauv qhov ntau ntawm specifications teev nyob rau hauv daim duab.
