TWS Bluetooth Headset Charging Pin

TWS Bluetooth headset charging pin

TWS uas txhais tau tias muaj tseeb wireless stereo.

Lub realization ntawm no technology yog raws li nyob rau hauv txoj kev loj hlob ntawm nti technology.TWS technology tau siv nyob rau hauv lub teb ntawm Bluetooth headsets, yog li ib tug tshiab khoom-TWS Bluetooth headset tau yug los. Lub pogo tus pin tau ua lub luag haujlwm tseem ceeb hauv TWS Bluetooth headset lossis earbuds them.

Yuav them li cas:

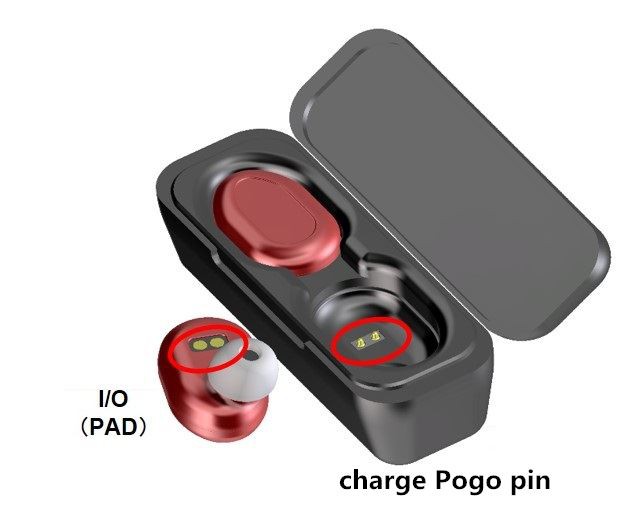

Lub mloog pob ntseg nws tus kheej tsis muaj qhov them nyiaj interface, thiab tsuas yog tuaj yeem them los ntawm lub charger compartment. Muab lub pob ntseg tso rau hauv qhov chaw them nyiaj, nrog kev pab los ntawm kev sib txuas ntawm ob lub pogo tus pin hu, lub chaw them nyiaj tuaj yeem them lub mloog pob ntseg, uas tuaj yeem them tag nrho hauv 2 teev.

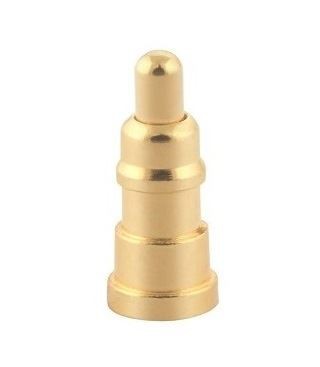

Dab tsi yog Specifications ntawm peb tus pin pogo:

Yam ntxwv:

A. Hluav taws xob

1) Ua haujlwm voltage: 12V

2) Ua haujlwm tam sim no: 3.5A.

3) Tiv tauj tsis kam: 30mohm Max.ntawm kev ua haujlwm siab (Quiescence).

B. Mechanical

1) Tag nrho cov hlab ntsha: 1.10mm.

2) Txoj haujlwm ua haujlwm: 4.5mm.

3) Caij nplooj ntoos hlav quab yuam: 75 ± 25gf ntawm qhov siab ua haujlwm

4) Mechanical life: 30,000 lub voj voog min.

5) Don' tsis tshaj qhov Max. tso cai compression

C. Khoom siv / tiav

1) Plunger: tooj dag, Plating Min. 0.25um Au tshaj Min. 1.4 Nws.

2) Pob: tooj dag, Min. Plating 0.1um Au tshaj Min. 1.4 Nws.

3) Caij nplooj ntoos hlav: Stainless hlau xaim.

4) Housing: PA 4.6 + 30% GLASS FIBER; Dub (UL94V-0)

D. Ib puag ncig

1) Cia thiab ua haujlwm kub ntau:

-40°C~+85°C

2) Cov av noo: 10% RH txog 90% RH

3) ntsev tsuag: 48H
