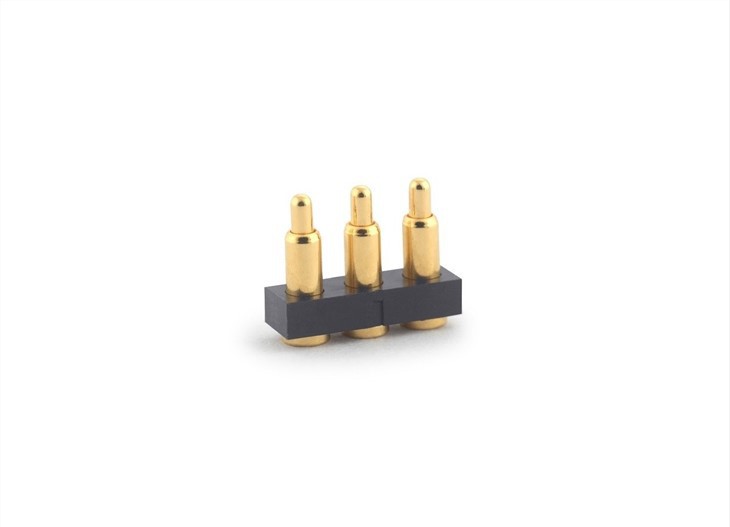

Pogo Pin 1Row 3pins Rau Kab Ua Ke

SMTPogo Pin 1Row 3pins Rau Kab Ua Ke

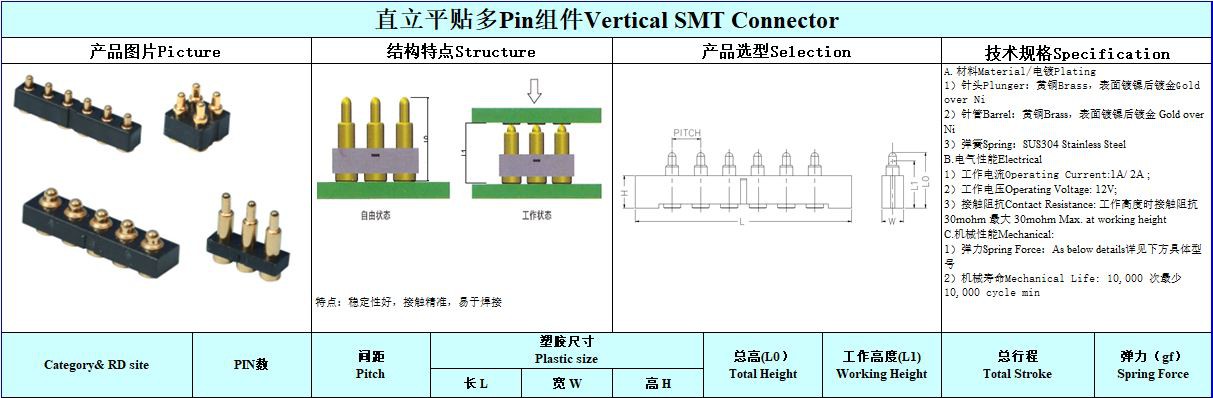

Kev qhia tshwj xeeb

ThePogo pin Cov khoom lag luam tshwj xeeb yog raws li hauv qab no:

1.0 cov ntsiab lus

1.1 Qhov kev qhia tshwj xeeb no piav qhia qhov dav dav tsis ua haujlwm thiab ntsuas kev xav tau ntawm Pogo pin series khoom.

2.0 xav tau

2.1 Qhov pom me me tau raws li qhov xav tau ntawm cov khoom lag luam

3.0 Cov khoom siv khoom thiab plating

3.1 Barrel yog tooj dag tooj liab, uas yuav tsum tau siv hluav taws xob, npib tsib xee plated thiab kub-plated. Lub thickness ntawm txheej plating txawv vim qhov sib txawv khoom siv sijhawm.

3.2 Plunger yog tooj dag tooj liab, uas yuav tsum tau electroplated, npib tsib xee plated thiab kub-plated. Lub thickness ntawm txheej plating sib txawv vim qhov sib txawv ntawm kev siv cov khoom.

3.3 Lub caij nplooj ntoo hlav yog cov hlau tsis huv SUS 304, lossis nws tuaj yeem raug electroplated piano steel hlau.

3.4 Cov yas yog cov khoom siv tiv taus kub, xws li PA46, PA4T, LCP, PA9T thiab lwm yam.

4.0 Parameters

4.1 Ua haujlwm voltage: 12V

4.2 Kev ua haujlwm txuas ntxiv tam sim no: 1.0A

4.3 Kev pab lub neej: 10000 zaug

4.4 Ua haujlwm kub: -25 ℃ txog ﹢ 75 ℃ 95%RHMax

4,5 Cia kub: -40 ℃ txog ﹢ 85 ℃ 95%RHMax

5.0 Kev siv hluav taws xob

5.1 Tiv tauj tiv thaiv: Kev tiv tauj tiv tauj ntawm qhov chaw ua haujlwm yog<>

5.2 Tiv thaiv qhov hluav taws xob: 500VAC rau 1 feeb, qhov siab tshaj plaws tam sim no yog 0.3mA.

6.0 Cov khoom siv dag zog

6.1 Lub zog muaj zog, ua haujlwm zoo tshaj 30gf

6.2 Kev ruaj khov 20,000 zaug lub caij nplooj ntoo hlav tseem nyob hauv thaj tsam

7.0 Ib puag ncig kev ua tau zoo

7.1 Kub tsis kam tiv taus 260 ℃, tsis muaj xim los yog blistering tom qab 6min.

7.2 Qhov kub thiab txias tsis tu ncua 95%RH, 60 ℃, 96hours qhov ntsuas kub thiab av noo tas li tom qab kev sib cuag tsis sib haum< 200mohm,="" tsis="" pom="" kev="" puas="">

7.3 Ntsev tshuaj Ntsev A 5% ntsev tov yuav tsis xeb rau 48 teev.

7.4 Soldering tin kuaj 245 ± 5 ℃, sijhawm 2 ~ 3 vib nas this, thaj chaw ntub siab dua 95%.

Pogo tus pin txuas rau pcb davhlau ya nyob twg thov

Raws li roj teeb lub caij nplooj ntoo hlav ntsaws SMT pogo tus pin txuas tus xa khoom, peb SMT Pogo Pin rau tus nqi hluav taws xob tam sim no tau thov rau adapter, program program, HMI daws thiab tsim PCB pawg thawj coj saib.

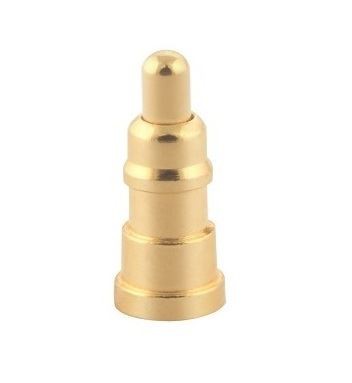

OurSMT Pogo Pin tsim

Peb ua li cas:

1. ob lub koom haum zoo tsim tus kheej lub tsev tshuaj xyuas khoom

2.38 cov kab lathing siab heev thiab 12 lub tshuab Digital zoo

3.Txhua 100 tus neeg siv khoom thiab 1000 xaj thoob ntiaj teb txhua xyoo

4.6 kab hauv QIC thiab 12 QC kawg, Tswj Txhua kauj ruam raws li koj xaj

5.136 cov neeg ua haujlwm txawj tshaj lij, 15 tus kws tshaj lij kev paub ua haujlwm tsim khoom

6.12 tus thawj tswj kev muag khoom, 7*24 teev kev pabcuam

Peb Muaj Peev Xwm

■ Pogo Pin1.3KKpcs/Hnub;

Components Cheebtsam tshiab 300 KSets/ M.

Parts Cov khoom sib dhos 10 KSets/M.

Parts Precision qhov 100 KKpcs/M.

Kev Nyab Xeeb Zoo txog lub caij nplooj ntoo hlav tus pin

Cov Neeg Siv Khoom

Tam sim no, peb cov khoom tau ua tiav thiab siv dav hauv cov khoom lag luam: ntse hnav, TWS Bluetooth pob ntseg, hais lus Bluetooth, tsev ntse, xov tooj ntse, 5G kev sib txuas lus, khoom siv kho mob, khoom siv hluav taws xob nqa khoom, thiab lwm yam.

Kev ntseeg tau thiab ntseeg tau Pogo Pin Chaw Tsim Khoom! Good-Link Technology ua cov txuas txuas txuas tau zoo dua.
