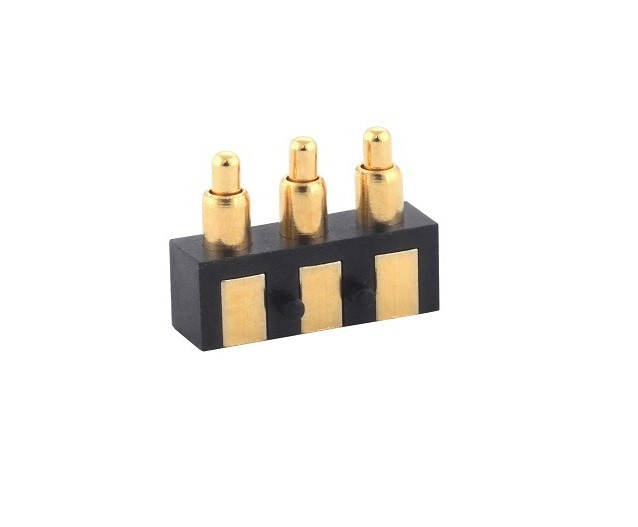

3Pin Sab Tsim Pogo Pin Connector
2. Tsis muaj pwm qhib, yooj yim rau cov neeg siv khoom customization thiab txuag nqi
3. Elastic quab yuam yuav raug ntsuas thiab hloov kho
4. Ntau hom ntau lawm uas yooj yim rau cov neeg siv khoom (SMT, plug-ins, thiab lwm yam)
5. Qhov sib txawv me me, txuag qhov chaw, muab cov qauv tsim kom yooj yim rau kev teeb tsa
6. Tsawg inductance, zoo dua high-frequency tov
7. Ua raws li RoHS thiab HF (connector) cov cai
Xa kev nug
Product Details of3Pin Sab Tsim Pogo Pin Connector
Cov txheej txheej saum npoo ntawm 3Pin Side Design Pogo Pin Connector feem ntau yog kub-plated, uas tuaj yeem txhim kho nws txoj kev tiv thaiv corrosion, cov khoom siv hluav taws xob, hluav taws xob, thiab lwm yam. Nws yog feem ntau siv hauv kev sib txuas precision hauv xov tooj ntawm tes, kev sib txuas lus, tsheb, kev kho mob, aerospace, thiab lwm yam khoom siv hluav taws xob, uas tuaj yeem txhim kho corrosion, stability, thiab durability ntawm cov connectors. Txij li thaum POGO PIN yog ib qho kev sojntsuam zoo heev, nws tuaj yeem txo qhov hnyav ntawm cov khoom sib txuas thiab cov tsos ntawm lub ntim thaum siv cov khoom sib txuas, thiab ua kom lub connector zoo dua thiab zoo nkauj.

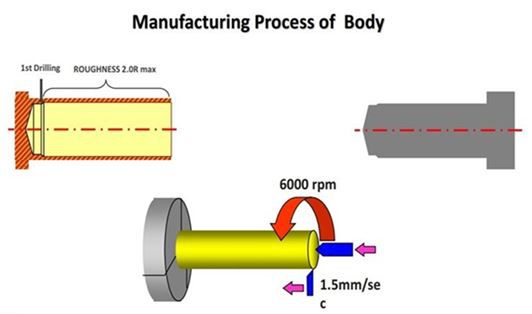

Kev ua haujlwm txias stamping tuaj yeem ua kom paub meej cov kev xav tau ntawm txoj kab nqes thiab cov kab sib npaug. Qhov saum npoo ntawm cov khoom yog du thiab zoo ib yam, thiab qhov tseeb qhov ntev tuaj yeem ncav cuag 0.003mm
Yam khoom | Spec.1 | Spec.2 | Spec.3 |
Khoom siv | Plunger / chim: tooj dag | Spring: stainless hlau | |
Plating | chim: 0.1um kub plated, 1.4um npib tsib xee plated | Plunger: 0.4um kub plated, 1.4um npib tsib xee plated | |
Cov khoom hluav taws xob | Tiv tauj tsis kam: 30mOhm Max. | Rated voltage: 36V DC Max | Standard tam sim no: 2.0A |
Mechanical zog | Durability: 10, 000 voj voog min. |
Peb tau thov rau ntau tshaj 28 patents, suav nrog 20 qhov pom patents thiab 8 cov qauv siv hluav taws xob raws li tam sim no ua tiav "National High-tech Enterprise" ntawv pov thawj.
 |  |  |
 |  |  |
✧ Kev Tsim Kho Tshuab
Peb lub tuam txhab muaj kev tsim thiab kev tsim kho tiav, kev tsim khoom thiab kev ua haujlwm, electroplating, thiab kev sib dhos, los ntawm kev xa cov khoom mus rau txheej txheej txheej txheej, nrog rau cov khoom sib dhos zaum kawg, kev ntsuam xyuas kev ntseeg siab, thiab ntim tuaj yeem ua tiav ntawm nws tus kheej, uas tuaj yeem ua tiav. ua kom sai thiab muaj txiaj ntsig zoo muab cov neeg siv khoom nrog cov khoom lag luam, ua kom luv luv ntawm cov khoom lag luam kev loj hlob. Peb nruj me ntsis tswj txhua txoj kev tsim khoom nrog cov cuab yeej tsim khoom siab heev, pib los ntawm cov lus qhia ntau lawm.
 |  |
|
|
|
Tshuab Ntau Lawm & Cov Khoom Siv Xeem:

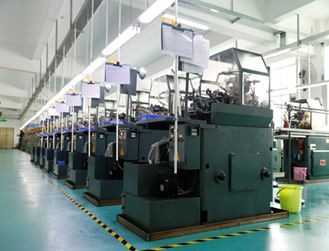

Tshuab dhos
Pogo pin manufacturing

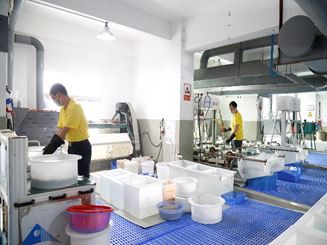

Plating Rhiav
Txheej txheem plating
Kev sib dhos kab

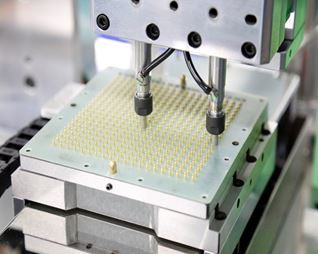

POGO PIN precision riveting
Quality Assurance System:
ROHS AND HF Test Report:
Cim npe nrov: 3Pin Sab Tsim Pogo Pin Connector, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized, lag luam wholesale, yuav, tej, Tshuag, dawb qauv
