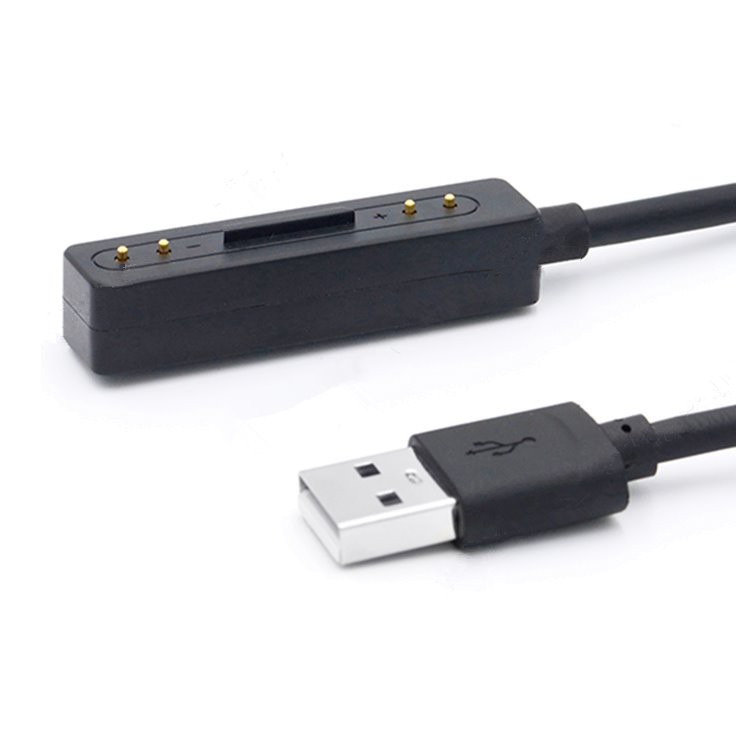

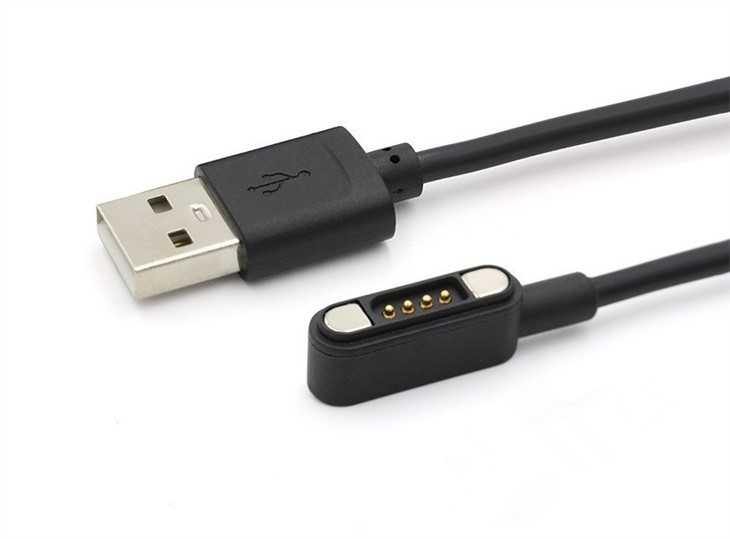

Magnetic 4 Pin Cable

Magnetic 4 Pin Cable

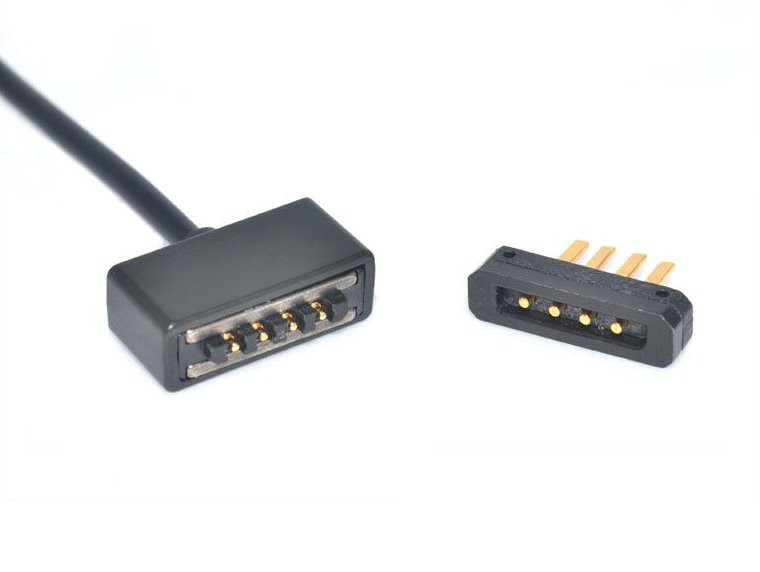

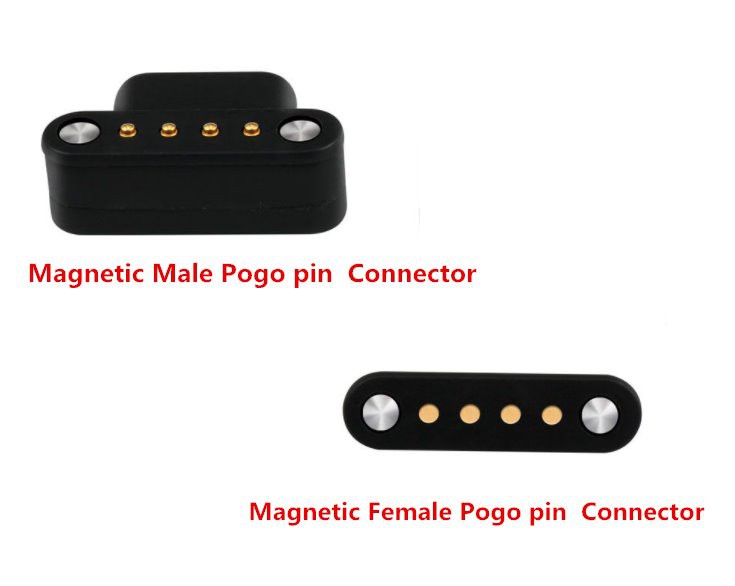

Magnetic connectors are one of the connectors that are widely used in electronic devices. The male end and the female end of the connector can be quickly positioned when plugged by a magnet, which is convenient for plugging and unplugging.

Our self-developed Magnetic 4 Pin Cable charging connector includes a base, a plurality of first conductive elements, two first magnetic elements, and an elastic waterproof element; the plurality of first conductive elements are fixed on the base; each first conductive element has a butt end extending upward beyond the upper surface of the base body and a tail end extending downward; the two first magnetic attraction elements are fixed on the base body and are arranged on the sides of the plurality of first conductive elements two sides; the elastic waterproof element is fixed on the upper surface of the base.

Provide POGO PIN connector product solutions based on customer industry analysis customer needs. The elastic waterproof element is provided with a plurality of through holes, and the butt ends of the plurality of first conductive elements pass through the plurality of through holes correspondingly and protrude upwards out. The electrical connector assembly includes the first electrical connector and an adapted second electrical connector. When the first electrical connector is applied to electronic equipment, the overall structural strength and waterproof capability of the casing of the electronic equipment can be improved.

Magnetic 4 Pin Cable the connector is suitable for high-density surface mount, sealed and dustproof, simple circuit design

The Magnetic 4 Pin Cable connector uses probe technology, which can be connected stably and has a lifespan of 500,000 times.

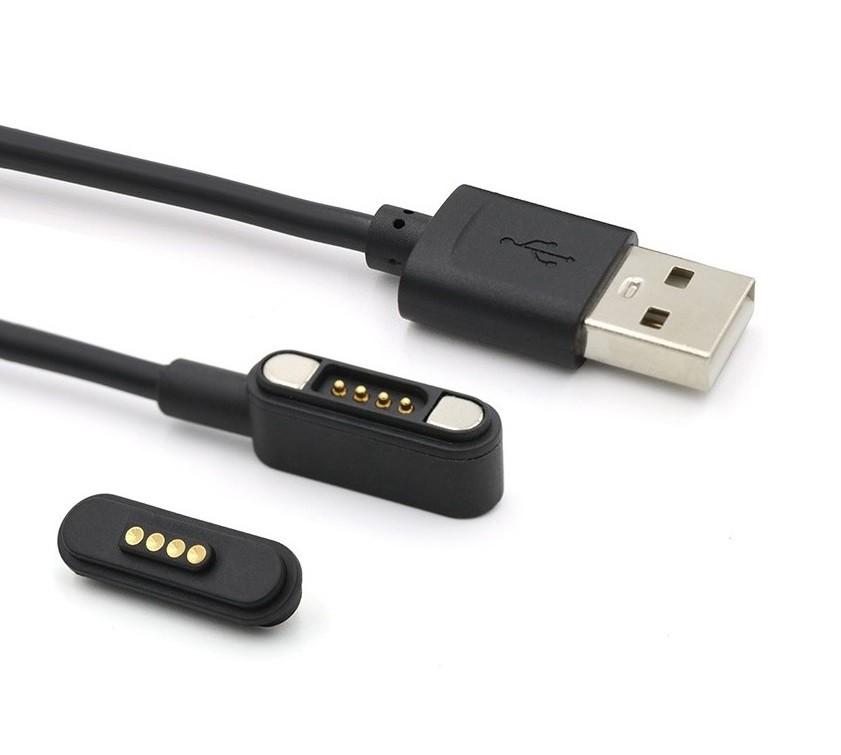

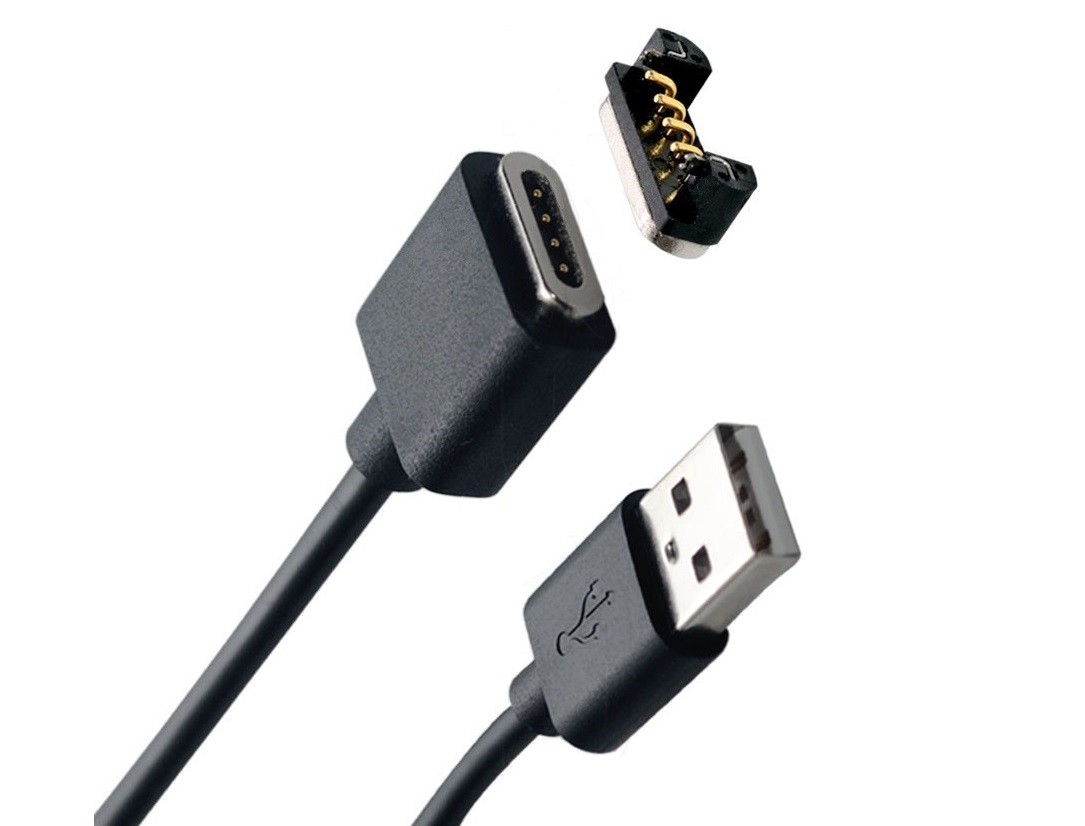

The magnetic Magnetic 4 Pin Cable connector is a non-standard connector, which adds a magnet device on the basis of the pogo pin connector. The principle of the magnetic connector is to use the principle of scalability of the pogo pin, and through the adsorption force provided by the magnet, the end of the pogo pin and the butt end are connected to each other, so as to achieve the purpose of charging and transmitting data.

The specifications of each magnetic connector manufacturer are different, and they are designed according to the customer's product needs.
