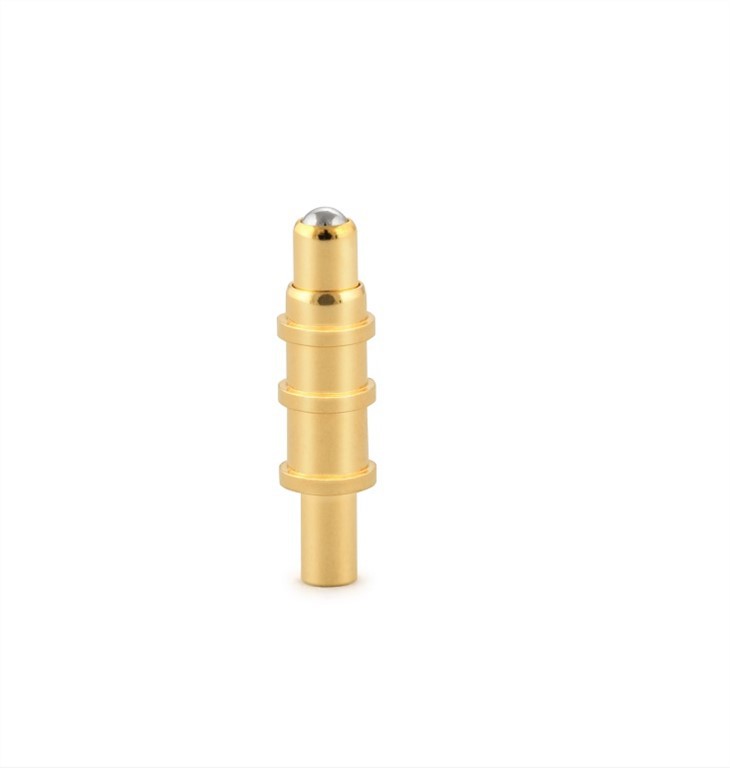

High Point Ball Point Pogo Pin

High Point Ball Pogo Pin tam sim no thov rau Kev Ruaj Ntseg Saib Xyuas

Ntse tsev

Tam sim no, pebHigh Point Ball Pogo Pin tam sim notau ua tiav thiab siv dav hauv cov khoom lag luam: ntse hnav, TWS Bluetooth pob ntseg, hais lus Bluetooth, tsev ntse, xov tooj ntse, 5G kev sib txuas lus, khoom siv kho mob, khoom siv hluav taws xob nqa tau, thiab lwm yam.

Yam ntxwv:

A. Hluav taws xob

1) Kev siv hluav taws xob: 12V.

2) Ua haujlwm tam sim no: 3.5A.

3) Tiv tauj tiv thaiv: 30mohm Max.

ntawm qhov siab ua haujlwm (Quiescence).

B. Neeg kho tshuab

1) Tag nrho stroke: 1.10mm.

2) Txoj haujlwm ua haujlwm: 4.5mm.

3) Lub Caij Nplooj Ntoos Hlav: 75 ± 25gf ntawm qhov siab ua haujlwm

4) Lub neej kho tshuab: 10,000 lub voj voog min.

5) Tsis txhob' tsis pub tshaj Max. tso cai compression

C. Khoom siv/Ua tiav

1) Plunger: tooj dag, Plating Min. 0.25um Au dhau Min. 1.4um Nws.

2) Chim: tooj dag, Min. Plating 0.1um Au dhau Min. 1.4um Nws.

3) Caij Nplooj Hlav: Cov hlau tsis xeb hlau.

4) Vaj Tsev: PA 4.6 + 30 % IAV FIBER; Dub (UL94V-0)

D. Ib puag ncig

1) Cia thiab ua haujlwm kub ntau:

-40°C~+85°C

2) Ntau yam av noo: 10% RH txog 90% RH

3) Ntsev tsuag: 48H

E. Lwm tus

1) Qhov ntev cim yog qhov tseem ceeb,

Yuav tsum tau tshuaj xyuas hauv kev tsim khoom

2) RoHs ua raws cov khoom lag luam.

Cov kws tsim vaj tsev xav paub dab tsiHigh Point Ball Pogo Pin tam sim noyog nws qhov peev xwm txuag chaw zoo vim yog qhov luv-luv thiab ultra-me me hauv kev tsim, thiab kev ntxiv ntawm cov txheej txheem electroplating tso cai rau peb cov khoom sib txuas kom muaj kev coj ua tau zoo, cov yam ntxwv ntau zaus thiab ntau ntxiv nrog rau qhov qis-tiv taus , tsim ntawm lub caij nplooj ntoo hlav hauv qhov txuas ua kom ntseeg tau ruaj khov thiab lub neej ruaj khov ntawm ntau pua txhiab leej! Raws li kev ua tau zoo ntawm Pogo Pin Connector, nws tau daws qhov kev siv thev naus laus zis sib txuas uas cov khoom siv sib txuas ua ke tsis tuaj yeem daws tau.

Qhov tseeb, pebHigh Point Ball Pogo Pin tam sim notau dhau ISO9001, ISO14001, thiab tuam txhab lag luam ntawv pov thawj. Thiab dhau lub xeev Guangdong high-tech enterprise ntawv pov thawj tsim nyog, lub tuam txhab muaj 3 invention patents thiab 18 cov tswv yim tsim nyog patent. Peb tau cog lus kom ntseeg tau tias peb li kev tswj hwm ua haujlwm sib koom ua ke kom tau raws li cov neeg siv khoom qauv.

Cov Neeg Siv Khoom

Cov neeg siv khoom los ntawm thoob plaws lub ntiaj teb los siv peb qhov siab tam sim no Ball Point Pogo Pin thiab lwm yam High Pogo Pin tam sim no. Peb muaj cov txheej txheem tsim khoom tiav, suav nrog: plating, rhiav, los ntawm kev xa cov ntaub ntawv mus rau txheej txheej txheej txheej, nrog rau kev sib dhos thiab ntim khoom kawg, txhua yam ntawm lawv yog ua los ntawm peb tus kheej, yog li peb tuaj yeem muab cov neeg siv khoom nrog cov khoom lag luam sai dua thiab muaj txiaj ntsig zoo, ua kom luv dua.

Cim npe nrov: siab tam sim no pob point pogo pin, Tuam Tshoj, cov chaw muag khoom, chaw tsim khoom, lub Hoobkas, kho kom haum, lag luam wholesale, yuav, ntau, hauv Tshuag, qauv dawb
