Kub Plated Khoom Pin Poj Niam Pogo Pin

Kub Plated Khoom Pin Poj Niam Pogo Pin

Lub ntsiab feature: Siab tsis kam rau ntsev tsuag 1000 H ntxiv

Kev tawm hws siab 240 H ntxiv

Ua tau raws li qhov yuav tsum tau ua ntawm biocompatibility (xws li kev ntsuas nickel tso tawm)

Kub Plated Khoom Pin Poj Niam hu Pin

Hom thiab daim ntawv thov ntawm Charging Contacts (Solid Pins)

Cov kev tiv tauj them nyiaj (cov pins khov) tuaj yeem muab faib ua peb hom: hom hauv qab tiaj tiaj, hom ntsaws-hauv, thiab hom hlua khi raws li hom vuam.

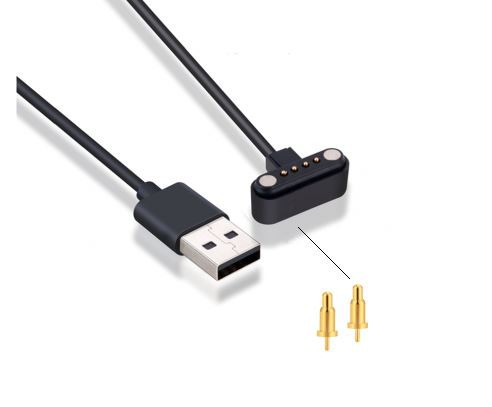

Charging Contact Solid PIN Connector

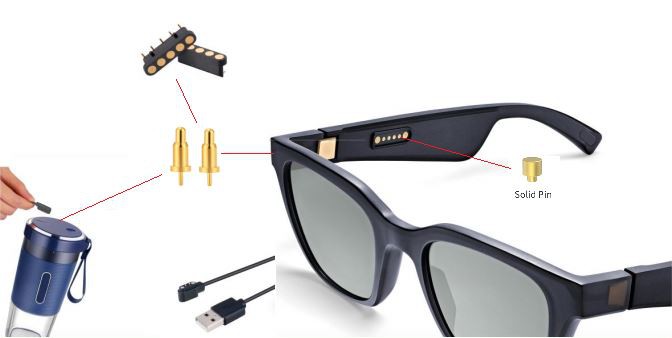

Peb muab high-precision charging contact (khoom Pin) tsheb qhov chaw thiab cov khoom sib txuas ntawm ntau cov qauv, uas yog siv ua ke nrog pogo pins, uas tau siv dav hauv cov khoom siv ntse xws li TWS earphones, watch bracelets, thiab lwm yam, ua kom txaus siab rau cov kev xav tau. ntawm cov neeg siv khoom sib txawv. Cov tsos, sib dhos, corrosion kuj, thiab lwm yam yuav tsum tau.

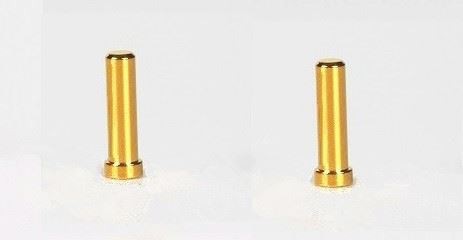

Kub Plated Khoom Pin Poj Niam Hu rau them tus pin

Sab hauv concave thiab convex arc nto tiv tauj nto. Cov qauv concave yog ib qho yooj yim rau cov plua plav, uas cuam tshuam rau kev sib cuag stability; lub puab concave thiab convex nto yog qhov nyuaj rau kev ntsuas, thiab qhov sib xws yog qhov nyuaj los tswj.

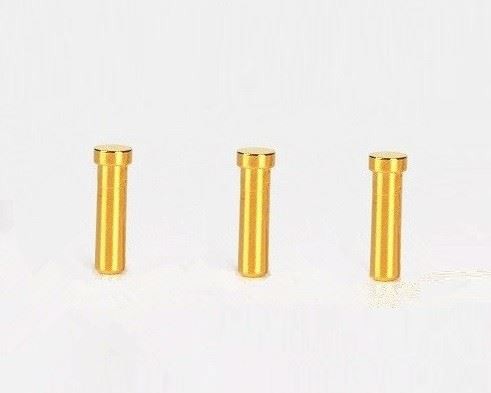

Kub Plated Khoom Pin Poj niam them tus pin

Flat contact nto, Lub tiaj tus kov yog siv ntau tshaj plaws, thiab nws yog ib qho yooj yim los ua thiab tswj.

Cov ntaub ntawv zoo tshaj plaws rau kev them nyiaj tiv tauj Pin

Cov khoom siv tooj liab feem ntau siv rau kev them nyiaj tiv tauj (tus pin khoom)

Cov tooj dag: C3604; c3602 ua

3) Cov hlau tsis muaj txhuas: C6801

· Cov hlau lead-dawb tin bronze: C5191 C5210

Cov hlau lead tin bronze: C5440

Beryllium tooj liab C17300

Tooj liab tellurium C14500

Kub Plated Khoom Pin Poj Niam Pogo Pin

Charging contacts (khoom Pin) feem ntau siv stainless hlau

· SUS316LF

· SUS303

· SUS904L (siab ntsev tsuag tsis kam, siab tawm hws)

· SUS430 (sib nqus, tuaj yeem sib nqus nrog cov hlau nplaum)

· Hastelloy C276, C-22, Hastelloy alloy X (siab ntsev tsuag tsis kam, siab tawm hws)

Kub Plated Khoom tiv tauj Pin Poj niam them Pogo Pin

Lub ntsiab tseem ceeb uas yuav tsum tau xav txog thaum xaiv cov khoom

Hardness & Machinability

· conductivity

· Kev xa tawm zog

· Scalability

· nqi

Corrosion tsis kam, ib puag ncig kev ua haujlwm, thiab lwm yam.

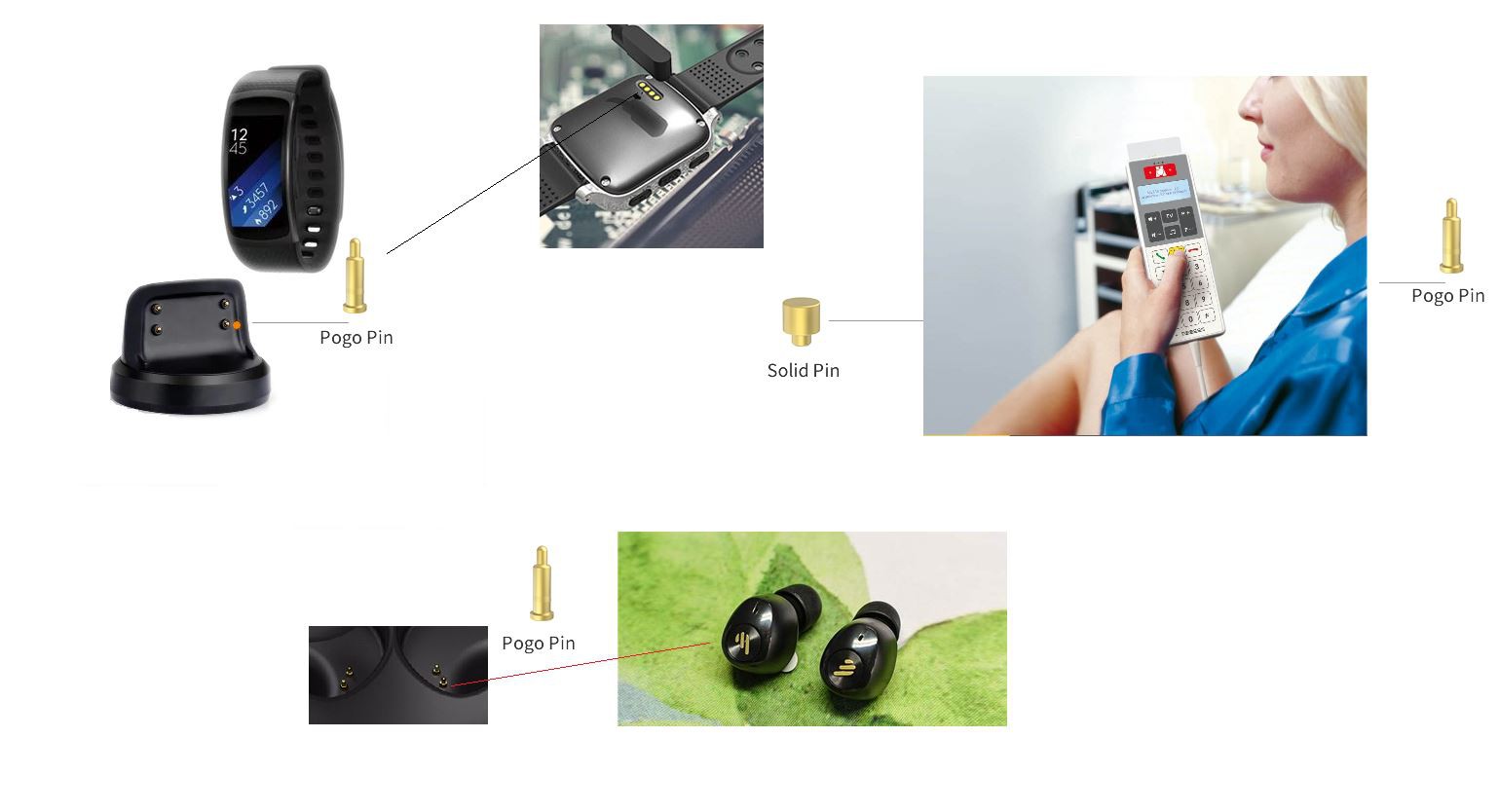

Kub Plated Solid Pin Poj Niam Pogo Pin tau siv dav hauv kev kho mob, tsev ntse, ntse hnav, TWS headset, thiab lwm yam kev lag luam thiab kev lag luam.
