Plating Kub Hlau Shrapnel Connector

Plating kub hlau shrapnel

Peb lub tuam txhab yog lub tuam txhab high-tech tshwj xeeb hauv kev tshawb fawb, kev tsim kho, thiab tsim cov dome chips, dome chips, hlau zaj duab xis nyees khawm, thiab precision hardware. Peb tau ua haujlwm rau cov chaw taws teeb tswj, xov tooj ntawm tes, POS tshuab, walkie-talkies, xov tooj cua, game consoles, digital cameras, Membrane keyboards, electronic instrument control panels, thiab lwm yam khoom siv hluav taws xob thiab hluav taws xob. Lub tuam txhab tau nruab nrog cov txheej txheem niaj hnub ntsuas kub tsis tu ncua thiab tsis muaj plua plav ntau lawm rhiav, nrog cov khoom siv stamping tsis siv neeg, tsis siv neeg lub raj xa dej installation, load tester, lub neej tester, precision duab ntes, thiab lwm yam. Cov txheej txheem kev ruaj ntseg zoo ua kom muaj kev ntseeg siab thiab mus ntev. stability ntawm cov khoom zoo. Nws kuj qhia txog cov txuj ci siab thev naus laus zis thiab tso siab rau qhov zoo ntawm cov kev tswj hwm niaj hnub kom sai thiab zoo muab cov tuam txhab hluav taws xob nrog dome khawm daws. Tam sim no nws tau tsim lub sijhawm ntev thiab ruaj khov kev sib koom tes sib koom tes nrog ntau lub tuam txhab hluav taws xob hauv tsev loj.

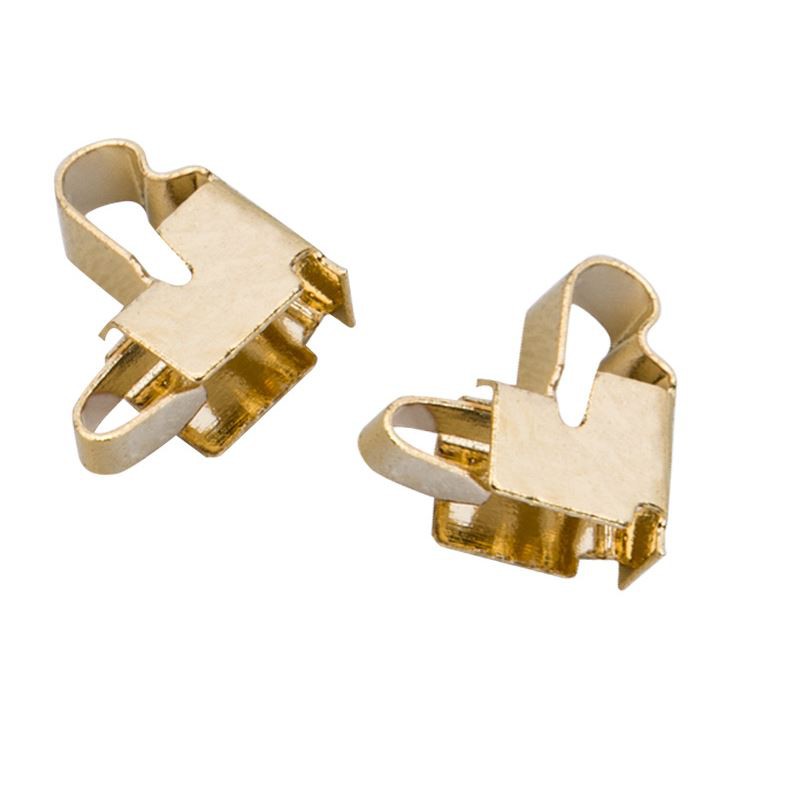

Plating Kub Hlau shrapnel connector

Hlau shrapnel (tseem hu ua hlau dome, snap dome) yog ua los ntawm ultra-nyias (0.05mm-0.1mm thickness) thiab ultra-thick (feem ntau dua hardness) stainless hlau 301 lossis 304 cov ntaub ntawv. Cov hlau dome yog ib feem tseem ceeb ntawm kev hloov. Hlau shrapnel yog tsuas yog siv rau hauv daim nyias nyias hloov, kev sib cuag hloov, PCB boards, FPC boards, khoom siv kho mob, thiab lwm yam khoom.

Plating Kub Hlau shrapnel connector

Lub hauv paus ntsiab lus ntawm kev ua haujlwm ntawm cov hlau shrapnel: cov hlau shrapnel ntawm lub pob membrane yog nyob rau ntawm qhov hluav taws xob ntawm PCB (feem ntau saum cov ntiv tes kub ntawm lub rooj tsav xwm Circuit Court). Thaum nias, qhov chaw nruab nrab ntawm lub shrapnel yog concave thiab hu rau lub voj voog ntawm PCB, thiaj li tsim lub voj voog, tam sim no dhau mus, thiab tag nrho cov khoom tuaj yeem ua haujlwm ib txwm.

Plating Kub Hlau shrapnel connector

General pa hlau shrapnel, raws li lawv cov duab sib txawv yog muab faib ua round hlau shrapnel, cross-shaped hlau shrapnel, daim duab peb sab hlau shrapnel, thiab oval hlau shrapnel. Txoj kab uas hla ntawm 3mm mus rau 20mm, lub zog ntawm 100g txog 600gf. Tau kawg, yog tias koj muaj cov cai tshwj xeeb los ua raws li koj cov duab kos, tsis muaj teeb meem.

Plating Kub Hlau shrapnel connector

Thiab raws li cov neeg siv khoom xav tau rau cov resistors, peb cov hlau shrapnel kuj muaj npib tsib xee-plated, silver-plated, kub-plated, thiab lwm yam kev kho deg.

Plating Kub Hlau shrapnel connector

Shrapnel khoom: tooj liab, stainless hlau, aluminium alloy, thiab lwm yam hlau

Daim ntawv thov kev lag luam: kev sib txuas lus, tsheb, sensor, kho mob electronics, connector, thiab lwm yam.

Shrapnel nta siab elasticity, tiv thaiv qaug zog, tiv thaiv oxidation, lub neej ntev, tsis muaj zog, thiab lwm yam.

Cov yam ntxwv ntawm cov txheej txheem: Nws yog txheej txheem molding uas cov ntaub ntawv hlau tau ua tiav rau hauv cov duab tshwj xeeb los ntawm kev tuag stamping.

Plating Kub Hlau shrapnel connector

Hlau shrapnel muaj hluav taws xob thiab thermal conductivity, corrosion kuj, yooj yim vuam, thiab conduction. Hlau shrapnel feem ntau yog siv hauv 3C digital, lub zog tshiab, xov tooj ntawm tes, thiab kev kho mob precision hluav taws xob. Feem ntau, qhov saum npoo yuav tsum tau electroplated (xws li kub-plated, silver-plated)

Plated Kub Hlau shrapnel connector

Plating Kub Hlau shrapnel connector

Cim npe nrov: plating kub hlau shrapnel connector, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized, lag luam wholesale, yuav, bulk, Tshuag, dawb qauv
