Sib nqus Pogo Pin Charging Connector
Sib nqus Pogo Pin Charging Connector
Cov yam ntxwv ntawm cov khoom
| Khoom siv | tooj dag (C3604) |
| Xim | Kub |
| Loj | Nyob ntawm cov neeg siv khoom xav tau |
| Hom | SMT |
| Plated | Kub plated (10U ") (tuaj yeem kho tau) |
| Lub neej voj voog | 10, 000 zaug |
| Tiv tauj tiv thaiv | 50m Ohm Max. |
| Ntsev pos | 24H |
| Rated tam sim no & voltage | 1A ~ 10A / 12V (tuaj yeem kho tau) |
| Daim ntawv thov | PCB, lub zog, cov khoom siv them nyiaj |
| Daim ntawv pov thawj | ISO9001/ROHS/REACH/MSDS/SGS |
| Ntim | 1000pcs / PE hnab (los yog raws li tus neeg yuav tsum tau muaj) |
| Them Nyiaj | T/T |
| Txoj kev them nyiaj | T / T, PayPal, |
| Freight | Huab cua, Hiav txwv, Express |
| Sample Lead Time | Cov lus nug yooj yim 2-3hnub / customized yooj yim3-5hnub |
| Lub Sijhawm Ua Haujlwm Ntau Lawm | 7-10 hnub |
| Ua Rau | America, Europe, Asia, South African |
| Trade Term | EXW, FOB, CIF |
| Kev pabcuam | High quality ntawm tus nqi tsim nyog. |
| Kev pabcuam OEM, txhua qhov tshwj xeeb loj, xim, tsim tau. | |
| Cov qauv qub tuaj yeem rov ua dua. |

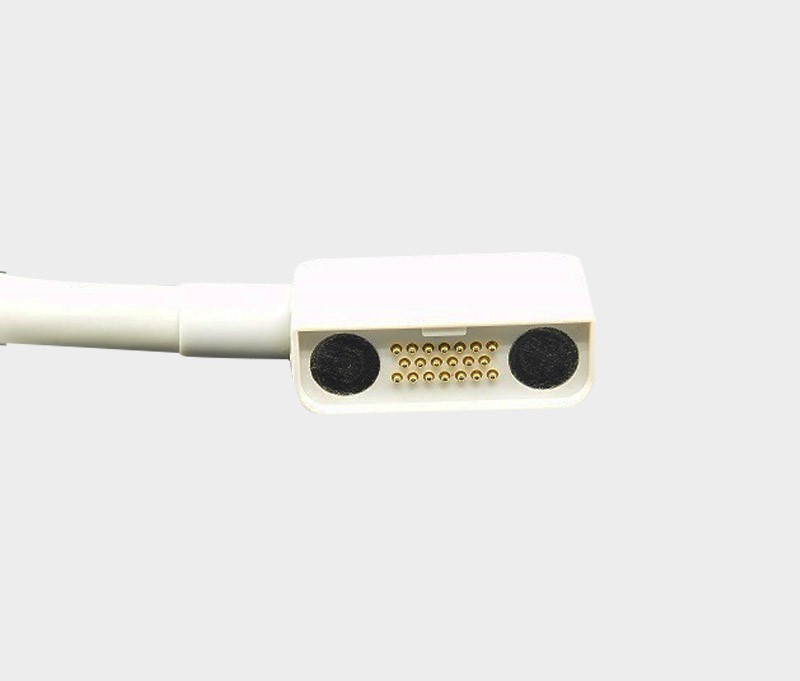

Sib nqus Pogo Pin Charging Connector
1. E-PLATING
1.1) Plunger: tooj dag C3604,1 ~ 50 micro nti Au tshaj 50 ~ 120 micro nti Ni;
1.2) chim: tooj dag C3604,1 ~ 50 micro nti Au tshaj 50 ~ 120 micro nti Ni;
1.3) Caij nplooj ntoos hlav: SUS304, 1 ~ 3 micro nti Au;
2. Rated voltage (Ib tug Hu): 12 V;
3. Rated Tam sim no (Ib Tus Hu): 1.0A-10.0A;
4. Rwb thaiv tsev tsis kam: 50MΩ Yam tsawg kawg nkaus;
5. Dielectric Withstanding Voltage: 100VRMS AT 60HZ;
6. Tiv tauj Resistance: 30 mΩ siab tshaj plaws ua ntej kev xeem thiab 50mΩ siab tshaj plaws tom qab kuaj ntawm Pogo tus pin ua haujlwm stroke;

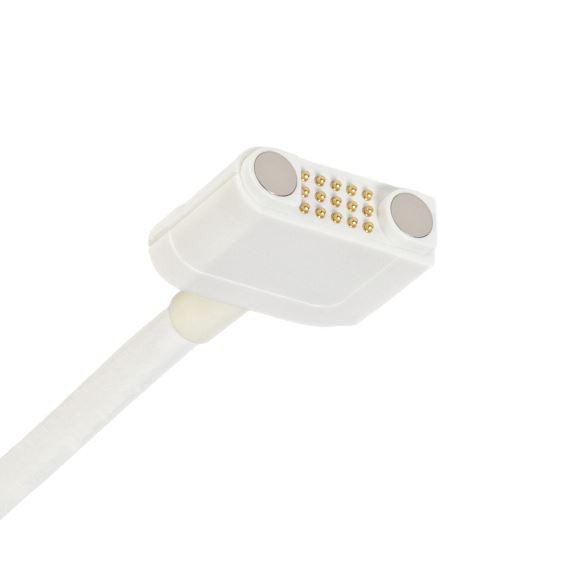

Sib nqus Pogo Pin Charging Connector

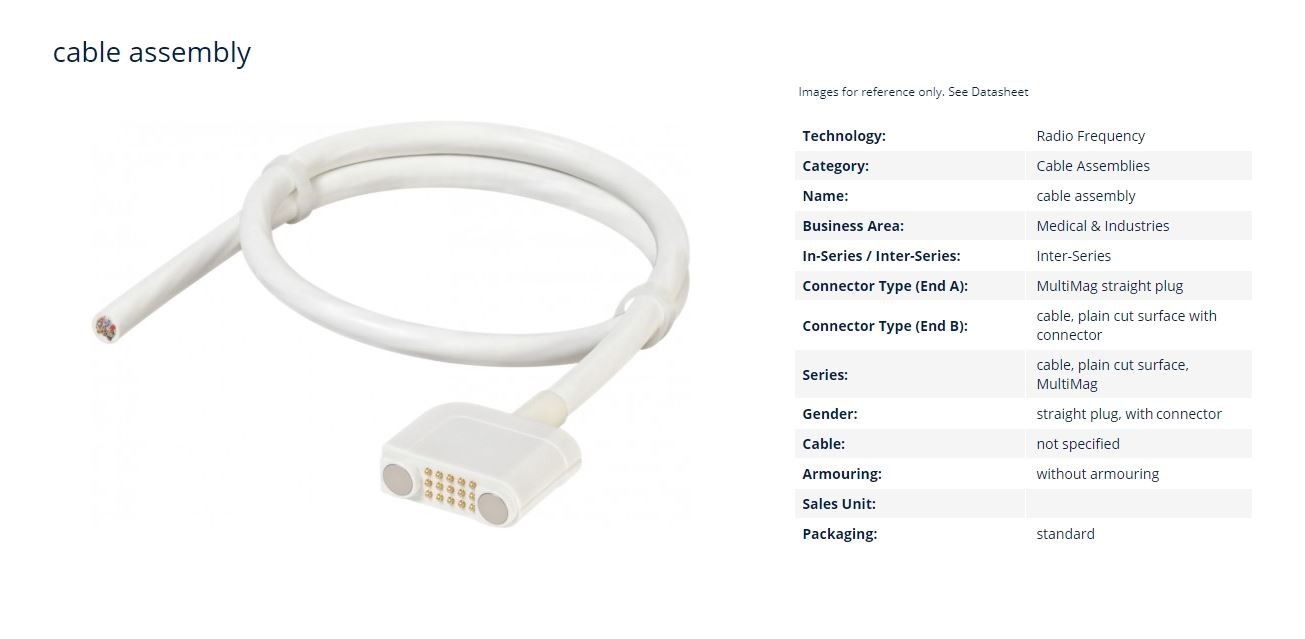

Sib Nqus Pogo Pin Charging Connector subassembly rau lub magnetic pogo-Pin hloov, nrog rau thawj adapter txuas nrog lub adapter thib ob ntawm cov ntaub ntawv cable, thawj adapter muaj ntau qhov chaw so rau hluav taws xob tiv tauj, suav nrog thawj lub cev, thawj qhov sib txuas , thiab qhov thib ob interface, qhov thib ob interface, thawj lub cev yog muab nrog cov khoom sib nqus, qhov thib ob adapter suav nrog lub cev thib ob thiab qhov thib peb interface yog teem rau ntawm lub cev thib ob, qhov thib peb interface muaj ntau ntau ntawm pogo-Pin Lub splicing. ncej thiab lub cev thib ob yog muab nrog cov hlau nplaum thib ob. Thaum siv, thaum docked nrog tus thawj adapter thiab cov khoom siv hluav taws xob, qhov thib ob interface tau nthuav tawm ntawm cov khoom siv hluav taws xob. Tus adapter tuaj yeem ua qhov tseeb thib ob interface. Qhov thib peb interface ntawm tus thib ob adapter yog nyob ze, thiab nws yog tsau thiab txuas nrog magnetic adsorption, thiab nws cov pogo-Pin splicing ncej yog ntsaws rau them.

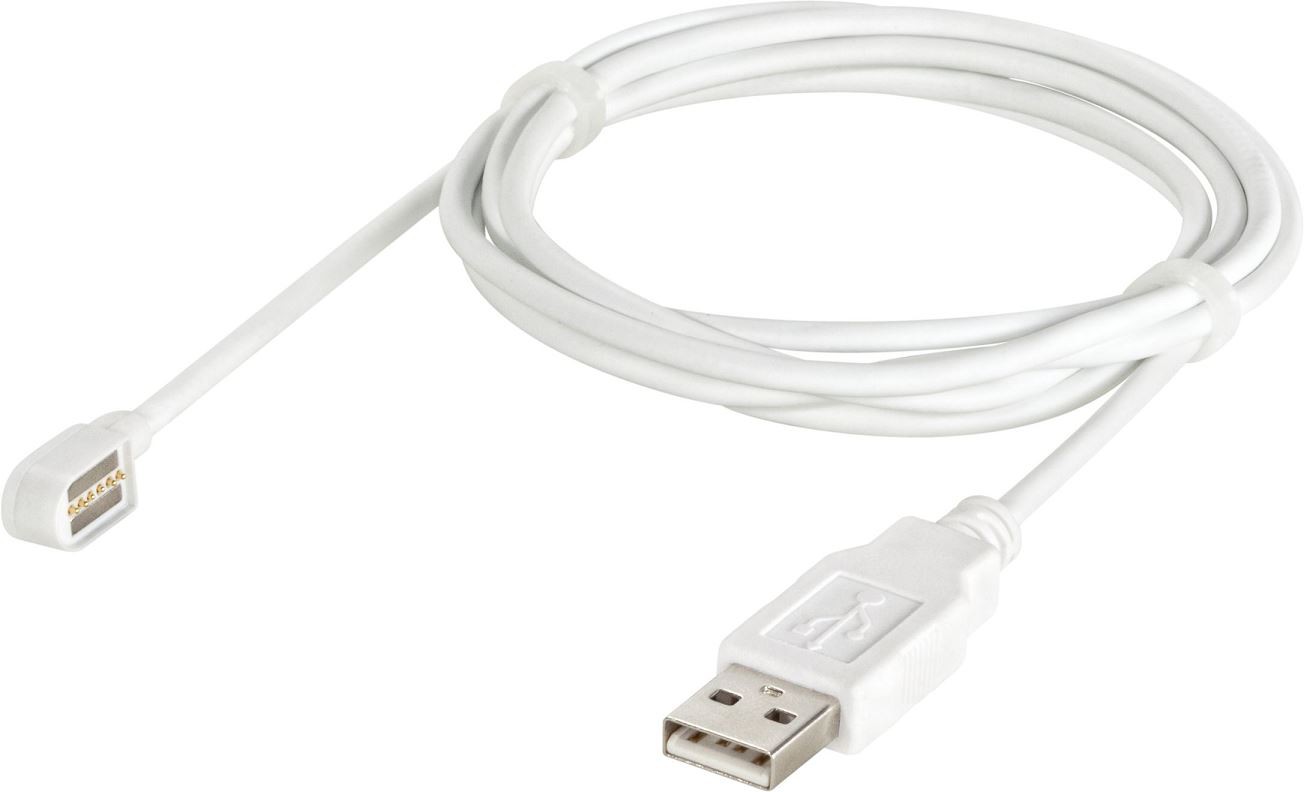

Sib nqus Pogo Pin Charging Connector
Sib nqus Pogo Pin Charging Connector
Pom zoo ua hauj lwm Stroke & Force: 1) Caij nplooj ntoos hlav Force: 30gf ~ 300gf;
Mechanical life: 1) Mechanical life: 10, 000 Lub voj voog;
Ua haujlwm kub ntau: -30 ~ 85 degree ;
Ntsev Txau: 24 teev;

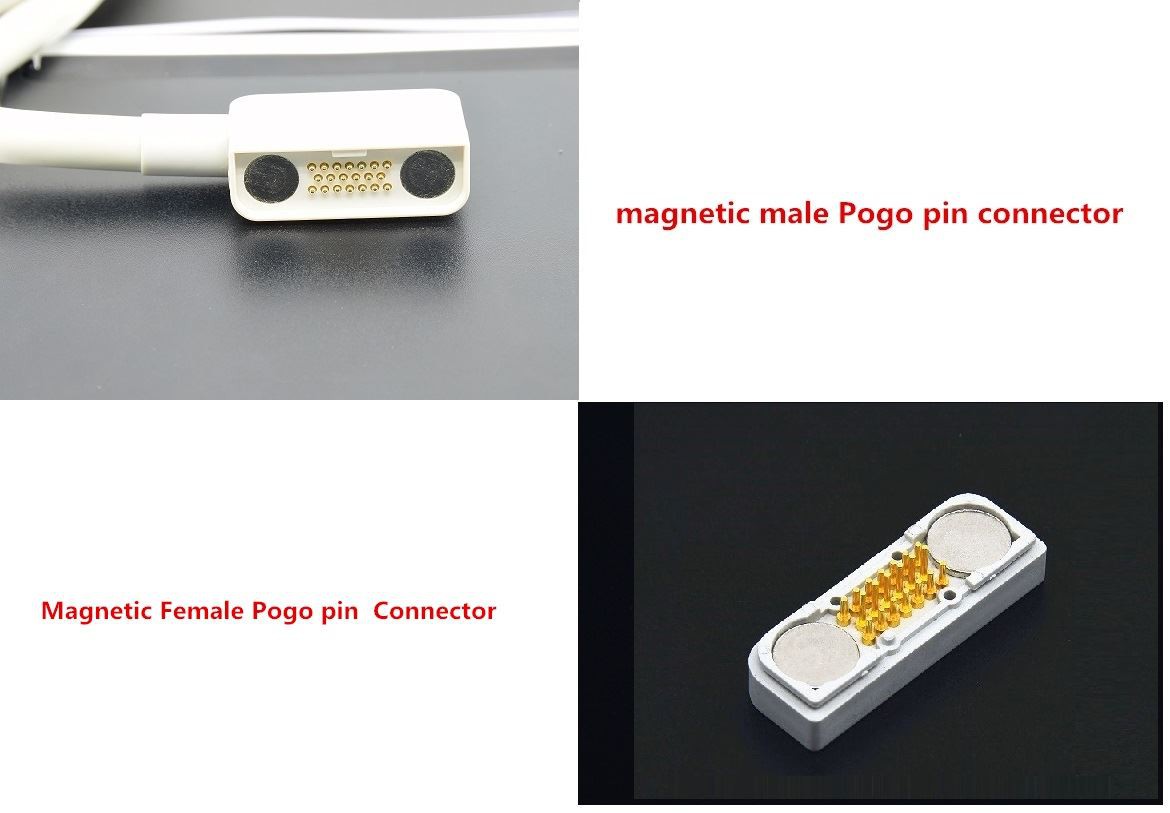

Poj niam poj niam Connector , Txiv neej poj niam Connector ,
Cov qauv dawb nrog cov qib siab precision, 0.01mm precision
Kev rov ua dua tshiab, Tam sim no loj, MOQ qis, Tsawg-Resistance
Standard & Non-Standard Pogo tus pin connector
OEM / ODM tuaj yeem tsim kev cai
Ib kab, ob kab, peb kab
Nto Mount Soldering, Ob Lub Taub Hau, Lub taub hau tiaj tus
Waterproof

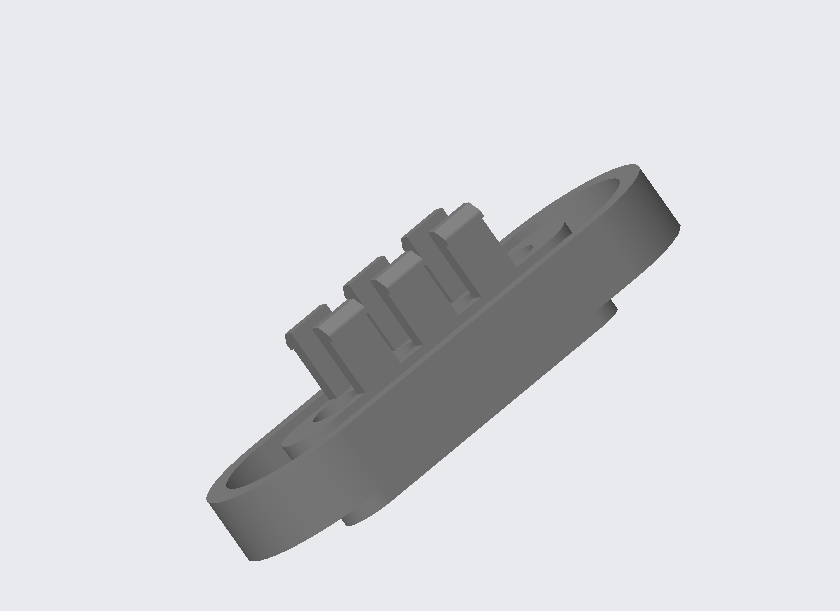

Sib nqus Pogo Pin Charging Connector Yas Tsev
Daim ntawv thov:
Electronic Kub Pd-Ni Plated SMT Pogo Pin Power Connector
GPS Stainless hlau ntsug hom caij nplooj ntoos hlav Load Pin
Txawb SWP Caij Nplooj Hlav SMA Pogo Pin Hluav Taws Xob Connector
Ethernet Au Plating DIP Sib Nqus Pogo Pin
Txawb xov tooj Bronze SMA Pogo Pin Connector
USB C2700 Brass Right Angle Hom Sib Nqus Pogo Pin
PCB Plated Ni SMT Tus pin
Android TV Box Kub Plating Soldered Hom Pogo Pin Sib Nqus

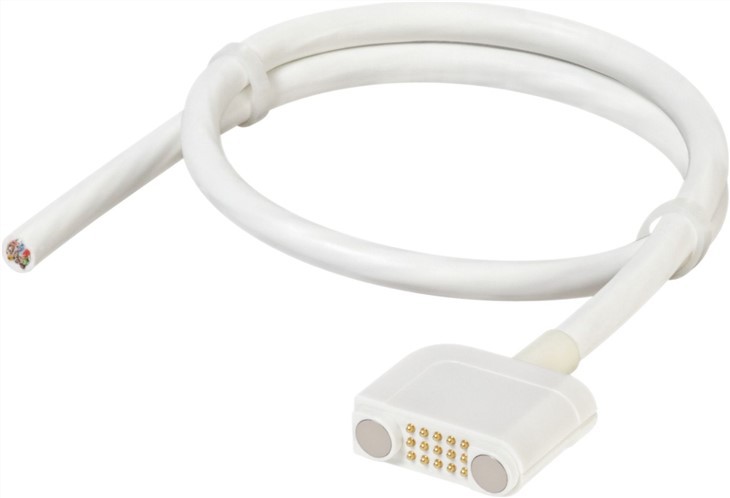

Sib nqus Pogo Pin Charging Connector
Qhov zoo
1. Nqe: Hoobkas nqi sib tw nrog zoo zoo.
2. Kev pabcuam:
2.1>Lub sijhawm luv luv, 7-10 hnub ua haujlwm, lossis raws li koj qhov ntau
2.2>100 feem pua ntawm cov khoom xa tuaj raws sij hawm rau peb cov neeg siv khoom
3. Tsawg MOQ
3.1>pcs ceev qauv qauv yog muaj
4. Nyob ze Shenzhen thiab HK, nws yooj yim rau kev thauj mus los.
5. OEM muaj, thiab txais tos ODM
6. Zoo:
Kev paub zoo thiab thev naus laus zis hauv kev tsim cov pins pogo, qee tus kws tshaj lij muaj ntau tshaj 10 xyoo ntawm kev ua haujlwm hauv kev tsim ntau yam ntawm qhov tseeb, yog li tuaj yeem muab kev pabcuam zoo rau cov neeg siv khoom
7. Kev ntsuas qib siab ntawm cov khoom siv
Xyuas kom tseeb tias tag nrho cov kev xav tau los ntawm peb cov neeg siv khoom zoo yuav ntsuas tau.
8. 100 feem pua kev tshuaj xyuas ua ntej ua zaub mov xa tuaj.
Quality Assurance
1. IQC: Cov khoom tuaj yeem tswj xyuas kom paub tseeb tias tag nrho cov khoom siv raw khoom tsim nyog.
2. IPQC:
2.1>Cov neeg ua haujlwm ua raws li daim ntawv txheeb xyuas txhua hnub los xyuas cov cav tov kom paub tseeb tias lawv nyob hauv qhov zoo thiab ua raws li cov spec kom ua cov khoom.
2.2>Siv cov neeg ua haujlwm tsim nyog thiab tsis raug cai kom paub tseeb tias qhov zoo.
2.3>Cov kws tshaj lij / pab pawg thawj coj saib xyuas qhov zoo hauv online.
2.4>IQPC raws li tus txheej txheem kev ruaj ntseg zoo los xyuas qhov zoo.
3. OQC: QC 100 feem pua zoo kuaj tom qab ntau lawm nrog cov tshuab kuaj
