Qhov txawv ntawm Pogo Pin hom thiab shrapnel connector
Feem ntau siv roj teeb connectors muaj nyob rau hauv ob hom: Pogo Pin hom thiab shrapnel hom. Lub roj teeb connector dav siv hauv cov xov tooj ntawm tes yog hom thimble, uas muaj qhov zoo hauv qab no piv nrog cov shrapnel hom roj teeb connector.

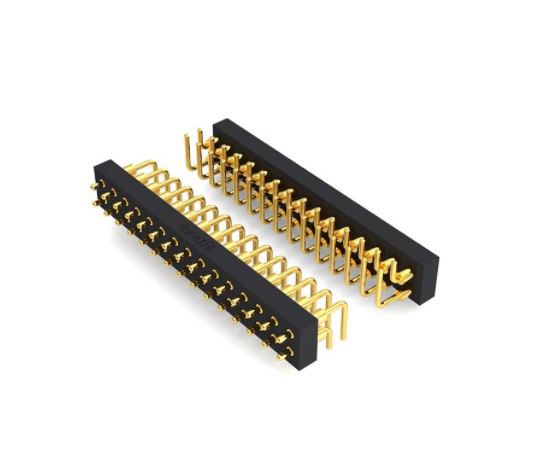

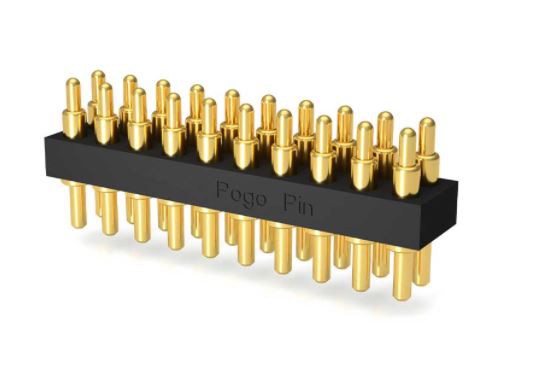

Thaum lub Pogo pin-typeconnector piv nrog shrapnel hom connector ntawm tib qhov loj, qhov compression npaum li cas yog loj thiab qhov kev sib cuag yog ruaj khov. Lub Pogo pin-hom roj teeb connector muaj kev ua haujlwm zoo dua compression ntau dua li lub caij nplooj ntoos hlav-hom connector, ua kom muaj kev ruaj ntseg ntawm kev sib cuag.
Piv nrog rau hom thimble thiab hom shrapnel siv tib qhov compression, lub thimble hom connector occupies tsawg PCB board chaw. Thaum txoj hauj lwm ua hauj lwm yog 4 hli thiab compression yog 1 hli, lub Pogo pin-hom connector yuav siv sij hawm tsawg qhov chaw ntawm lub PCB board. Nws yog ib qho ua tau kom txo cov thickness thiab miniaturization ntawm lub cev.
Thaum compressed, qhov chaw sib cuag ntawm lub thimble connector tseem tsis hloov, uas tuaj yeem tswj tau qhov kev sib txuas ruaj khov thiab tau txais hluav taws xob ruaj khov. Hom thimble yog 20,000 zaug, thiab hom shrapnel yog 5,000 zaug. Lub durability ntawm Pogo pin-hom roj teeb connector muaj zog dua li ntawm shrapnel hom. Cov duab ntawm cov yas gel thiab kev sib xyaw ua ke ntawm Pogo pincan tau teeb tsa dawb, yog li kev ywj pheej ntawm kev tsim yog qhov tseem ceeb.
Los ntawm qhov kev sib piv saum toj no, Pogo tus pin-typeconnector muaj ntau yam zoo dua li cov shrapnel hom: nws tuaj yeem siv tag nrho ntawm qhov chaw ntawm PCB board; lub thimble hom connector tuaj yeem ua kom muaj kev sib cuag siab thaum pib, uas ruaj khov thaum piv nrog cov shrapnel yav dhau los. Tiv tauj siab; thimble-type connectors muaj lub neej ua haujlwm siab dua li lub caij nplooj ntoos hlav-hom connectors; qib siab ntawm kev tsim kev ywj pheej. Hauv kev tsim cov qauv tshiab yav tom ntej, nws raug pom zoo tias cov roj teeb txuas yog tag nrho cov thimble-hom roj teeb connectors.
