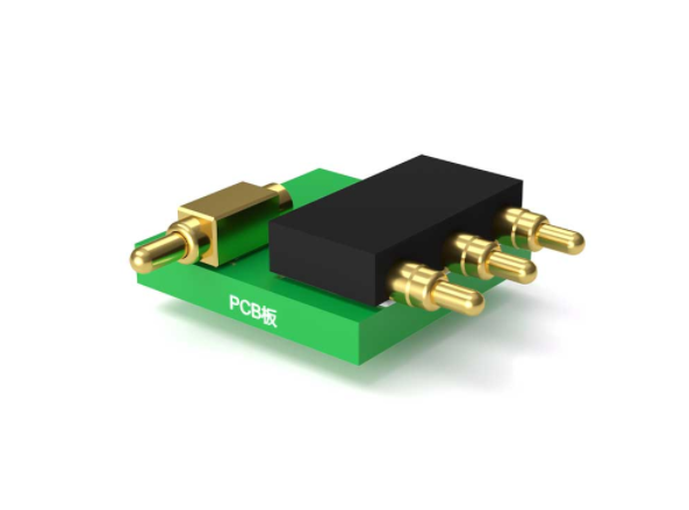

PCB Circuit Board Pogo Pin

PCB Circuit Board Pogo Pin: Ntau yam khoom siv rau Electronics Manufacturing
PCB circuit board pogo pin, tseem hu ua lub caij nplooj ntoos hlav-loaded test sojntsuam tus pin lossis caij nplooj ntoos hlav tiv tauj tus pin, yog ib qho khoom siv hluav taws xob me me thiab ntau yam uas muaj kev sib txuas hluav taws xob txhim khu kev qha ntawm lub rooj tsav xwm Circuit Court thiab cov khoom siv sib txuas. Pogo pins tau dav siv rau kev sim, kev ua haujlwm, thiab kev debugging cov khoom siv hluav taws xob thaum lub sijhawm tsim khoom, sib dhos, thiab kho cov txheej txheem.

Pogo tus pin muaj lub plunger, caij nplooj ntoos hlav, chim, thiab kev sojntsuam. Lub plunger yog qhov txav mus los uas compresses lub caij nplooj ntoos hlav thaum tus pin raug nias rau saum npoo. Lub thoob yog qhov chaw nyob ruaj ruaj uas yog lub tsev lub caij nplooj ntoos hlav thiab qhov chaw tiv tauj, uas hloov cov teeb liab hluav taws xob los ntawm lub plunger mus rau lub rooj tsavxwm.

Lub pogo tus pin lub caij nplooj ntoos hlav-loaded tsim tso cai rau nws los them rau qhov tsis raug ntawm qhov chaw, qhov chaw tsis sib xws, thiab kev hloov siab ntev rau hauv cov khoom siv mating. Tus pin lub peev xwm tu tus kheej kuj tseem pab kom muaj kev ruaj ntseg thiab tsis tshua muaj kev sib txuas ntawm kev rov ua dua.

Pogo pins tuaj nyob rau hauv ntau yam duab, qhov ntau thiab tsawg, thiab cov ntaub ntawv kom haum rau kev siv sib txawv. Lawv tuaj yeem ua los ntawm cov hlau tsis muaj steel, tooj dag, beryllium tooj liab, lossis phosphor bronze, nyob ntawm qhov yuav tsum tau ua kom muaj zog, tiv thaiv corrosion, thiab hluav taws xob conductivity. Lawv kuj tuaj yeem muaj cov lus qhia sib txawv, xws li tiaj tus, ntsia hlau, yas, lossis rab koob-style, kom phim cov mating ntaus ntawv cov ntsiab lus sib cuag.

Pogo pins tuaj yeem siv rau ntau yam haujlwm hauv kev tsim khoom siv hluav taws xob. Piv txwv li, lawv tuaj yeem siv rau kev sim ua haujlwm, qhov twg lub rooj tsav xwm Circuit Court raug soj ntsuam nrog pogo pins los xyuas qhov ua tau zoo ntawm nws cov khoom thiab cov teeb liab. Pogo pins kuj tseem siv tau rau hauv-circuit programming, qhov twg lub microcontroller los yog lub cim xeeb nti yog programmed los ntawm Pogo pins thaum nws yog soldered ntawm lub Circuit Court board.

Pogo pins kuj tseem tuaj yeem siv rau kev ntsuas ciam teb, qhov chaw tshwj xeeb kuaj teeb liab raug xa mus los ntawm pawg thawj coj saib xyuas thaj tsam ntawm cov saw siv pogo pins. Txoj kev no tso cai rau kev sim tsis muaj kev cuam tshuam ntawm pawg thawj coj saib kev sib txuas thiab kev ua haujlwm yam tsis tas yuav tsum tau nkag mus rau lub cev rau nws cov nodes sab hauv.

Hauv kev xaus, PCB Circuit Court board pogo pins yog ib qho tseem ceeb hauv kev tsim khoom siv hluav taws xob, muab kev txhim khu kev qha thiab ntau yam kev daws teeb meem rau ntau yam kev sim, kev ua haujlwm, thiab kev ua haujlwm debugging. Lawv lub caij nplooj ntoos hlav-loaded tsim, kev tu tus kheej muaj peev xwm, thiab cov yam ntxwv customizable ua rau lawv muaj kev xaiv nrov rau cov ntawv ntim siab thiab kev ntseeg siab.
