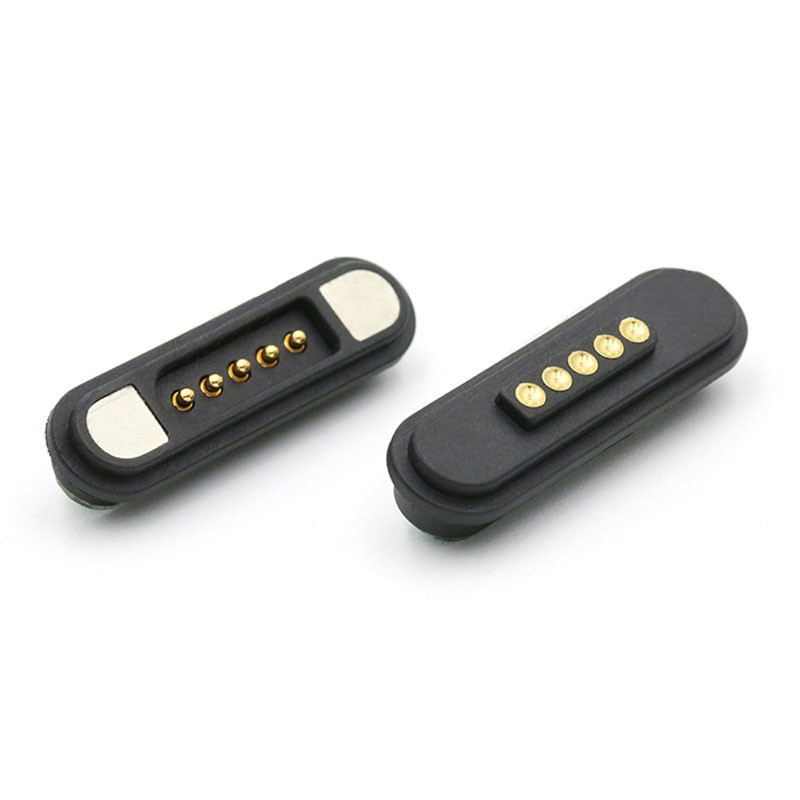

Lub caij nplooj ntoos hlav pogo pin connector daws qhov teeb meem tsim qauv li cas?
Raws li analog circuits muab txoj hauv kev rau digital circuits thiab cov khoom siv hluav taws xob tau hloov pauv los ntawm kev sib txuas ntawm kev sib txuas mus rau kev sib txuas wireless, kev tsim cov khoom tiav kuj tseem hloov ntawm desktop mus rau portable. Raws li tus qauv tsim los ntawm kev txav mus los, lub teeb hnyav dhau los ua qhov tseem ceeb. Daim ntawv thov ntawm lub caij nplooj ntoos hlav pogo pin connector tsuas yog daws qhov teeb meem no. Yog li nws zoo li cas? Tom ntej no, cia's saib.
Cov kws tshaj lij engineers ntawm Shenzhen POGO PIN connector cov chaw tsim khoom tau pib tsim thiab tsim cov qauv kuaj ua ntej, thiab tom qab ntawd superimpose lossis blindly ntsaws lawv ua lub ntsiab kev tsim kho tshuab. Qhov no yuav tsum tau Femto-level interconnect li. Cov kev xav tau ntawm kev lag luam kev kho mob thiab txawm tias cov tub rog / aerospace kev lag luam yog tsav txoj kev loj hlob ntawm cov kab ke raws li cov kev taw qhia modular kom tau raws li qhov txo qhov loj, qhov hnyav, thiab tam sim no xav tau los ntawm cov teeb liab nyuaj. Txhawm rau ua kom tau raws li cov kev cov nyom no, cov qauv txuas tshiab yuav tsum ua kom tau raws li kev sib koom ua ke ntawm kev txhim kho hluav taws xob thiab kev ua haujlwm ntev thiab txo qhov loj thiab qhov hnyav ntawm kev sib tshuam.

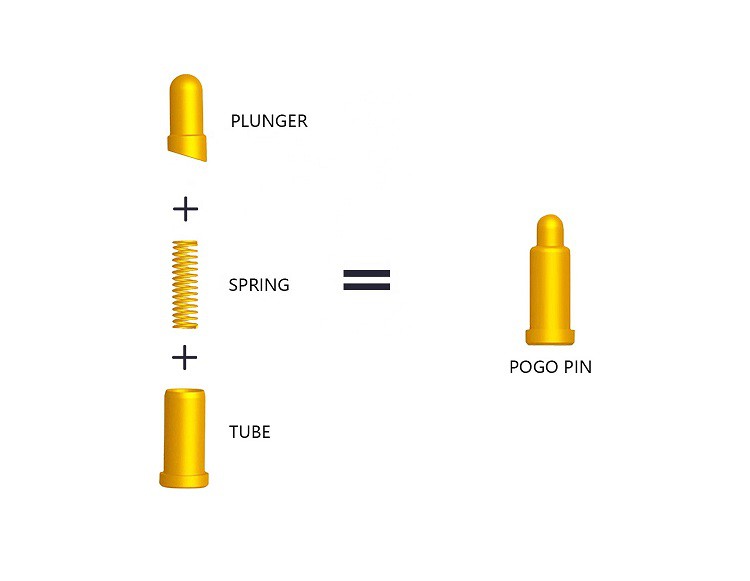

1. Qhov zoo ntawm lub caij nplooj ntoos hlav pogo pin qhov loj thiab qhov hnyav: Nrog kev txhim kho machining thiab molding cov cuab yeej thiab cov ntaub ntawv, connector manufacturers tau ntxiv txo qhov luaj li cas ntawm lub caij nplooj ntoos hlav pogo pin connectors nyob rau hauv cov nqe lus ntawm cov qauv. Kev xaiv ntawm kev tsim thiab cov khoom siv yog tus yuam sij rau kev ua tiav qhov loj me. Lub hauv paus ntawm tus tsim yog tus pin elastic. Txhawm rau tsim kom muaj zog tiv taus, tsis muaj kev tiv thaiv, thiab tswj kev ua haujlwm ntawm ntau txhiab plugs thiab unplugs, beryllium tooj liab cov ntaub ntawv nrog tshwj xeeb tensile annealing zog yuav tsum tau siv. Cov ntsiab lus tseem ceeb ntawm cov tuab, ntev, thiab cov duab ntawm beryllium tooj liab tuaj yeem ua kom lub neej ntev thiab kev ua haujlwm ntev ntawm micro connector pins.
Lub plhaub rwb thaiv tsev feem ntau yog txhaj tshuaj molded kua siv lead ua polymer, thiab qee cov qauv qub siv polyphenylene sulfide. Thaum lub 0.025" pitch ua rau lub rwb thaiv tsev ntawm cov pins tsuas yog 10-11 mils, cov khoom siv insulating no tseem muaj kev tuav ruaj khov thiab muaj zog hluav taws xob zoo. Kev ntseeg siab ntawm PogoPin connector lub cev tuaj yeem siv tau rau plug-in thiab tsis tshua muaj kev vibration Daim ntawv thov yog tsim los ntawm cov ntaub ntawv insulating, tab sis feem ntau cov kev vibration siab thiab kev cuam tshuam loj yuav tsum muaj cov vaj tse hlau.
2. Lub caij nplooj ntoos hlav pogo pin yog ruaj khov thiab txhim khu kev qha: durability nyob ntawm tus qauv tsim zoo. Kev quab yuam thiab kev nrawm yog qhov tseem ceeb rau kev ntsuas lub zog ntawm lub caij nplooj ntoos hlav pogo pin connectors hauv kev siv hnyav. Vim yog qhov tsim nyog mounting bracket, nano caij nplooj ntoos hlav pogo pin connector tuaj yeem hla kev vibration thiab poob siab ntawm ntau tshaj 10000Gs, xws li nyob rau hauv hluav taws kub thiab tua.
Nrog rau kev loj hlob sai ntawm cov neeg siv khoom siv hluav taws xob, khoom siv hluav taws xob tsheb, thiab kev sib txuas lus davhlau ya nyob twg kev lag luam thiab kev hloov pauv tas mus li ntawm lub ntiaj teb connector tsim muaj peev xwm mus rau Asia thiab Tuam Tshoj, Asia tau dhau los ua qhov chaw zoo tshaj plaws rau kev lag luam txuas, thiab Tuam Tshoj yuav dhau los ua lub ntiaj teb kev loj hlob sai tshaj plaws. connector Thiab muaj peev xwm ua lag luam loj dua. kuv lub teb chaws' s pogo pin connectors feem ntau yog nruab nrab-kawg, thiab high-end connectors muaj ib tug kuj tsawg, tab sis qhov kev thov yog nce sai heev. Tam sim no, kuv lub teb chaws' kev txhim kho txuas txuas yog nyob rau lub sijhawm hloov pauv ntawm kev tsim khoom mus rau kev tsim. Nyob rau hauv lub tshav pob ntawm high-end connectors, computers thiab peripheral khoom muaj ib tug loj ua lag luam qhia, thiab cov tsheb thiab cov khoom kho mob connector kev lag luam kuj nyob ib tug ntau dua. Kev lag luam hauv tsheb sib txuas ua lag luam koom nrog kwv yees li 20%, thiab qhov nrov nrov ntawm 3G thiab 4G xov tooj ntawm tes ua rau qhov kev thov rau high-end connectors loj hlob sai. Txoj kev loj hlob ntawm pogo pin connector kev lag luam yuav unstoppable.
Dab tsi yog lub luag haujlwm tseem ceeb ntawm springs? Muaj ntau hom springs. Raws li qhov xwm txheej ntawm cov khoom uas lawv dais, cov springs feem ntau muab faib ua plaub hom: extension springs, compression springs, torsion springs, and bending springs. Raws li lub caij nplooj ntoos hlav zoo, nws tuaj yeem muab faib ua coil springs, disc springs, nplhaib springs, nplooj springs, coil springs, thiab lwm yam. Cov npe nyob rau hauv lub rooj yog cov hom pib gas springs rau ntau yam springs.
Caij nplooj ntoos hlav yog ib hom elastic caij uas ua haujlwm los ntawm nws tus kheej loj elastic deformation. Nws yog dav siv nyob rau hauv txhua yam ntawm cov tshuab. Nws lub luag haujlwm tseem ceeb yog:
1. Tswj lub zog ntawm cov tshuab, xws li lub caij nplooj ntoos hlav uas tswj qhov qhib thiab kaw ntawm lub tog raj kheej valve nyob rau hauv lub combustion engine, thiab tswj lub caij nplooj ntoos hlav nyob rau hauv lub clutch;
2. Absorb vibration thiab cuam tshuam lub zog, xws li damping springs nyob rau hauv ntau lub tsheb thiab springs ntawm ntau yam buffers, thiab lwm yam.;
3. Khaws thiab tso tawm lub zog, xws li moos caij nplooj ntoos hlav, ntsia liaj qhov rooj, thiab lwm yam.;
4. Ntsuas qhov loj ntawm lub zog, xws li cov nplais caij nplooj ntoos hlav thiab lub caij nplooj ntoos hlav hauv dynamometers, thiab lwm yam.
Caij nplooj ntoos hlav yog ib qho khoom siv uas siv elasticity los ua haujlwm. Cov khoom ua los ntawm cov ntaub ntawv elastic deform nyob rau hauv qhov kev txiav txim ntawm sab nraud quab yuam thiab rov qab mus rau lawv cov qub zoo tom qab tshem tawm cov quab yuam sab nraud. Kuj hu ua" caij nplooj ntoos hlav". Feem ntau ua los ntawm caij nplooj ntoos hlav steel. Hom springs yog complex thiab ntau haiv neeg. Raws li lawv cov duab, feem ntau yog kauv springs, scroll springs, nplooj springs, thiab tshwj xeeb-zoo li tus springs.
