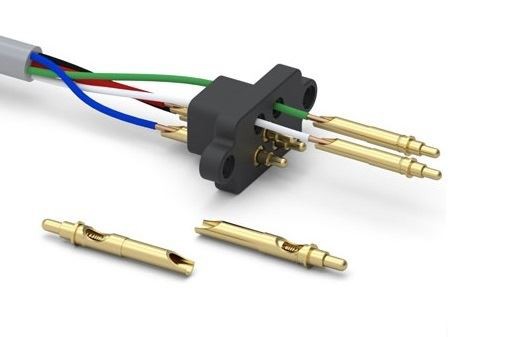

Welding Skills of Pogo Pin Poj Niam Connector
Vim tias qhov me me ntawm tus poj niam connector, plaub tus pins ntawm pogo pin connector interface feem ntau nyuaj rau solder, thiab yog tias qhov kev ncua deb ntawm cov pins yog ze dhau thaum lub sij hawm soldering, ob qho ntawm lawv yuav yog inadvertently Cov pins yog soldered ua ke. Tau ntsib nrog qhov teeb meem no, koj tuaj yeem siv flux los so cov hlua sib txuas ua ntej soldering. Ua tib zoo tsis txhob lo cov flux ntau dhau, vim tias nws nyuaj rau so tom qab, thiab lub luag haujlwm ntawm cov flux tsis yog tsuas yog ua kom lub ntsej muag smoother tab sis kuj kho cov nyhuv uas qhov chaw nres nkoj USB tsis yooj yim txav thaum soldering.
Tom qab siv cov flux, siv cov hlau soldering los ntxuav cov tin ntawm txhua qhov sib txuas. Lub hom phiaj yog los tiv thaiv cov tin ntau dhau los ntawm kev ua kom tsis muaj tseeb. Thaum lub sij hawm no, tsuas yog me ntsis tin yog tshuav nyob rau saum npoo ntawm lub solder sib koom.
Tom qab ntawd muab tus pogo tus pin poj niam txuas rau ntawm lub ncoo, thiab maj mam muab tso rau hauv txoj haujlwm sib dhos. Tom qab tso nws, nias tus pin nrog ib tug soldering hlau maj mam. Tom qab ob peb feeb, nws tuaj yeem raug soldered.
Thaum soldering lub pogo pin poj niam connector, xyuam xim rau lub lag luam quab yuam kom tsis txhob muaj zog heev, kom tsis txhob ua rau cov pins ntawm tus poj niam lub qhov (socket) yuav yooj yim khoov los ntawm kev quab yuam, thiab cov ntaub qhwv yuav qhia unevenness, uas ua rau tus poj niam tsis muaj tseeb. welding lossis cuav vuam thaum vuam lub rooj zaum.
Nco ntsoov tias tom qab qhov kawg vuam tiav lawm, koj yuav tsum tau siv ib tug multimeter los ntsuas lub diode los xyuas seb lub vuam puas zoo. Piv txwv li, txawm hais tias muaj kev xoob lossis tsis muaj tseeb ntawm cov pins, thiab yog tias muaj qhov tshwm sim, qhov yuav tsum tau rov ua dua.
