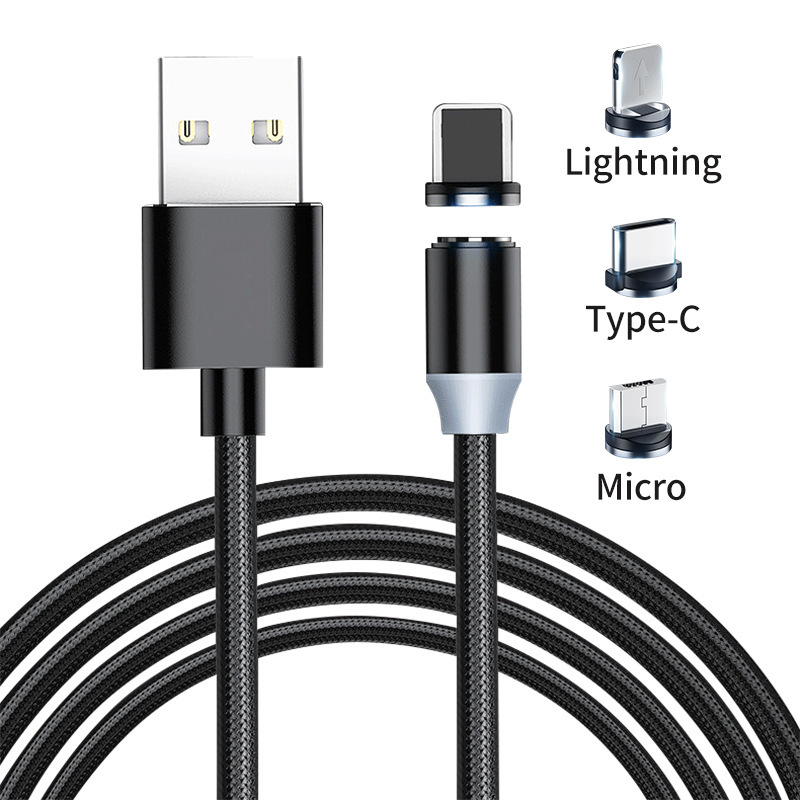

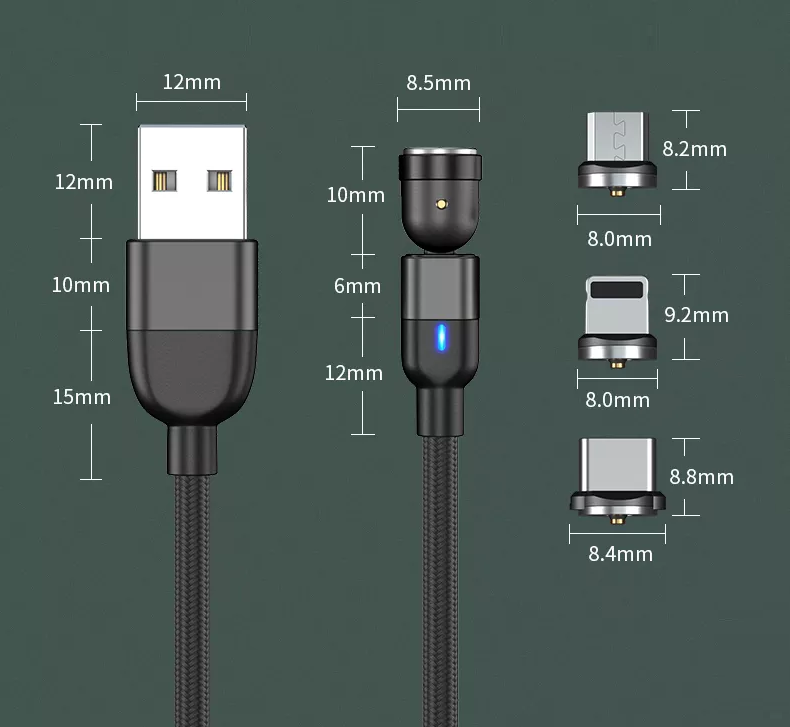

Hom-C connector yog ib qho kev daws teeb meem rau cov ntaub ntawv, lub zog, thiab A / V daim ntawv thov, nws qhov profile slim yog tsim rau cov khoom siv txawb, thiab nws muaj zog txaus rau cov ntawv thov kev lag luam. -C interface, vim hais tias ntawm kev nce daim ntawv thov scenarios ntawm Type-C connectors, kev ua tau zoo yuav tsum tau ua nyob rau hauv tej yam xws li high-frequency signals, mechanical yam ntxwv, hluav taws xob kev ua tau zoo, thiab ib puag ncig hloov. Yog li ntawd, cov neeg tsim khoom xav tau ib qho kev xeem tiav thaum tsim cov khoom lag luam. Daim ntawv pov thawj txoj kev npaj thiab kev pabcuam thiab kev sib tham ntawm cov chaw soj nstuam tshaj lij (cov ntaub ntawv kev lag luam 丨GRL nthuav dav Dongguan kuaj thiab ntxiv cov peev xwm kuaj tshiab) tuaj yeem xyuas kom meej tias cov khoom ua tau raws li cov xwm txheej zoo thiab ua kom pom cov kev ua haujlwm zoo; Cov chaw soj ntsuam kev tshaj lij thiab cov ntawv pov thawj tseem yuav kuaj (Kev Ntsuas Hluav Taws Xob), Kev Ntsuas Mechanical (Mechanical Test), thiab Environmental Test (Environmental Test) yuav tsum tau xeem cov ntsiab lus los ua cov ntawv pov thawj cuam tshuam los xyuas kom meej tias cov khoom lag luam tuaj yeem ua tau raws li cov qauv ntawm lub koom haum, cov chaw tsim khoom nyob rau hauv cov ntaub ntawv pov thawj cuam tshuam thiab chaw kuaj xyuas hauv cov txheej txheem, cov khoom tsis zoo yuav raug sau los pab txhawb kev tsim khoom tom ntej; los xyuas kom meej qhov kev ntseeg tau thiab txuas ntxiv ntawm cov khoom, hnub no peb yuav luv luv nkag siab txog cov txheej txheem tsim khoom ntawm no interface
Cov lus piav qhia luv luv ntawm cov txheej txheem tsim khoom ntawm hom-C txuas, cov txheej txheem tuaj yeem muab faib ua plaub theem tseem ceeb: stamping, electroplating (PlaTIing), txhaj tshuaj molding (Molding), thiab sib dhos (Assembly).
Stamping
Cov txheej txheem tsim khoom rau Type-C connectors feem ntau pib nrog lub ntsaws ntsaws. Stamping yog raws li qhov loj thiab nruab nrab-qhov loj-qhov loj-ceev stamping tshuab, thiab Type-C connectors (plugs) yog stamped los ntawm nyias hlau strips. Ib qho kawg ntawm cov kauj loj ntawm cov hlau sawb xa mus rau pem hauv ntej kawg ntawm lub tshuab xuas nrig ntaus, thiab lwm qhov kawg yog qhwv ib ncig ntawm lub log eccentric hla lub hydraulic xovxwm ua haujlwm ntawm lub tshuab xuas nrig ntaus.
Electroplating txheej txheem (PlaTing)
Tom qab lub connector pin stamping tiav lawm, cov txheej txheem tom ntej yog cov txheej txheem electroplating (PlaTIing); Nyob rau theem no, cov khoom siv hluav taws xob sib txuas ntawm cov khoom sib txuas yuav raug coated nrog ntau yam khoom siv hlau coatings, npib tsib xee electroplating, tin electroplating, thiab semi-kub plating, zam huab cua oxidation thiab txhim kho conductivity. Ib qho teeb meem zoo ib yam li lub sij hawm stamping, xws li tus pin twisting, tawg, los yog deformation, kuj tshwm sim thaum stamped pins tau noj rau hauv cov khoom siv electroplating. Cov pins tseem yuav cuam tshuam, tawg, lossis deformed thaum lub sij hawm tag nrho cov txheej txheem ntawm kev pub cov pins stamped rau hauv cov khoom siv electroplating. Thiab qhov tsis txaus ntawm qhov zoo no yog qhov yooj yim heev los kuaj xyuas raws li cov cuab yeej saum toj no. Txawm li cas los xij, rau feem ntau cov neeg muag khoom pom kev siv tshuab, ntau yam tsis zoo hauv cov txheej txheem electroplating tseem yog "tsis-mus" rau kev tshuaj xyuas. Hom-C connector manufacturers xav tau lub tshuab tshuaj ntsuam xyuas uas tuaj yeem kuaj xyuas ntau yam tsis sib xws, xws li khawb me me thiab pinholes, ntawm plated nto ntawm cov pins connector. Thaum cov teeb meem no tau yooj yim txheeb xyuas ntawm lwm yam khoom (xws li txhuas tuaj yeem hauv qab lossis lwm qhov chaw tiaj tus); vim qhov tsis sib xws thiab lub kaum sab xis tsim ntawm feem ntau hom-C connectors, nws yog ib qho nyuaj rau kev soj ntsuam cov tshuab kom paub cov kev hloov maj mam uas yuav tsum tau muaj duab.
Txhaj tshuaj molding (Molding)
Txhaj tshuaj molding (Molding) yog hais txog lub thawv yas lub rooj zaum ntawm lub tshuab hluav taws xob USB uas tsim los ntawm kev qhia cov yas molten rau hauv cov khoom siv hlau log tsheb, thiab tom qab ntawd ceev cov tub yees thiab sib sau. Thaum cov yas molten tsis ua rau lub membrane, thiaj li hu ua "tawg" tshwm sim; qhov no yog ib qho kev tsis xws luag uas yuav tsum tau kuaj xyuas ntawm theem txhaj tshuaj molding. Lwm yam tsis xws luag suav nrog kev sau lossis ib feem ntsaws lub qhov (cov no yuav tsum tau khaws cia kom huv thiab du kom zoo rau kev sib txuas rau cov pins tom qab sib dhos). Lub tshuab tsis pom kev rau kev tshuaj xyuas tom qab txhaj tshuaj zoo yog qhov yooj yim rau kev siv, vim tias cov dej xau hauv cov tuav thiab cov ntsaws ntsaws ntsaws tuaj yeem txheeb xyuas tau yooj yim siv lub teeb rov qab. Nws yog ib qho tsis xws luag uas yuav tsum tau kuaj xyuas hauv cov txheej txheem txhaj tshuaj molding. Lwm qhov tsis zoo muaj xws li tag nrho lossis ib feem ntawm qhov thaiv ntawm lub qhov (uas yuav tsum tau ceev kom huv si thiab tsis muaj kev cuam tshuam rau kev sib raug zoo nrog cov pins hauv kev sib dhos zaum kawg).
Kev sib dhos
Cov txheej txheem kawg ntawm Type-C connector manufacturing yog cov khoom tiav los ua ke (Assembly). Nws muaj ob txoj hauv kev los txuas thiab sib sau cov pins nrog cov txheej txheem electroplating thiab txhaj tshuaj molded lub rooj zaum: ib tus neeg ntsaws lossis cov ntsaws ntsaws. Ib tus pin txuas rau ib zaug; cov plugs ua ke yog tsim rau hauv ib khub ntawm plugs los tsim ib khub ntawm plugs, uas txhais tau hais tias ob peb pins txuas nrog lub qhov (socket) ntawm ib lub sij hawm. Txawm hais tias txoj kev sib txuas twg yog siv los sib sau ua ke, cov chaw tsim khoom yuav tsum kuaj xyuas seb tag nrho cov plugs puas muaj qhov xau thiab qhov chaw raug thaum lub sij hawm sib dhos, kom ntseeg tau tias tag nrho cov pins tsis tuaj yeem muaj tag nrho cov kev ua yuam kev thiab xau thiab qhov tseeb qhov chaw yuav tsum tsim nyog.
Type-C connector test verification process
Insertion quab yuam

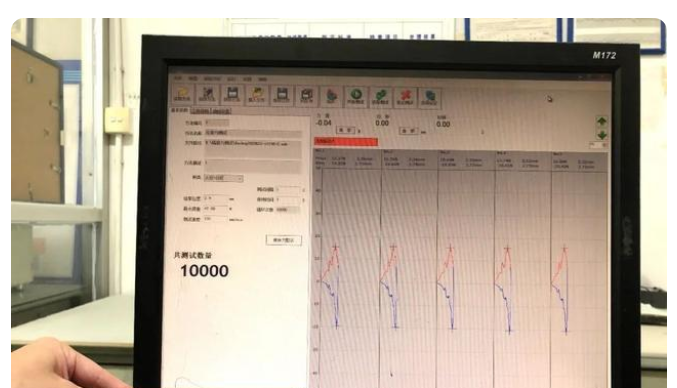

Qhov kev sib txuas ntawm lub zog sib txuas yog hais txog lub zog uas yuav tsum tau ntxig thiab rub tawm cov khoom siv hluav taws xob ntawm ob qho kawg ntawm cov txiv neej thiab poj niam mating kawg. Cov kev ntsuam xyuas hauv qab no siv rau lub zog ntxig, lub zog tshem tawm, lub zog tuav lub zog, thiab siv lub zog ntsaws ntsaws yog ib qho tseem ceeb ntawm cov cuab yeej thiab qhov ntsuas ntawm qhov sib txuas, thiab nws qhov loj me cuam tshuam qhov kev xav ntawm qhov txuas thiab nws cov qauv tsim sab hauv. Tam sim no, lub plug-in quab yuam ntawm board-to-board connector, uas yog lub feem ntau lug siv lub xov tooj ntawm tes, Lub shrapnel microneedle module uas muaj peev xwm kis tau tam sim no thiab conduction teeb liab yuav siv tau nyob rau hauv lub xeem, uas yog zoo rau kev ruaj ntseg. ntawm qhov kev xeem. Nws tuaj yeem xa cov tam sim no loj hauv thaj tsam ntawm 1-50A, qhov overcurrent ruaj khov thiab du, thiab nws muaj kev sib txuas zoo. Tam sim no peb xav tau Rau qhov kev sib tw quab yuam, peb thawj zaug sim cov kav ntev 10, 000 zaug, thiab cov xwm txheej yog 200 zaug rau ib teev thiab tsib caug teev.
Lub sijhawm xeem yog 50 teev, nrog rau qhov nruab nrab ntawm 200 zaug ib teev
high-frequency xeem
Hais txog kev ua haujlwm, USB siv los tsuas yog ib lub cable, tab sis nrog kev cuam tshuam ntawm Emark nti ntawm USB3.1, lub cable hnub no yuav tsum tau hais tias yog ib qho khoom siv txuas, yog li qhov nyuaj yog txawv kiag li. Kev ua haujlwm ntawm lub nti yuav tsum muaj zog dua (encoding, compression, thiab lwm yam), tab sis qhov tseeb, feem ntau ntawm cov cables USB tam sim no yeej ib txwm nyob hauv online, thiab cov haujlwm yog xa cov ntaub ntawv (qhov tseeb ntawm qhov yuav tsum tau muaj ntau zaus ntawm lub ntsaws. Kev cuam tshuam me ntsis ntawm kev xa cov ntaub ntawv.Yog li ntawd, tshwj tsis yog ib feem xa mus rau lub koom haum rau kev sim, cov khoom sib txuas ua haujlwm ib txwm ua tsis tau ntsuas qhov kev ua haujlwm siab impedance), them nyiaj rau lub cuab yeej (tam sim no qhov ua haujlwm loj tshaj ntawm peb daim ntawv thov yog kom them nyiaj rau cov cuab yeej, txawm hais tias muaj cov ntaub ntawv muaj nuj nqi, qhov tseeb daim ntawv thov scenario yog heev Yog tias koj xav tiv thaiv cov haujlwm no, koj yuav tsum pib los ntawm kev tsim thiab tsim daim ntawv thov ntawm cov khoom sib txuas, yog li muaj ntau daim ntawv thov tsim hauv lub connector. Cov ntaub ntawv, rwb thaiv tsev, tiv thaiv luv luv ntawm cov terminals thiab plhaub, thiab qee cov khoom siv hluav taws xob qis yuav raug tshem tawm ncaj qha, lawv hu ua kev sib ntaus sib tua version connectors. cov kev cai tsis pom zoo siv lawv, thiab yuav muaj teeb meem tsis kawg.
