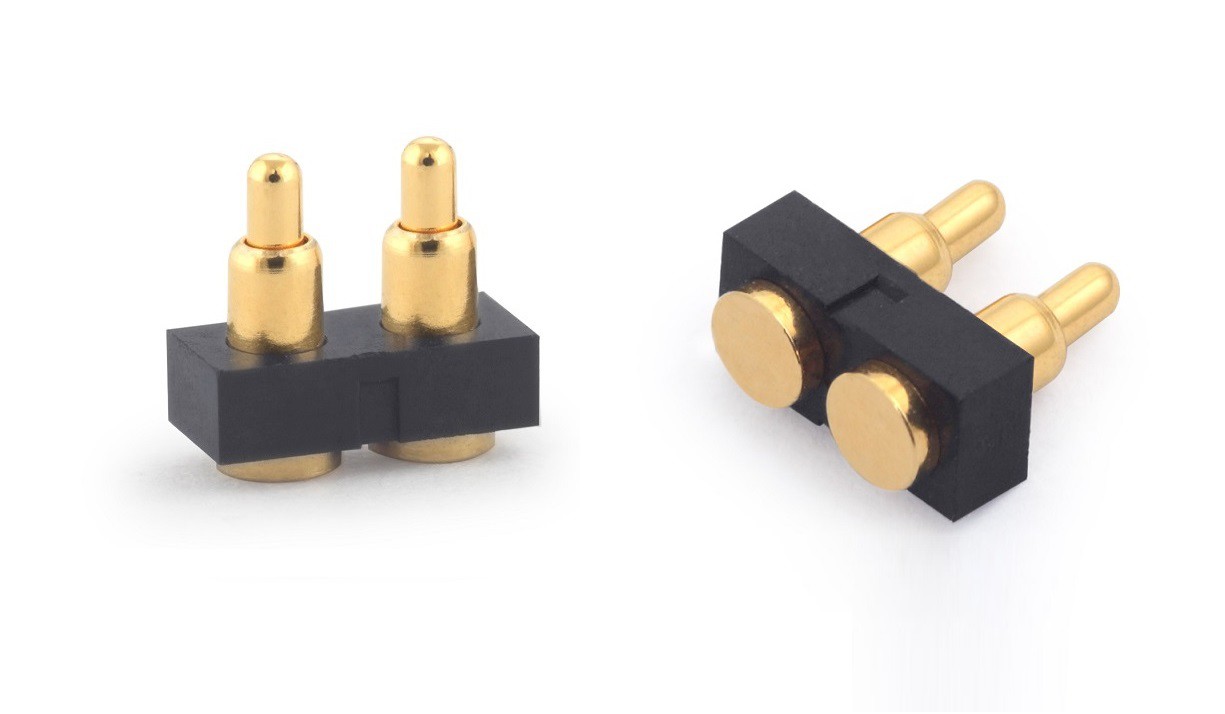

Pogopin connector yog lub kiv puag ncig hauv kev siv tshuab
Ib qho kev hloov pauv hauv pogopin pogo pin connector thev naus laus zis, raws li analog circuits muab txoj hauv kev rau digital circuits thiab cov khoom siv hluav taws xob hloov pauv los ntawm kev sib txuas ntawm kev sib txuas mus rau kev sib txuas wireless, tus tsim ntawm tag nrho cov cuab yeej tseem tab tom tsim los ntawm desktop mus rau portable. Raws li cov qauv tsim txav mus rau kev txav mus los, qhov system durability yog qhov tseem ceeb heev.
Cov kws tsim qauv tsim qauv tau pib tsim thiab tsim cov qauv kuaj ua ntej, uas tom qab ntawd muab tso rau lossis qhov muag tsis pom kev ua cov txheej txheem tseem ceeb. Qhov no yuav tsum tau nanoscale interconnection li. Cov neeg tsim khoom hauv kev kho mob thiab txawm tias tub rog / aerospace kev lag luam tau thawb cov tshuab hauv qhov kev coj ua no kom ua tau raws li qhov txo qhov loj me, qhov hnyav, thiab tam sim no xav tau rau cov teeb liab nyuaj. Txhawm rau ua kom tau raws li cov kev cov nyom no, cov qauv txuas tshiab yuav tsum ua kom haum rau kev sib xyaw ua ke ntawm kev txhim kho hluav taws xob thiab kev ua haujlwm ruaj khov thaum txo qhov loj thiab qhov hnyav ntawm kev sib tshuam.
Qhov loj thiab qhov hnyav kom zoo dua
Kev txhim kho machining, cov cuab yeej molding, thiab cov khoom siv tau ua rau txo qis hauv qhov txuas ntxiv hauv kev tsim kho. Txawm hais tias qhov loj thiab qhov hnyav ntawm ob qho tib si ntsib MIL-PRF-83513, 21-txoj hauj lwm nano miniature connector hnyav tsuas yog 0.4g piv rau qhov sib npaug me me D-shaped connector hnyav 2.60g. Tsis tas li ntawd, 37-txoj hauj lwm me me D-shaped connectors yuav tsum tau 4 npaug ntau qhov chaw tshaj 37-txoj hauj lwm board mount los yog luam board connectors.
Kev tsim qauv thiab kev xaiv cov khoom siv yog qhov tseem ceeb rau kev txo qhov loj me. Nyob rau hauv lub plawv ntawm tus tsim yog cov elastic pins. Cov khoom siv tooj liab beryllium nrog cov khoom tshwj xeeb tensile annealing yuav tsum tsim kom muaj kev sib cuag nrog lub zog, tsis tshua muaj kev sib cuag, thiab tswj kev ua tau zoo tshaj ntau txhiab lub voj voog mating. Cov ntsiab lus tseem ceeb rau beryllium tooj liab tuab thiab ntev thiab cov duab ua kom lub neej ntev thiab kev ua haujlwm ntev ntawm microminiature connector pins.
Lub plhaub insulating feem ntau yog txhaj tshuaj molded kua siv lead ua polymer, nrog qee cov qauv qub siv polyphenylene sulfide. Thaum lub 0.025" pitch tshwm sim nyob rau hauv tsuas yog 10 ~ 11 mils ntawm insulator ntawm pins, hom rwb thaiv tsev no tseem muaj siab tuav thiab siab hluav taws xob dielectric zog. Kev ntseeg siab ntawm PogoPin connector lub cev tuaj yeem siv tau rau cov plug-in thiab tsis tshua muaj kev vibrations ua los ntawm cov ntaub ntawv insulating, tab sis feem ntau cov kev vibration siab thiab kev poob siab yuav tsum muaj cov ntaub ntawv hlau.
Kev ntseeg tau ntev
Durability nyob ntawm qhov zoo installation tsim. Kev quab yuam thiab kev nrawm yog qhov tseem ceeb hauv kev sim lub zog ntawm PogoPin connectors hauv kev siv hnyav. Ua tsaug rau qhov tsim nyog mounting brackets, Nano-PogoPin connector tuaj yeem hla dhau 10000Gs ntawm kev co thiab kev poob siab, xws li hauv hluav taws thiab tua.
Nano ncig connector
Micro ncig connectors (0.050" suab) yog loj piv rau nano ncig PogoPin connectors. Thaum haum nrog pins thiab sockets nrog 0.025" suab, nyob rau hauv tib lub voj voog, siv 4 zaug ntxiv interconnect li. Feem ntau ntawm cov tshiab circuits yuav tsum tau tsawg dua 1A ntawm tam sim no vim hais tias cov kev ua digital tso cai rau me me gauge xov hlau siv nyob rau hauv lub cable los ua ke kom haum rau nano ncig connectors. Tag nrho qhov hnyav thiab txoj kab uas hla ntawm txoj kab nruab nrab yog li txo qis heev. Ib qho txiaj ntsig ntxiv ntawm nano-cables yog qhov hloov tau yooj yim, vim tias cov kab me me ntawm cov kab hluav taws xob me me yooj yim dua rau txoj hauv kev hauv qhov chaw muaj kev txwv hnyav.
Muaj ntau ntau yam ntawm nano-circular connectors nyob ntawm daim ntawv thov, lub plhaub hlau hom nano-circular connectors yog qhov ruaj tshaj plaws, nrog zoo heev strain nyem thiab tuav mechanism. Lawv muaj 360 ferrules rau shielded cables thiab yog ib puag ncig kaw los tiv thaiv impregnation. Feem ntau, lawv yog siv los txuas cov chaw taws teeb ntes, sensors, thiab ntsuas ntsuas rau pem hauv ntej vaj huam sib luag ntawm lub cuab yeej. Lub nano-circular connectors yog molded los yog ntsia rau hauv lub system engineer' nws tus kheej ntsuas. Txoj hauv kev no txuag tau ntau qhov chaw thiab tso cai rau lub cuab yeej lossis lub tshuab ntes kom muaj nws tus kheej ua tiav lub cev muaj zog thiab cov khoom siv sib txuas.
