Cov ntsiab lus tseem ceeb ntawm kev tsim lub caij nplooj ntoos hlav pogo pin

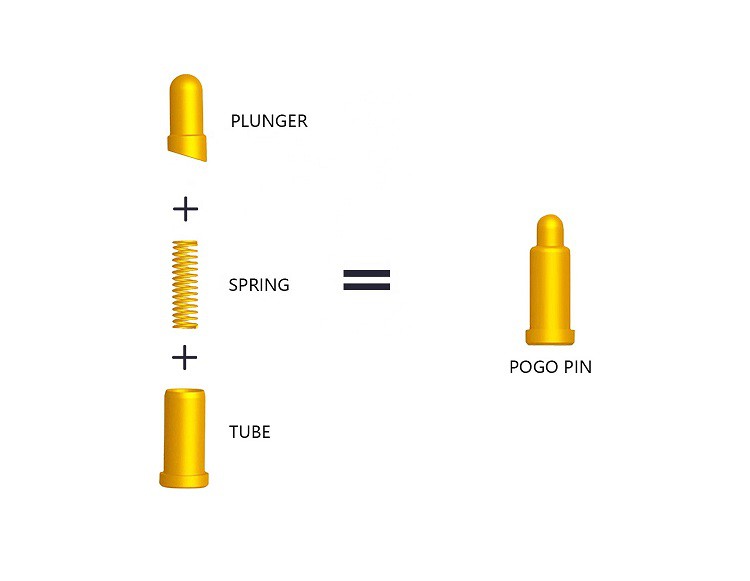

Ib, caij nplooj ntoos hlav pogo pin caij nplooj ntoos hlav
Lub caij nplooj ntoos hlav lub caij nplooj ntoos hlav thimble yog tsim los ntawm beryllium tooj liab, stainless hlau, thiab piano hlau hlau. Ntau yam ntaub ntawv muaj lawv tus yam ntxwv. Hauv kev tsim lub caij nplooj ntoos hlav, qee qhov kev txiav txim siab yuav tsum tau ua: ua haujlwm kub, impedance, thiab elasticity yuav tsum. Yuav luag tag nrho cov springs yog silver-plated. Txhawm rau kom muaj kev ua tau zoo dua, kev kho kub-plated yog siv. Kub tuaj yeem txhim kho hluav taws xob zoo dua thiab ua haujlwm siab thermal, thiab tiv thaiv oxidation thiab corrosion.
Ob, caij nplooj ntoos hlav pogo pin tube
Lub koob raj ntawm lub caij nplooj ntoos hlav thimble yog qhov sib sib zog nqus tig. Feem ntau, nws yuav tsum mus dhau ob kauj ruam ntawm nickel plating thiab kub plating thaum nws yog electroplated. Lub thickness ntawm cov nickel hauv qab kev kho mob feem ntau yog 1 ~ 2 microns (40u=1 micron raws li niaj zaus), thiab kub plating yog txheej txheej txheej txheej txheej txheej nrog thickness ntawm 0.1 ~ 1.0 microns. Rau me me-inch thiab ntev qhov muag tsis pom-qhov raj, muaj kev sib tw thaum electroplating sab hauv phab ntsa. Feem ntau, ib sab qhov yog qhib rau hauv qab kawg kom cov plating tov tag nrho reflow nyob rau hauv qab ntawm lub raj los xyuas kom meej tias lub hauv qab ntawm lub puab phab ntsa raj tuaj yeem tso nyiaj kub. Los yog qhia ncaj qha rau cov neeg siv khoom ntawm qhov piv txwv ntawm kev tsim: ntev thiab sab hauv txoj kab uas hla ntawm cov yeeb nkab.
Peb, caij nplooj ntoos hlav pogo pin plunger
Lub koob ncej ntawm lub caij nplooj ntoos hlav thimble yog tsim los ntawm kev tig thiab milling cov khoom siv tooj liab. Nws yog qhov pib kub-plated, uas yog txoj kev kho mob nyiam, thiab kub nws tus kheej muaj qhov zoo tshaj plaws conductivity thiab oxidation tsis kam. Tsis tas li ntawd, lub thickness ntawm cov kub plating yuav cuam tshuam rau lub neej ntawm tag nrho cov khoom. Raws li kev xav txog tus nqi, lub thickness ntawm cov nickel-puag kev kho mob thiab kub plating yuav raug xaiv. Tau kawg, muaj qee qhov kev daws teeb meem electroplating, xws li rhodium plating, palladium, thiab lwm yam khoom zoo. Cov khoom sib txawv yuav muaj kev xav tau sib txawv.
Plaub, lub caij nplooj ntoos hlav thimble los ua ke
Tom qab cov khoom tiav ntawm lub caij nplooj ntoos hlav thimble yog tsim, nws yuav tsum tau sib sau ua ke los ua ib lub caij nplooj ntoos hlav thimble connector. Cov terminals ntawm lub caij nplooj ntoos hlav thimble connectors feem ntau yog ua los ntawm yas.
