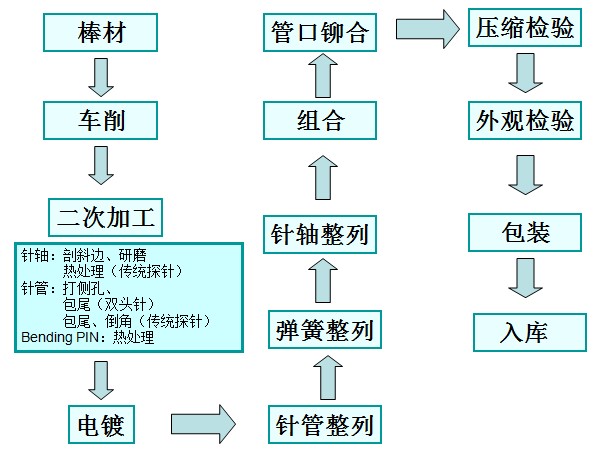

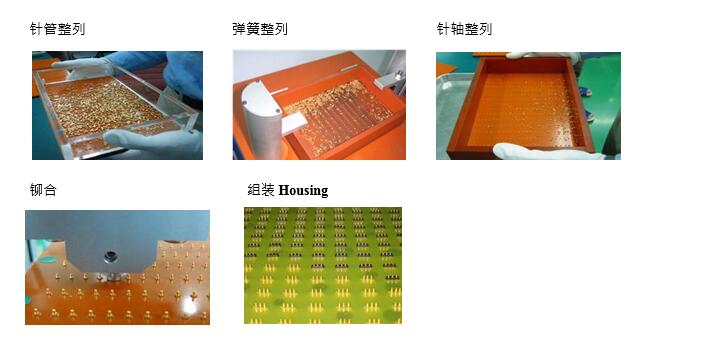

Pogo Pin Connector Production Process
Koob ncej / tube khoom:
Lub luag haujlwm tseem ceeb ntawm cov khoom sib txuas yog tias tus naj npawb ntawm lub sij hawm teeb liab conduction thiab plugging thiab unplugging yog siab, yog li cov conductivity thiab elasticity (yield zog) ntawm cov khoom kuj yuav tsum tau.
1-1: Brass (BRASS): tooj liab-zinc alloy, nws cov conductivity zoo, cov conductivity yog li ntawm 26 feem pua ~ 29 feem pua (IACS), raws li qhov feem ntawm tooj liab yuav muab faib ua C2680 (JIS) thiab C3604 , C3601 (yuav tsum tau kho cua sov)
1-2: Phosphor Bronze (PHOSPHOR BRONZE): tooj liab-tin alloy, nws conductivity yog phem tshaj tooj dag, qhov conductivity yog li ntawm 13 feem pua. Tab sis nws elasticity thiab yooj yog zoo
Nws tsim nyog rau cov kav dej nrog cov txheej txheem kos duab, thiab nws cov kev faib tawm tuaj yeem muab faib ua C5440, C5191, thiab C5210 raws li cov ntsiab lus tin. Qhov siab dua cov ntsiab lus ntawm tin, qhov ua tau zoo dua thiab zoo dua elasticity.
1-3: Kub-kho tooj liab alloys: Piv txwv li, beryllium tooj liab (BERYLLIUM ALLOY) muaj hluav taws xob zoo thiab elasticity, tab sis nws tus nqi siab.

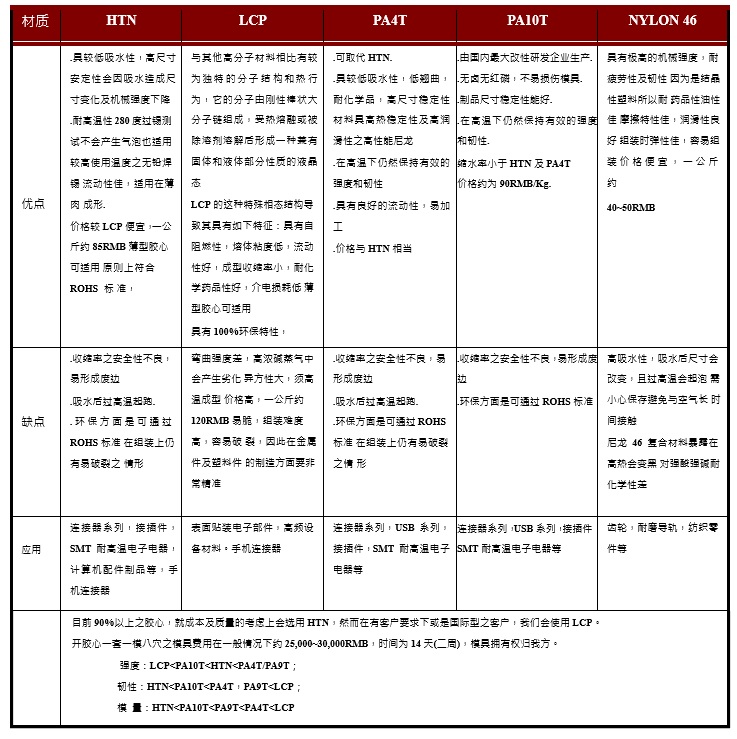

Cov ntaub ntawv siv rau Tsev & Cap:
Muab cov qauv tseem ceeb thiab rwb thaiv tsev ntawm lub connector, thiab haum rau Pogo PIN hauv nws. Cov ntaub ntawv siv: Qhov loj me, cov duab, thiab kev siv cov khoom sib txuas sib txawv heev, yog li cov khoom siv yas siv kuj muaj ntau yam. Thaum tsim cov connectors, kub tsis kam, fluidity, mechanical zog, hluav taws xob kev ua tau zoo, kev tiv thaiv ib puag ncig, thiab cov nqi yuav tsum raug xam tias yog Factors los xaiv qhov tsim nyog engineering plastics. Feem ntau siv engineering plastics yog LCP, HTN, NYLON46, PBT, PA4T, PA10T, PC, thiab lwm yam.
Vim tias LCP nws tus kheej muaj cov nplaim hluav taws kub hnyiab, nws tuaj yeem ncav cuag UL94 V-0 qib yam tsis ntxiv cov nplaim hluav taws kub, yog li LCP tuaj yeem ua tau raws li RoHS thiab halogen-dawb cov cai. HTN, PA4T, thiab PA9T yog cov ntaub ntawv nylon, thiab cov nplaim hluav taws yuav tsum tau muab ntxiv kom ua tiav UL94 V-Class 0, cov tuam txhab ntawm HTN, PA4T, thiab PA10T tshaj tawm tias cov ntaub ntawv ntawm cov qib cuam tshuam siv halogen-dawb. nplaim retardants.
