Sib nqus suction adapter, qhov no yog qhov subtlety ntawm magnetic suction
Sib nqus MagSafe ib txwm yog txoj hauv kev zoo rau kev sib cuam tshuam, txwv tsis pub Apple yuav tsis rov qab los rau MagSafe 3 sib nqus them tom qab ob peb xyoos. Qhov tseeb, nyob rau hauv kev lag luam, kev sib tham sib hom ntawm kev sib nqus them nyiaj ib txwm muaj. Yav dhau los, muaj Apple's MagSafe sib nqus them nyiaj rau MacBook laptops, thiab tom qab ntawd 3C hom tseem ceeb tau pib cov khoom siv sib nqus, cov khoom sib nqus, thiab lwm yam.
Xyoo 2020, ntawm kev tshaj tawm ntawm iPhone 12, Apple muab MagSafe sib nqus them nyiaj, uas tau raug tshem tawm ntau xyoo, ntawm iPhone 12 hauv daim ntawv them nyiaj wireless. Rau Mac laptops, MagSafe sib nqus them nyiaj tiv thaiv lub cable los ntawm rub lub computer mus rau hauv av. Tab sis tsis muaj ob peb Macs uas tsuas yog nqa USB-C interface. Cov phau ntawv no tseem tuaj yeem ua tiav kev them nyiaj sib nqus hauv lwm txoj kev, uas yog USB-C MagSafe.
cov khoom piav qhia
24pin puv-function thunderbolt 4 magnetic taub hau
Qhov no adapter muaj nyob rau hauv ncaj thiab angled versions. Ob qho tib si tsuas yog sib txawv hauv kev coj ua, thiab lwm yam kev ua yeeb yam zoo ib yam.

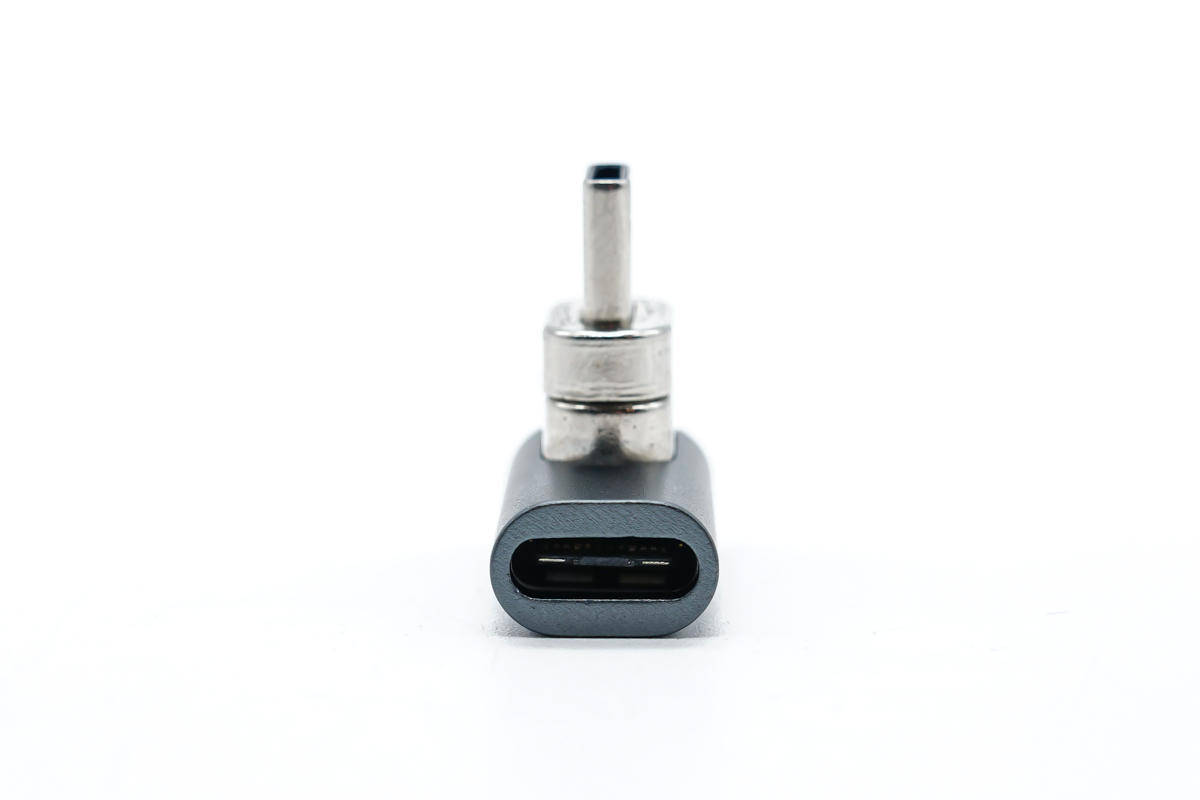

Cov tswv yim kawg ntawm lub adapter txais yuav USB-C poj niam chaw nres nkoj rau kev txuas cables.

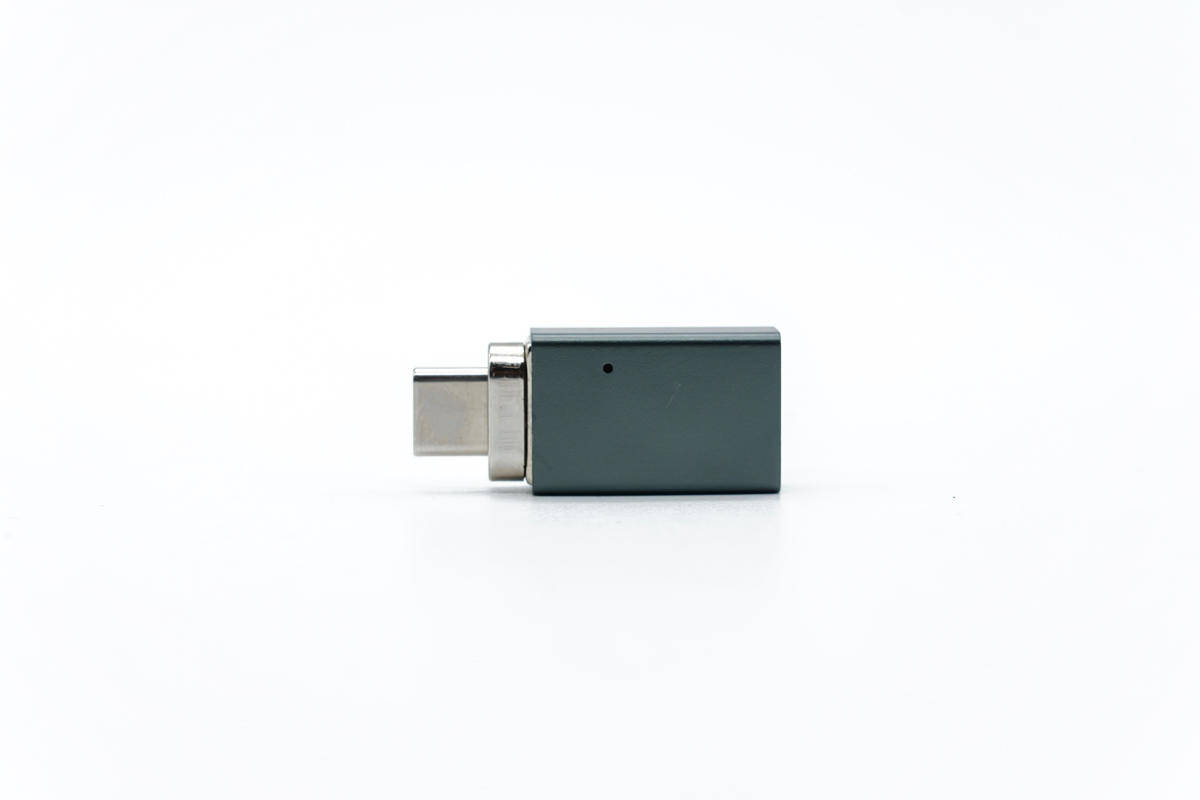

Muaj qhov taw qhia lub teeb nyob rau sab, thiab lub logo ntawm cov ntaub ntawv ceev ceev 40G xob laim kuj luam tawm.

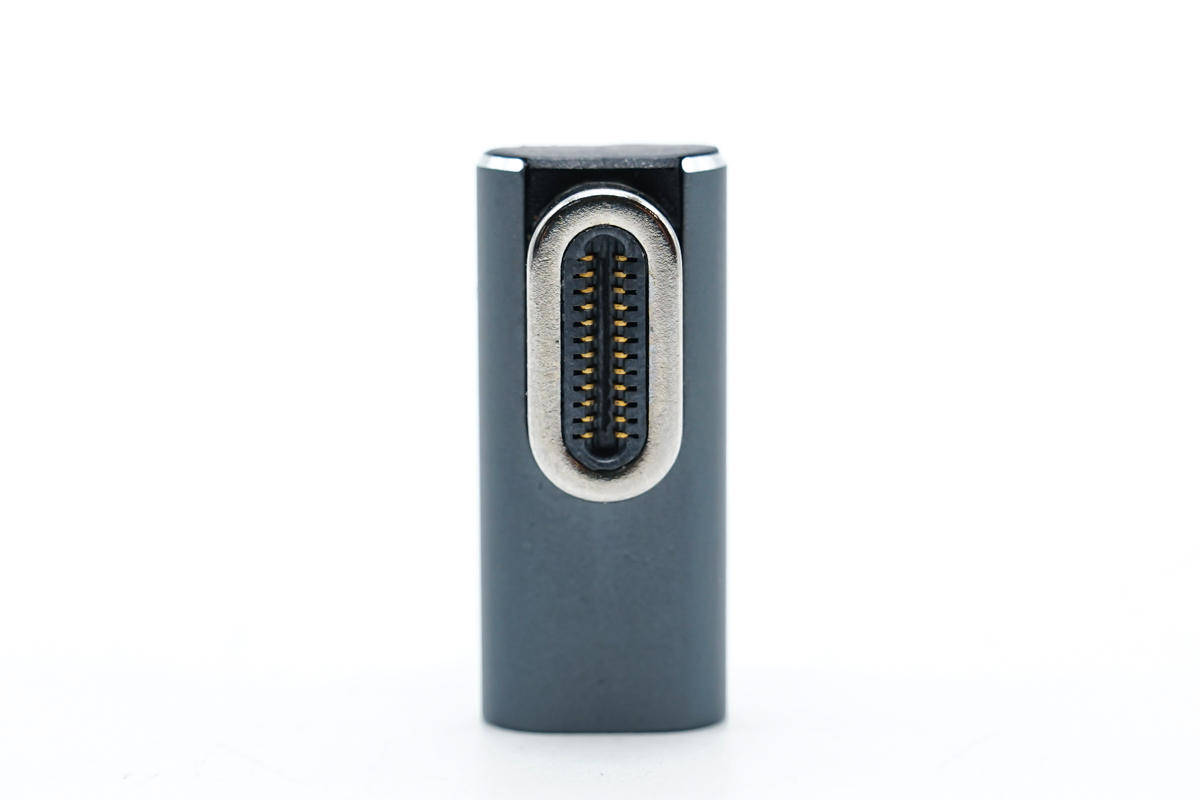

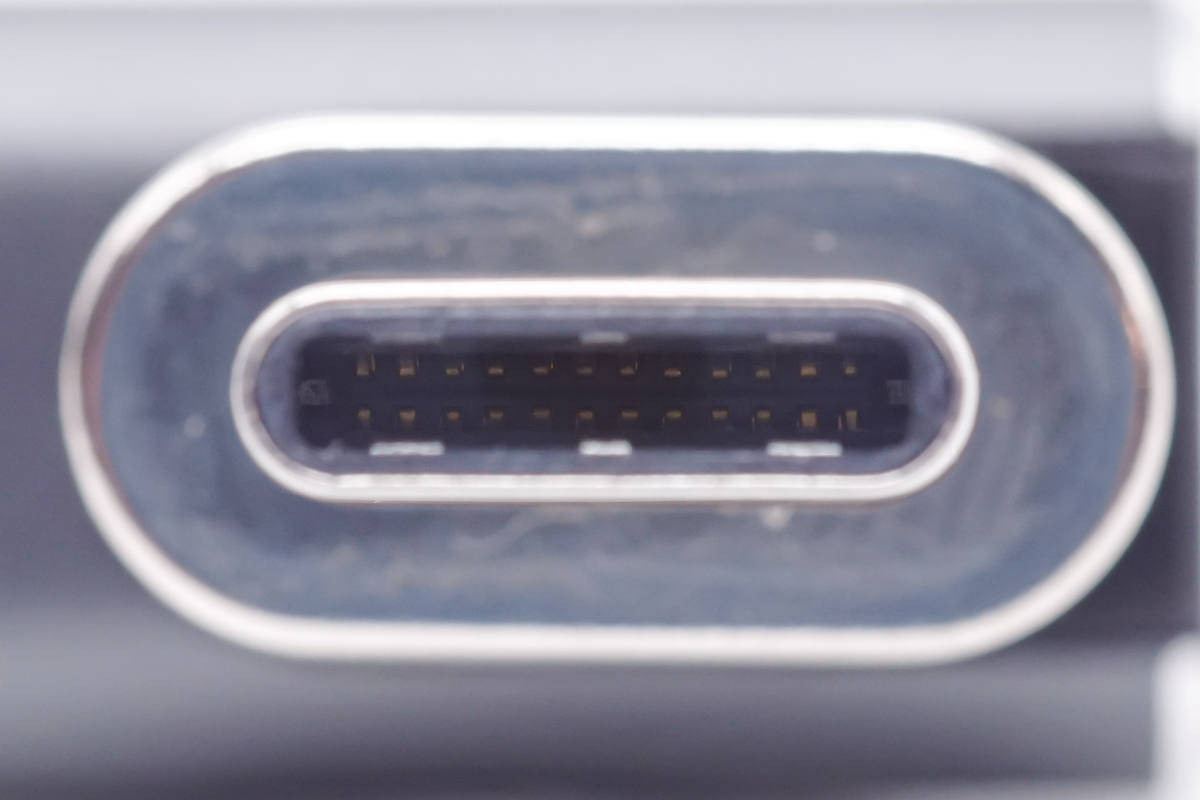

Cov ntsiab lus sab hauv ntawm USB-C txiv neej kawg yog tsim los rau tag nrho cov pins.

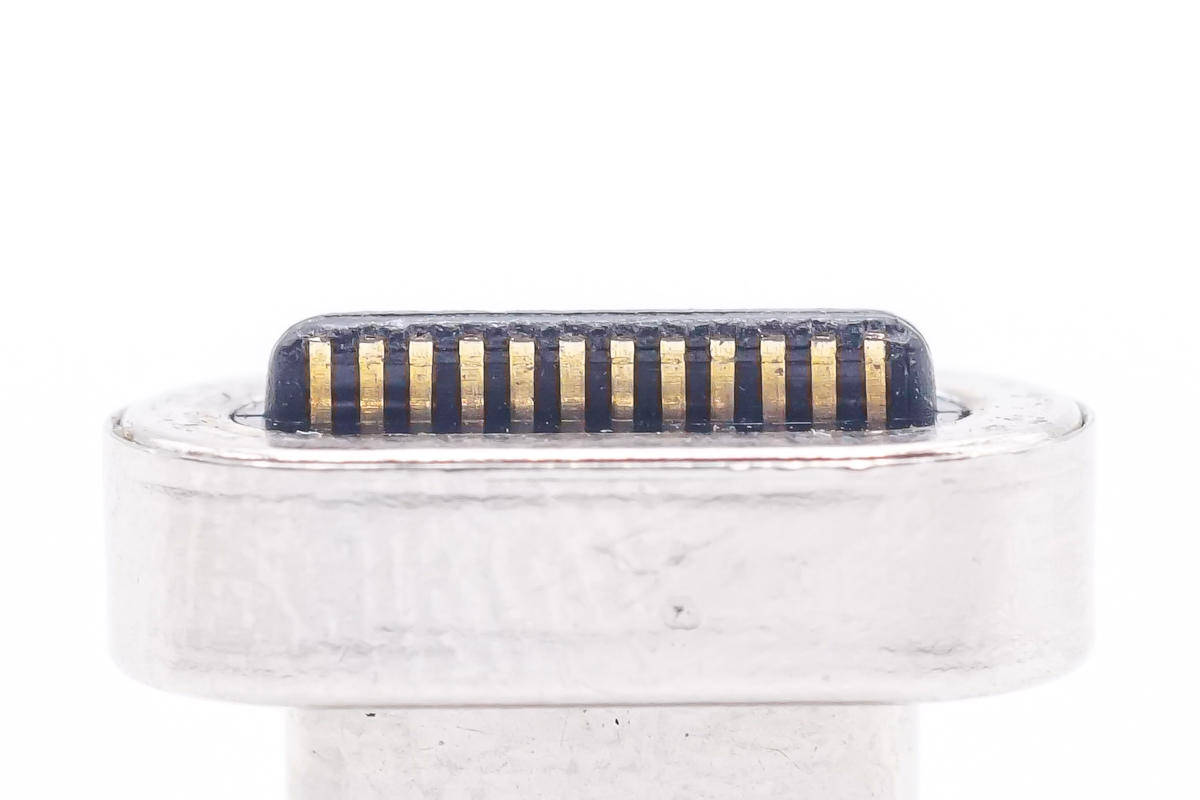

Tshem tawm lub connector, thiab kev sib txuas kuj tseem tsim nrog tag nrho cov pins.
Close-up ntawm lwm kawg.
Qhov sib nqus adapter ntawm lub luj tshib qauv hnyav tsuas yog 4.9g.
Qhov hnyav ntawm lub taub hau ncaj yog txog 5g. Yog tias qhov yuam kev raug suav, nws tuaj yeem pom tias qhov hnyav ntawm ob lub adapters yog tib yam.

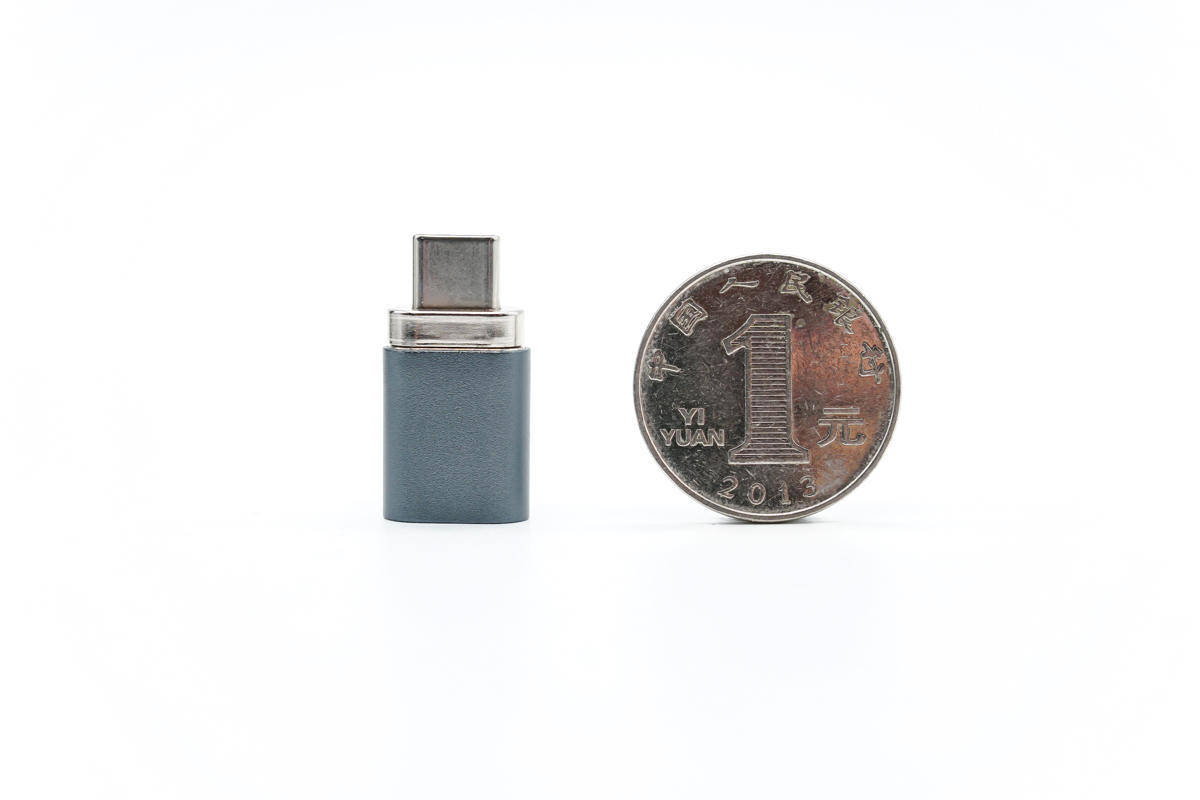

Raws li qhov tshwj xeeb loj, ntawm no yog qhov sib piv nrog cov nyiaj npib ib-duas.

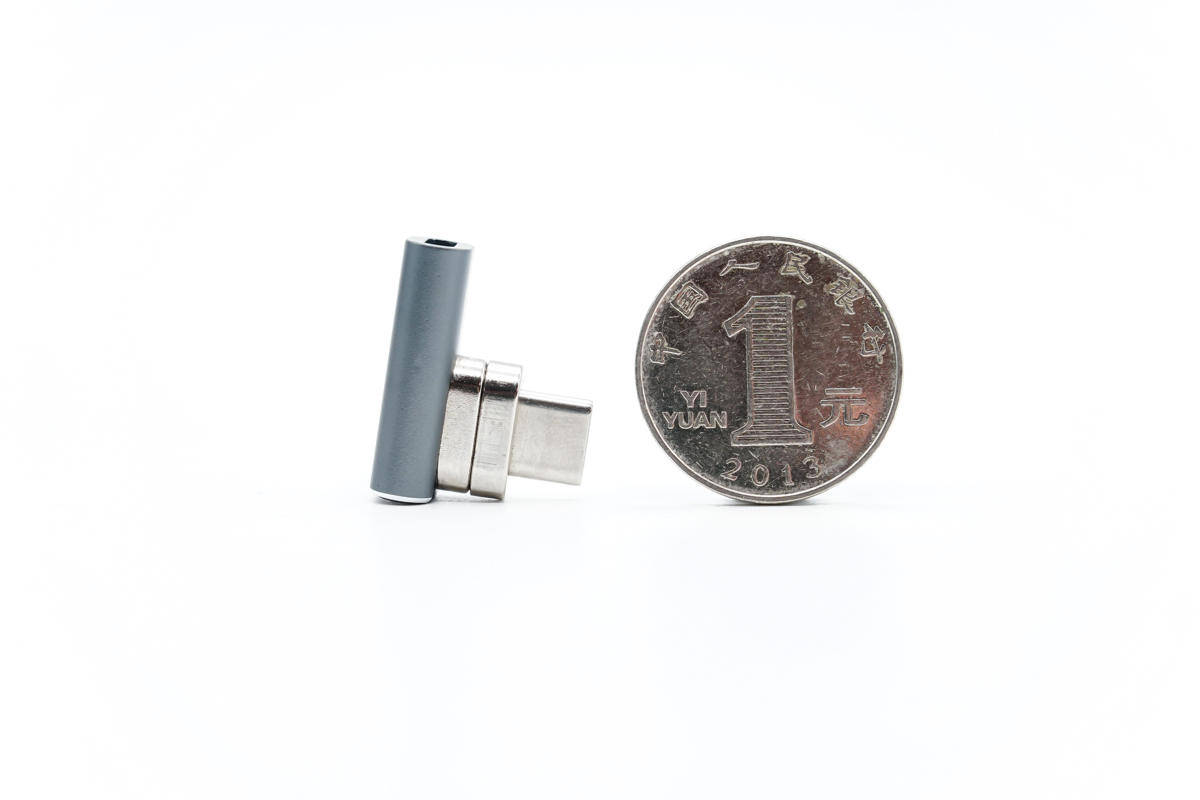

Contrast tus qauv luj tshib nrog ib-duas npib.

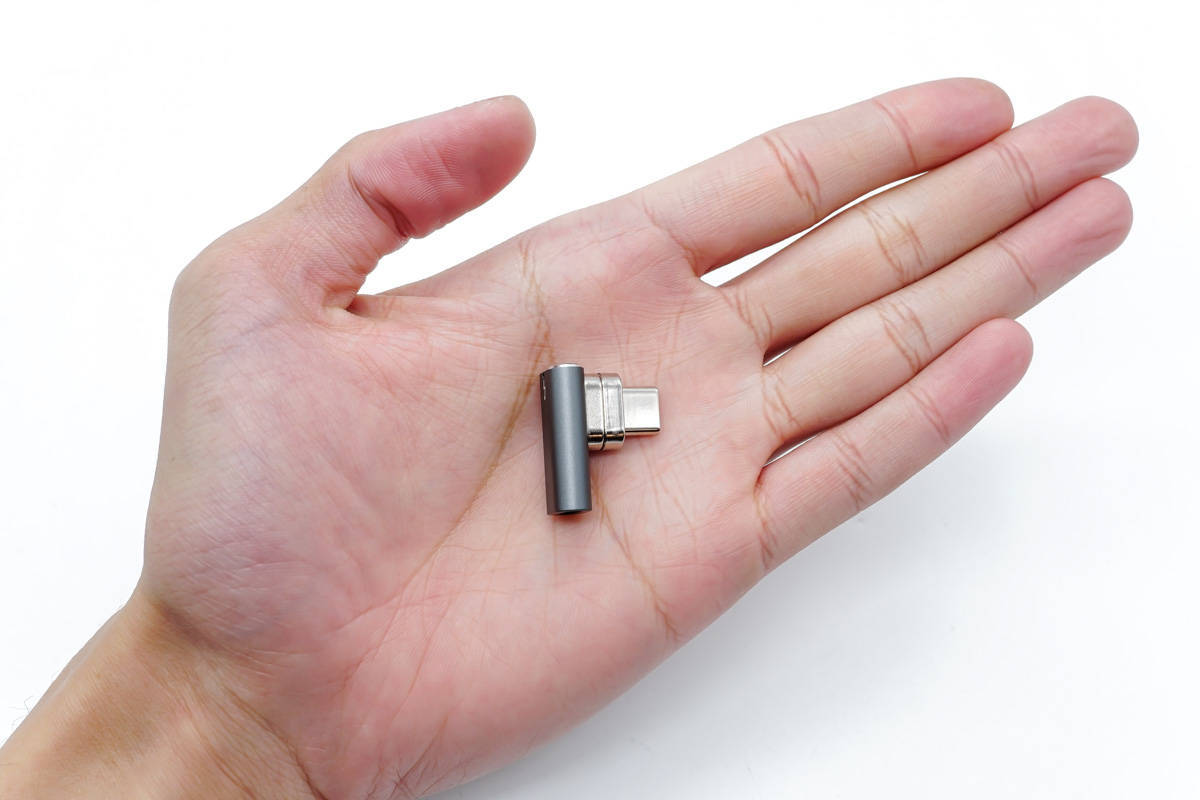

Tsuas yog ib qho me me xwb.
Kev sib nqus adapter tuaj yeem suav tias yog ib ceg ntawm cov xaim, thiab qhov kev sim ntawm cov hlau kuj tseem siv tau rau lub adapter, yog li cov hauv qab no yuav sim cov khoom sib nqus adapter los ntawm peb qhov loj ntawm kev them nyiaj, cov ntaub ntawv xa mus, thiab kev sib kis video.

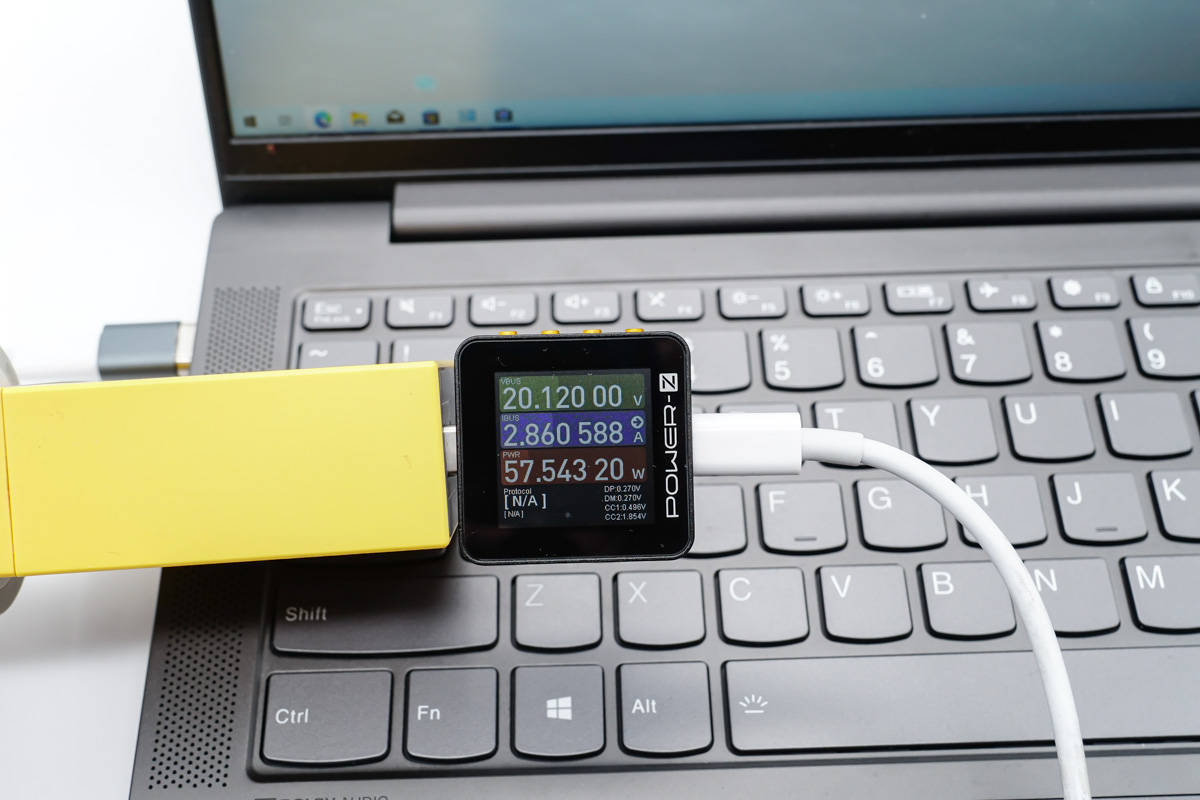

Ua ntej tshaj plaws, cia peb saib ntawm kev them nyiaj ceev. Siv lub charger 100W nrog lub taub hau ncaj nraim sib nqus kom them lub laptop nrog lub zog ntawm 20.12V 2.86A 57.54W.

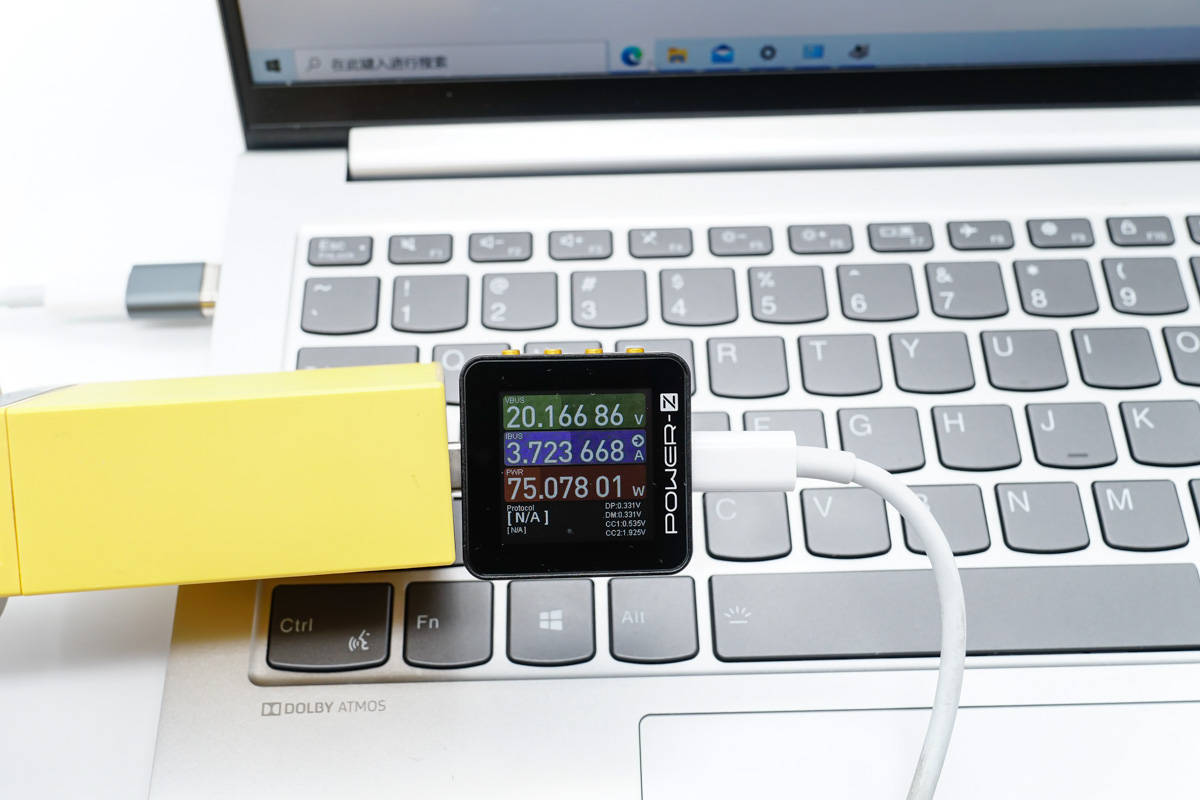

Hauv tib qhov xwm txheej, Lenovo Xiaoxin Pro 14 2021 raug them nrog lub zog ntawm 20.16V 3.72A 75.07W.

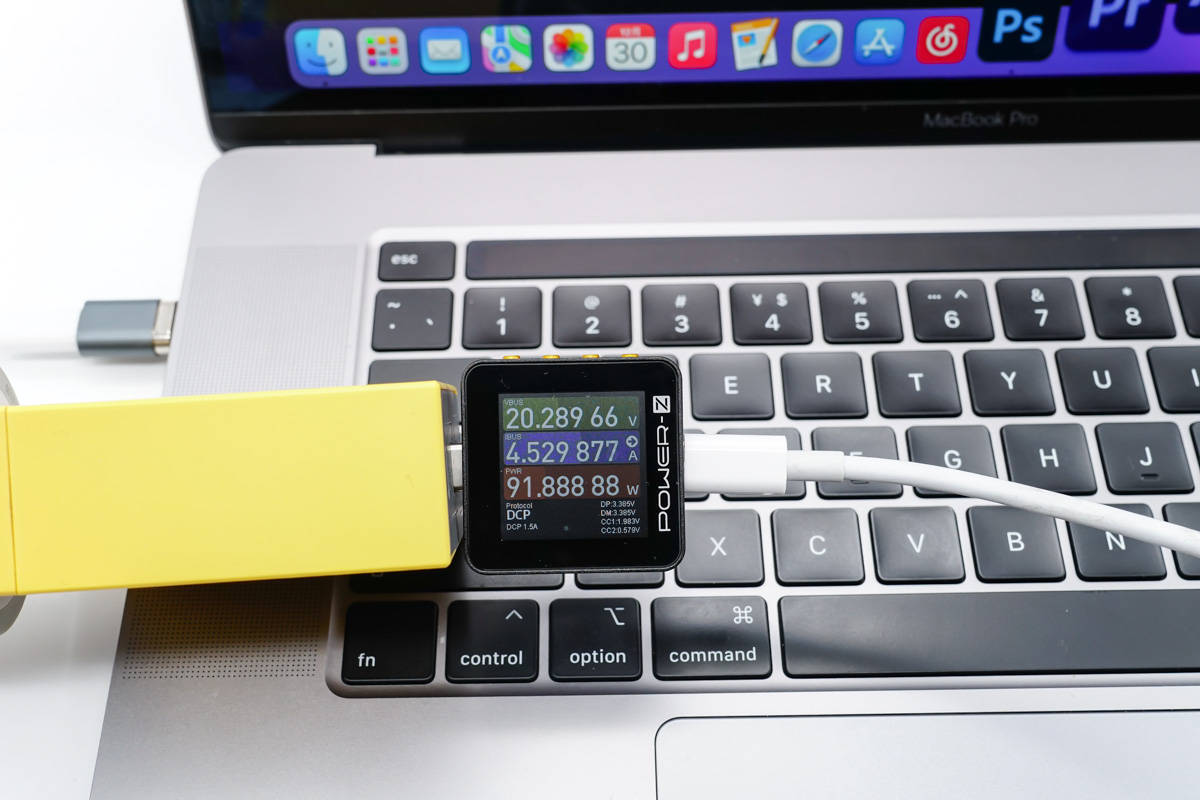

Them lub MacBook Pro 16-inch nrog 20.28V 4.52A 91.88W.
Txawm hais tias tus qauv siv lub luj tshib, nws tseem tuaj yeem ncav cuag lub zog them ceev ntawm 90W ntxiv, thiab ob qho tib si adapters txhawb nqa 100W ceev them.

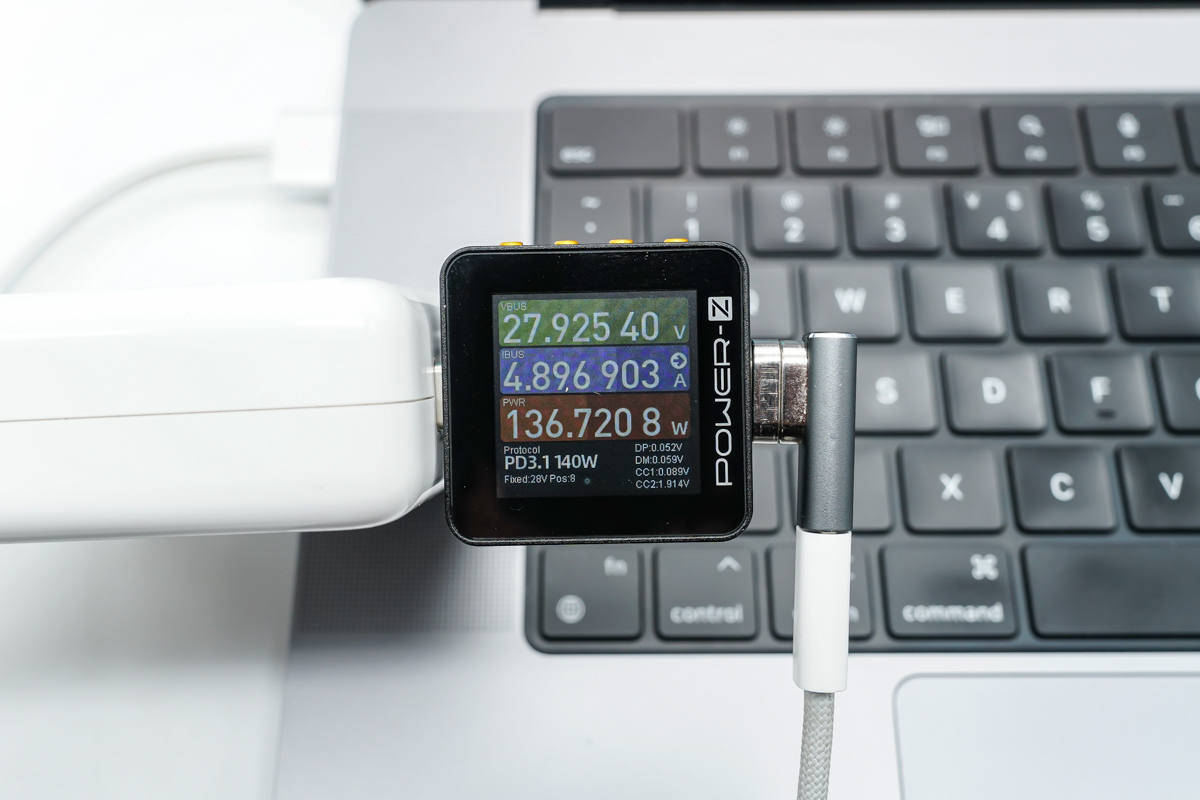

Txawm tias ... nws kuj txhawb nqa 140W ceev them, thiab lub adapter txuas nrog Apple lub 140W gallium nitride charger thiab MagSafe 3 ceev them cable. Lub sijhawm no, lub zog them yog 28V thiab lub zog yog 135.72W.
Yog tias koj siv C rau C ceev ceev them cable kom them lub MacBook, koj yuav tsum txuas lub cable rau USB-C chaw nres nkoj ntawm phau ntawv. Yog tias lub cable raug rub, nws tseem yuav cuam tshuam rau lub khoos phis tawj laptop.
Txawm li cas los xij, yog tias nws tau nruab nrog lub adapter, koj tuaj yeem tso siab rau cov nyhuv ntawm cov hlau nplaum nqus kom ua tiav kev them nyiaj. Txawm hais tias cov hlau raug rub, nws yuav poob rau lub sijhawm, thiab lub laptop yuav tsis koom nrog.
Rau MacBook uas tsuas muaj USB-C chaw nres nkoj thoob plaws lub cev, qhov kev ncua deb ntawm ob lub USB-C chaw nres nkoj ntawm ib sab tsis zoo heev. Koj puas tsoo rau hauv ib qho chaw nres nkoj siv txhua hnub, thiab lwm qhov chaw nres nkoj tsis tuaj yeem txuas nrog ib txwm? kab.
Tom qab qhov kev sim tiag tiag, nws tau pom tias tsis muaj occlusion. Qhov kev nthuav dav no tau ua haujlwm zoo heev, thiab ob lub sib nqus hlau nplaum tuaj yeem siv tib lub sijhawm.

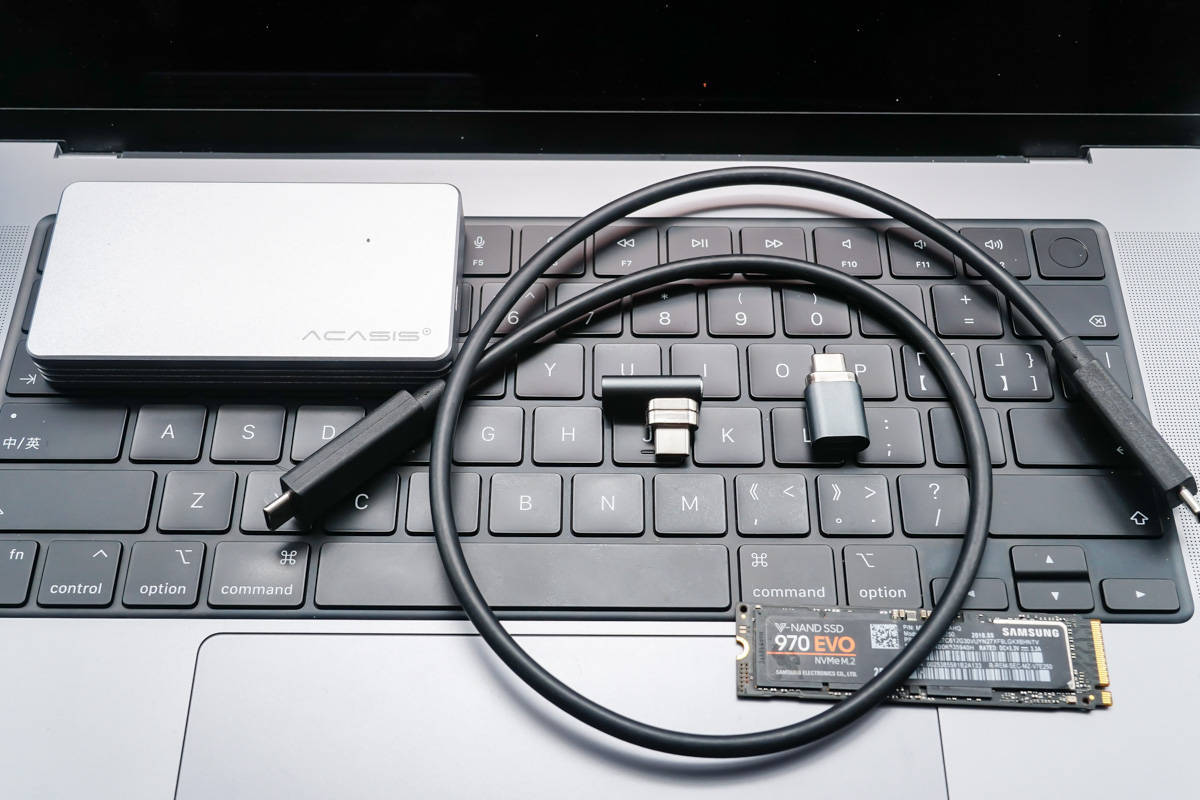

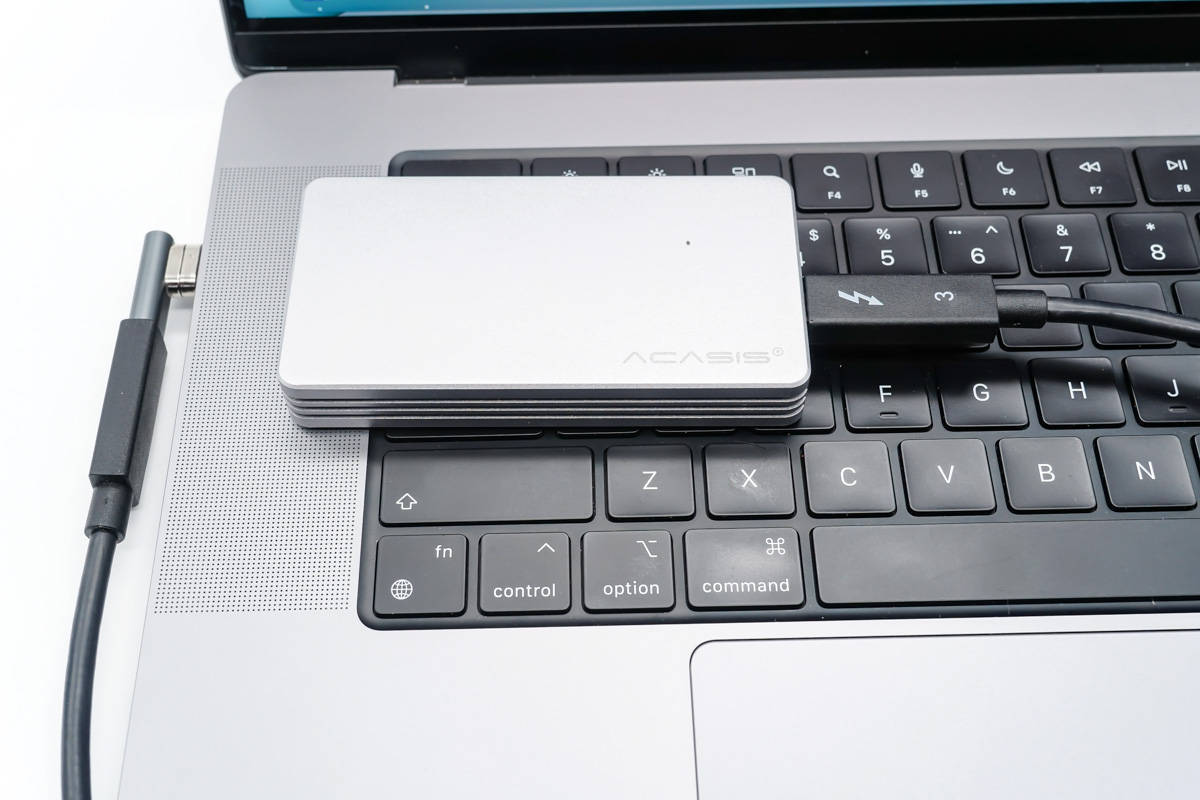

Tom ntej no, cia peb saib cov ntaub ntawv kis tau tus mob. Cov cuab yeej siv yog Samsung 970 EVO solid-state drive, Thunderbolt 3 hard disk box, Thunderbolt 3 cov ntaub ntawv cable, thiab ob lub adapters.
Tom qab txuas txhua yam khoom, ua tib zoo saib ntawm kev sib kis ceev.
Siv Disk Speed Test ntawm MacBook Pro los ntsuas qhov kev hloov ceev, ntsuas kev sau nrawm yog 1457.6MB / s thiab nyeem nrawm yog 2855.4MB / s. (Qhov tseeb sau ceev ntawm Samsung X5 hard drive ntawm no yog 1700MB / s, thiab nyeem ceev yog 2400MB / s)
Tom ntej no, cia peb saib cov video xa mus, txuas Thunderbolt 3 cov ntaub ntawv cable rau Dell U2720QM 4K saib los ntawm lub adapter.
Tom qab txuas lub MacBook Pro, hu rau qhov tsis muaj ntawm cov zaub. Lub sijhawm no, qhov kev daws teeb meem ntawm cov zaub yog 3840x2160, thiab ntsuas qhov ntsuas tau txhawb nqa 4K 60Hz video xa mus. Txawm li cas los xij, raws li LINKPO cov lus qhia ua ntej, lub adapter txhawb nqa 8K 60Hz daws teeb meem video xa mus, tab sis tam sim no, kuv tsis muaj 8K saib hauv kuv txhais tes, yog li kuv tsis tuaj yeem sim nws rau lub sijhawm tam sim no.
Kuv ntseeg tias ntau tus neeg siv uas siv MacBook laptops yuav ntau dua lossis tsawg dua npaj Thunderbolt 3 / USB4 cable, uas tuaj yeem paub txog peb txoj haujlwm ntawm kev them nyiaj, kev xa cov ntaub ntawv, thiab kev sib kis video nrog ib lub cable, thiab ob lub sib nqus adapters ntawm LINKPO txhawb Thunderbolt Transmission. raws tu qauv.
Nws txhawb 100W them ceev ceev, video kis tau tus mob, thiab cov ntaub ntawv ceev ceev. Ntawm qhov chaw ntawm qhov kev ua tau zoo tib yam, nws tuaj yeem txuas nrog sib nqus nqus, uas tuaj yeem hais tias yog icing ntawm lub ncuav mog qab zib.
Summary of charging head network
Rau cov neeg siv MacBook Pro, tsis hais seb puas muaj MagSafe sib nqus them, USB-C interface tuaj yeem siv USB-C sib nqus adapter lossis USB-C sib nqus adapter. Ntau yam ntau dua li Apple's MagSafe, txuag koj cov teeb meem ntawm kev nqa ntau lub cables. Raws li LINKPO cov lus qhia ua haujlwm, piv rau kev them nyiaj ntawm MagSafe3 thiab LINKPO lub tshuab nqus hlau nqus, Apple tus thawj MagSafe3 tau them tag nrho hauv 78 feeb, thaum LINKPO tsuas yog siv sijhawm 96 feeb kom them tag nrho, thiab muaj cov yeeb yaj kiab thiab cov ntaub ntawv xa mus.

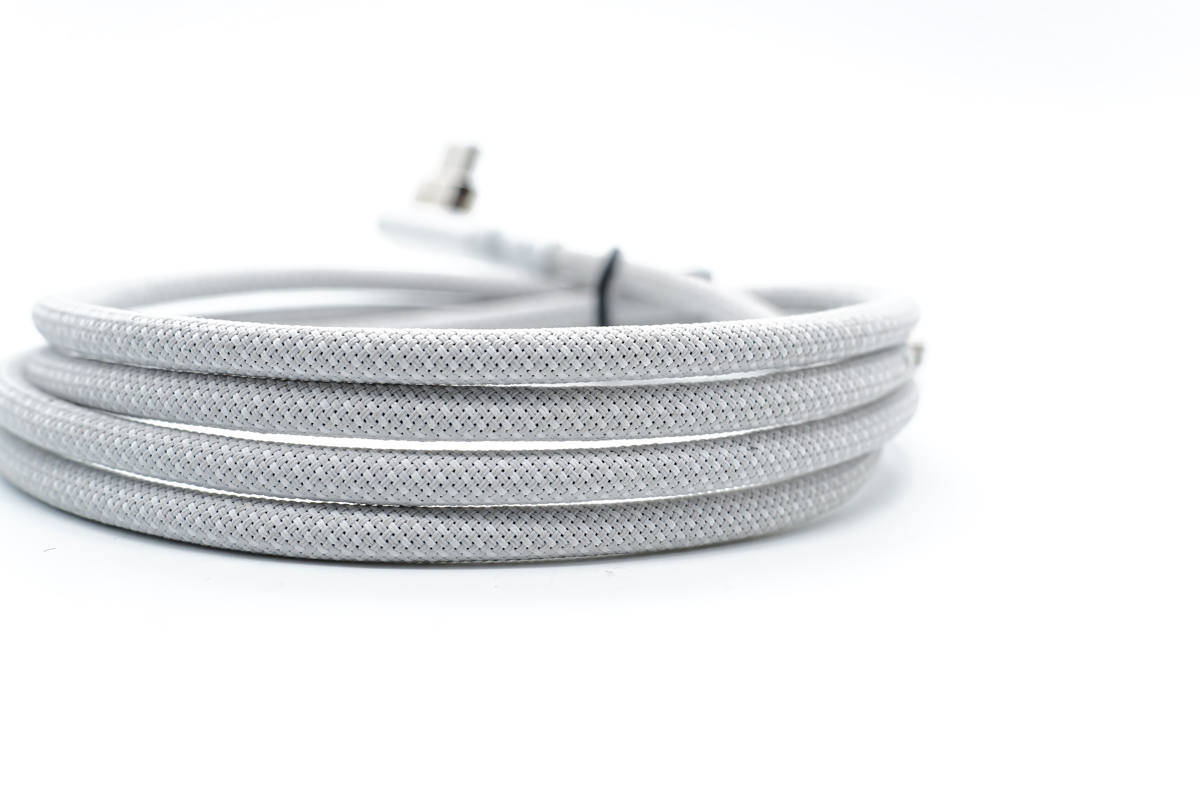

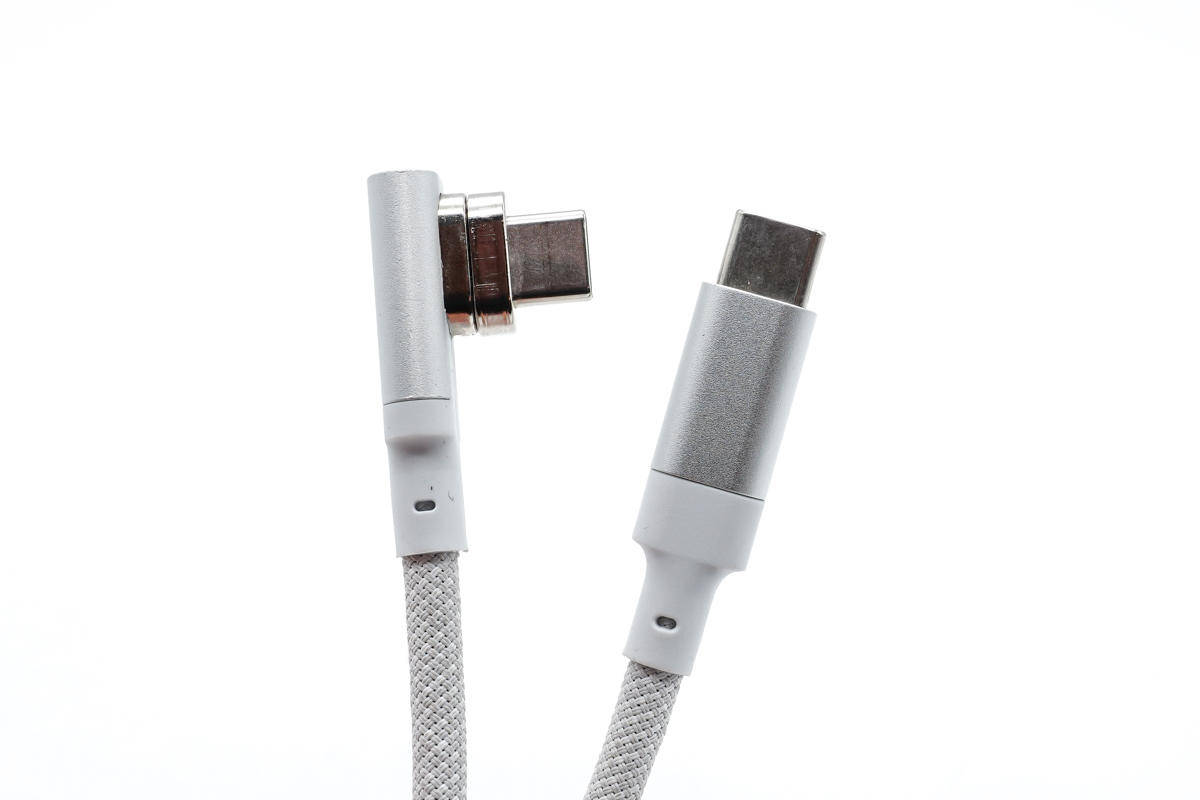

Lub sijhawm no, peb tau tshaj tawm cov khoom siv hluav taws xob sib nqus tshiab rau cov khoom siv hluav taws xob nrog USB-C interface, tshwj xeeb tshaj yog MacBook, C rau C ncaj, C rau C luj tshib, C rau C tag nrho cov ntaub ntawv cable, C rau C Muaj plaub yam khoom. nyob rau hauv txoj kab ncaj nraim, thiab thawj peb C rau C cov khoom lag luam txhua tus txhawb nqa kev sib kis ntawm xob laim, uas tsim nyog rau kev siv sib txawv. Thawj peb tus qauv yog txhua hom C rau C. Nyob rau hauv qhov tseeb ntsuas, lawv txhawb 140W PD ceev them, 4K 60Hz video kis tau tus mob, thiab xob laim cov ntaub ntawv kis tau tus mob. Lawv me me tab sis muaj zog. Tsuas yog ib yam uas yuav tsum tau hais, lub adapter yuav tsum tau ceev faj thaum disassemble nws ntawm lub computer. Vim yog lub zog me me, nws yuav tsum tau ua tib zoo disassembled raws li cov kev taw qhia ntawm lub connector kom tsis txhob cais cov rau tes.
