Yuav siv Pogo tus pin li cas?
Kev taw qhia yooj yim ntawm POGO PIN connector

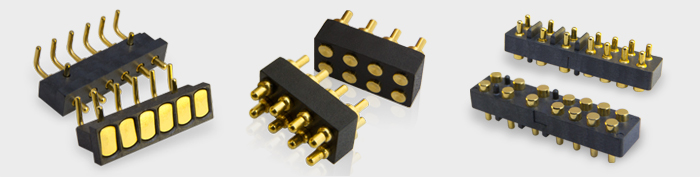

Lub Pogo Pin connector yog lub caij nplooj ntoos hlav-hom kev sojntsuam tsim los ntawm riveting plaub yam tseem ceeb ntawm ib rab koob (Plunger), rab koob (Tube), lub caij nplooj ntoos hlav (Lub Caij Nplooj Ntoos Hlav), thiab cov tub ntxhais roj hmab (Lub Tsev) los ntawm cov khoom siv siab. Nws tseem hu ua pogo pin, Caij nplooj ntoos hlav thimble, caij nplooj ntoos hlav sojntsuam, Caij nplooj ntoos hlav Loaded, PogoPin connector. Hauv qab ntawm Pogo Pin' s Plunger feem ntau yog ib qho qauv ntawm qhov chaw inclined. Kev ua haujlwm ntawm cov txheej txheem inclined yog los xyuas kom meej tias Pogo Pin khaws cov koob (Plunger) nyob rau hauv kev sib cuag nrog lub puab phab ntsa ntawm lub koob raj (Tube) thaum lub sij hawm ua hauj lwm kom cov tam sim no mas dhau los ntawm kub-plated koob (Plunger) thiab rab koob. (Tube) kom muaj kev ruaj ntseg thiab tsis tshua muaj impedance ntawm Pogo Pin.
Peb muab koj cov khoom lag luam Pogo Pin. Hauv kev lag luam connector, pogo pin yog ib qho kev sib txuas tshwj xeeb. Ob peb xyoos dhau los no, cov cuab yeej siv tau zoo no tau lees paub los ntawm qee cov tuam txhab nto moo thoob ntiaj teb thiab siv tau zoo hauv lawv ntau tshaj li ib puas khoom siv hluav taws xob, xws li lub xov tooj ntawm tes roj teeb, kav hlau txais xov sib txuas, GPS qhov chaw, thiab khoos phis tawj laptop. , Cov cuab yeej ua yeeb yaj kiab, teeb pom kev sab nraum zoov, lub mloog pob ntseg, xov tooj cua txais, thiab lwm yam.
POGO PIN CONNECTOR BASIC PARAMETERS
Pogo tus pin (Plunger): tooj dag kub-plated (C3604), lub thickness ntawm cov electroplated txheej nws txawv nrog ntau daim ntaub ntawv, feem ntau, npib tsib xee-plated 1.25 ~ 2.5um (hloov mus rau 50 ~ 100u"), kub- plated 0.125um ~ 0.5um (hloov mus rau 5u "~ 20u").
chim: tooj dag kub-plated (C3604), lub thickness ntawm electroplated txheej yog txawv rau txawv daim ntaub ntawv, feem ntau, npib tsib xee-plated 1.25 ~ 2.5um (hloov mus rau 50 ~ 100u"), kub-plated 0.125um ~ 0.25um (hloov mus rau 5u "~ 10u").
Caij nplooj ntoos hlav: stainless hlau (SUS304) los yog piano hlau hlau
Housing: PA46, PA9T, HTN, LCP (cov khoom siv tsis muaj halogen, qhov ntsuas hluav taws kub UL94V-0)
Npog (CAP): PA46, PA9T, HTN, LCP (cov khoom tsis muaj halogen, ntsuas hluav taws kub UL94V-0)
POGO PIN CONNECTOR PRODUCT SPECIFICATION
Qhov zoo ntawm POGO PIN CONNECTOR
IPX6-IPX7 qib waterproof tsim
Daim ntawv me me
Kub-kub kuj
Corrosion kuj
Muab kev tsim qauv tsim
Daim ntawv thov POGO PIN connector
