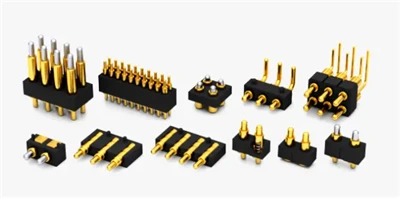

Kev taw qhia yooj yim rau POGO PIN Connectors
POGO PIN connectors (caij nplooj ntoos hlav-loaded connectors) yog cov precision txuas cov khoom siv uas siv lub caij nplooj ntoos hlav sab hauv kom ua tiav kev sib cuag. Lawv lub npe los ntawm lawv cov tsos thiab cov hauv paus ntsiab lus ua haujlwm, uas zoo li tus menyuam yaus cov khoom ua si "pogo stick." Lub connector muaj lub caij nplooj ntoos hlav precision uas compresses nyob rau hauv lub siab thiab muab kev sib cuag quab yuam, yog li ua kom ruaj khov thiab txhim khu kev qha hluav taws xob sib txuas.
I. Core Structure & Txoj Cai Ua Haujlwm
Cov qauv hauv paus ntawm POGO PIN muaj peb qhov tseem ceeb:
| Cheebtsam | Khoom siv | Muaj nuj nqi |
|---|---|---|
| chim | tooj dag, tooj liab alloy, los yog stainless hlau | Sab nrauv vaj tse, muab kev taw qhia thiab tuav |
| Plunger | tooj dag, beryllium tooj liab, los yog stainless hlau | Kev sib cuag kawg, feem ntau siv cov duab tapered los yog pob los txo qhov ntxig / rho tawm quab yuam |
| Caij nplooj ntoos hlav | Stainless hlau, suab paj nruag hlau, los yog beryllium tooj liab | Muab kev tiv tauj ruaj khov |
Txoj Cai Ua Haujlwm: Thaum lub plunger tiv tauj lub mating ncoo, lub caij nplooj ntoos hlav sab hauv compresses thiab tsim kom muaj zog rov qab, ua kom lub plunger nyob rau hauv tas li lub siab tiv thaiv qhov chaw tiv tauj. Qhov no tsim kom muaj kev tiv thaiv qis, txhim khu kev qha hluav taws xob. Lub caij nplooj ntoos hlav-loaded mechanism haum rau thermal expansion / contraction thiab vibrations / shocks nyob rau hauv ib puag ncig dynamic.
II. Qhov Zoo Tshaj Plaws
POGO PIN connectors tau siv dav hauv cov khoom siv hluav taws xob niaj hnub vim yog cov txiaj ntsig tseem ceeb no:
Lub neej ua haujlwm ntev: 10,000 txog 100,000 mating voj voog; high-end khoom tuaj yeem ncav cuag 1 lab lub voj voog.
Me me & qhov chaw txuag: Txoj kab uas hla tuaj yeem qis li 0.4 hli, suab mus rau 0.8 hli - zoo tagnrho rau cov khoom siv hluav taws xob me me.
Kev sib cuag tsis tu ncua: Lub caij nplooj ntoos hlav mechanism nws tus kheej-aligns thiab compensates rau tolerances, tuav ruaj khov kev twb kev txuas nyob rau hauv vibration, misalignment, los yog kub hloov.
Kev ntxuav tus kheej: Kev sib txhuam ntawm lub plunger thiab kev sib cuag lub ncoo thaum lub sij hawm mating tshem tawm cov oxides saum npoo, txhim kho kev sib cuag.
Yooj yim tsim & tus nqi qis: Tsis xav tau kev cai molding; yooj yim rau customize qhov ntev, duab, thiab kev ua tau zoo specs.
III. Lub ntsiab tsis zoo
POGO PINs kuj muaj qee qhov kev txwv:
High precision yuav tsum tau: Kev tsim khoom raug yog qhov tseem ceeb; kev sib txawv me me tuaj yeem ua rau muaj qhov tsis xws luag.
rhiab heev rau cov kab mob: Qhov chaw tiv tauj tsis txav thaum lub sij hawm compression; hmoov av los yog txawv teb chaws hais nyob rau saum npoo yuav ua rau kev twb kev txuas tsis ua hauj lwm.
Thaum tshav kub kub tsim ntawm high tam sim no: Under sustained high current (e.g., >5 A), pom qhov kub thiab txias tuaj yeem tshwm sim.
IV. Ntsiab Hluav Taws Xob & Mechanical Parameters
Cov yam ntxwv tsis zoo rau tus qauv POGO PINs (saib rau cov ntaub ntawv cov khoom lag luam kom muaj nuj nqis):
| Parameter | Hom kab mob |
|---|---|
| Rated Tam sim no | 1 A ~ 5 A rau tus pin; high-tam sim no hom mus txog 5 A ~ 60 A |
| Rated Voltage | Feem ntau AC / DC 12 V |
| Tiv tauj Resistance | Tsawg dua lossis sib npaug li 30 mΩ ~ 100 mΩ |
| Rwb thaiv tsev Resistance | Ntau dua lossis sib npaug rau 100 MΩ (500 VDC) |
| Dielectric Withstanding Voltage | AC 500V (1 feeb, tsis muaj kev puas tsuaj) |
| Ua haujlwm kub | -40℃~ +85 degree; tub rog qib -40℃~ +125 degree |
| Mating Life (cycles) | 5,000 ~ 100, 000+ cycles |
| Kev tiv thaiv ntsuas | IP67 / IP68 (nrog cov qauv sealing) |
V. Hom Lub Npe
POGO PINs tuaj yeem raug cais los ntawm cov duab thiab tsim sab hauv.
1. Los ntawm cov duab / mounting style:
Pav ca-hauv qab / PCB-mount / Txoj cai-lub kaum sab xis khoov
Ob-kawg / Threaded / Hlau-soldering / Sab-qhov
2. Los ntawm cov qauv sab hauv:
Rov qab-drilled: Smooth compression, yooj yim los tsim, ntev stroke - dav siv rau cov teeb liab kis tau tus mob.
Beveled-nto: Tau nqa 2 A ~ 3 A - haum rau nruab nrab tam sim no.
Beveled + pob-ntsia / hla lub qhov / Tail-plug / Ob-kawg: Rau high-tam sim no, high-frequency, los yog tshwj xeeb daim ntawv thov.
3. Los ntawm txoj kev mounting:
SMT / SMD hom: Nto mount, zoo tagnrho rau compact designs.
Lub qhov taub solder homTug: PCB los ntawm qhov-qhov soldering.
Hom ob-kawg: Kev sib cuag ntawm ob qhov kawg, siv los txuas ob qhov hluav taws xob cuam tshuam.
VI. Daim ntawv thov teb
| Teb | Tej kev siv |
|---|---|
| Consumer Electronics | Smartphone roj teeb kev sib txuas, TWS earbud charging case, smartwatch magnetic charging, MagSafe interfaces |
| Hnav tau | VR/AR headset charging cradles, smart fitness bands, sports monitoring devices |
| Automotive | BMS fais fab roj teeb voltage / ntsuas kub, ECU module kuaj interfaces, OBD-II kuaj cov chaw nres nkoj |
| Muaj & Kho Mob | ICT / FCT automated test probes, portable patient monitors, handheld POS payment terminals |
| Tshwj xeeb | Aerospace satellite kev sib txuas (kev tiv thaiv hluav taws xob), kev siv hluav taws xob hauv qab dej (IP68 waterproof) |
| Kev xa cov ntaub ntawv | Txhawb cov teeb liab ceev txog li 10 Gbps (USB 3.1 Gen2 / Thunderbolt 3) |
VII. Kev xaiv xaiv
Kev xav tau tam sim no: Rau cov ntawv thov tam sim no, xaiv high-tam sim no tus pins lossis siv ntau tus pins ua ke.
Tiv tauj quab yuam: Feem ntau 50 ~ 300 gf - tshuav nyiaj li cas rau kev nplij siab nrog kev ntseeg siab.
Stroke tsim: Pom zoo kom compression nyob rau hauv 50% ~ 70% ntawm tag nrho cov kev mus los rau kev pom kev ua tau zoo.
Plating: Txheem kub plating txhim kho corrosion kuj thiab conductivity; hnyav lossis muaj kev ntseeg siab ib puag ncig (tub rog, kev kho mob) yuav tsum tau kub dua.
Kev siv ntau zaus: Xaiv coaxial shielded designs kom txo tau crosstalk thiab insertion poob.
Kev tiv thaiv ib puag ncig: Rau qhov chaw sab nraum zoov lossis qhov chaw ntub dej, xaiv cov qauv dej tsis zoo nrog cov qauv sib khi (IP67 / IP68).
Cov ntsiab lus
Nrog rau lawv qhov me me, kev sib cuag ruaj khov, thiab lub neej ntev, POGO PIN connectors tau dhau los ua qhov kev sib txuas tsis tseem ceeb hauv cov khoom siv hluav taws xob niaj hnub no - los ntawm cov neeg siv khoom siv rau cov kev siv aerospace siab.
